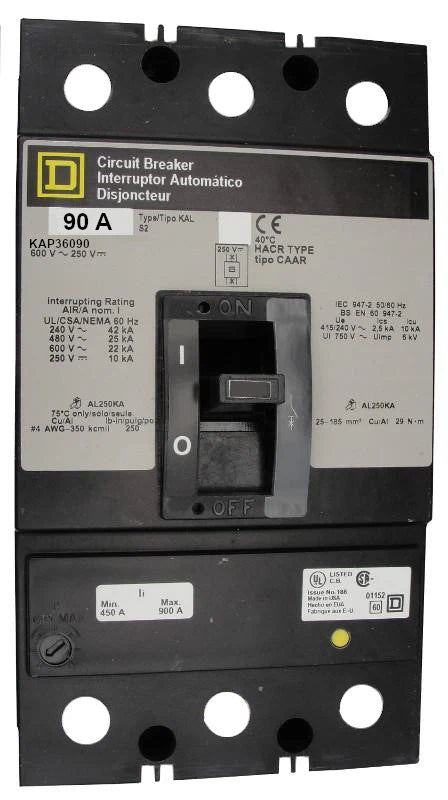

Square-D KAP36090 90A 3 Pole Thermal Magnetic MCCB – Panel Mounted – 600V AC/DC

The Square-D KAP36090 molded case circuit breaker is designed to deliver reliable and consistent protection in industrial and commercial electrical distribution systems. Built on the KAP frame platform, it features a thermal magnetic non-interchangeable trip unit that ensures effective protection against overload and short-circuit faults. Rated at 90 amperes with a 3-pole configuration, it supports both AC and DC applications while maintaining strong interrupting performance for demanding environments. Its panel-mounted design allows secure installation and seamless integration into switchboards and electrical panels.

Product Specification

• Manufacturer: Square-D
• Model: KAP36090
• Frame Type: KAP
• Rated Current (Amperage): 90A at 40°C
• Number of Poles: 3
• Mounting Type: Panel Mounted
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Trip Setting: 450–900
• Connection Type: Load End Terminals Standard
• Application: Industrial and Commercial Power Distribution

Technical Specification

• Interrupting Capacity:
  • 42 kA @ 240 VAC
  • 25 kA @ 480 VAC
  • 22 kA @ 600 VAC
  • 10 kA @ 250 VDC
• Protection Type: Overload and Short Circuit Protection
• Operating Mechanism: Thermal Magnetic Trip System
• Lug Type: Standard Load End
• Installation Design: Panel Mounted Configuration
• Performance Category: Standard Industrial Duty

Voltage and Ratings

• Rated Operational Voltage: 240 / 480 / 600 VAC
• DC Voltage Rating: 250 VDC
• Maximum Voltage Rating: 600 VAC
• Frequency: 50/60 Hz
• Short Circuit Breaking Capacity: Up to 42 kA

Product Data

• Frame Size: K Frame
• Connection Type: Panel Mounted
• Terminal Type: Load End Standard Lugs
• Installation Type: Panel / Switchgear Integration
• Configuration: 3 Pole MCCB
• Warranty: 1 Year (Applicable for new and certified reconditioned products)
