Square-D KAP36200 200A 3 Pole Thermal Magnetic MCCB – Panel Mounted – 600V AC/DC

The Square-D KAP36200 molded case circuit breaker is designed to provide reliable and consistent protection in industrial and commercial power distribution systems. Built on the KAP frame platform, it incorporates a thermal magnetic non-interchangeable trip unit that ensures effective protection against overload and short-circuit conditions. Rated at 200 amperes with a 3-pole configuration, it supports both AC and DC applications while delivering strong interrupting performance under demanding electrical loads. Its panel-mounted design enables secure installation and efficient integration into switchboards and electrical distribution systems.

Product Specification

• Manufacturer: Square-D
• Model: KAP36200
• Frame Type: KAP
• Rated Current (Amperage): 200A at 40°C
• Number of Poles: 3
• Mounting Type: Panel Mounted
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Trip Setting: 1000–2000
• Connection Type: Load End Terminals Standard
• Application: Industrial and Commercial Power Distribution

Technical Specification

• Interrupting Capacity:
  • 42 kA @ 240 VAC
  • 25 kA @ 480 VAC
  • 22 kA @ 600 VAC
  • 10 kA @ 250 VDC
• Protection Type: Overload and Short Circuit Protection
• Operating Mechanism: Thermal Magnetic Trip System
• Lug Type: Standard Load End
• Installation Design: Panel Mounted Configuration
• Performance Category: Standard Industrial Duty

Voltage and Ratings

• Rated Operational Voltage: 240 / 480 / 600 VAC
• DC Voltage Rating: 250 VDC
• Maximum Voltage Rating: 600 VAC
• Frequency: 50/60 Hz
• Short Circuit Breaking Capacity: Up to 42 kA

Product Data

• Frame Size: K Frame
• Connection Type: Panel Mounted
• Terminal Type: Load End Standard Lugs
• Installation Type: Panel / Switchgear Integration
• Configuration: 3 Pole MCCB
• Warranty: 1 Year (Applicable for new and certified reconditioned products)

Important Note

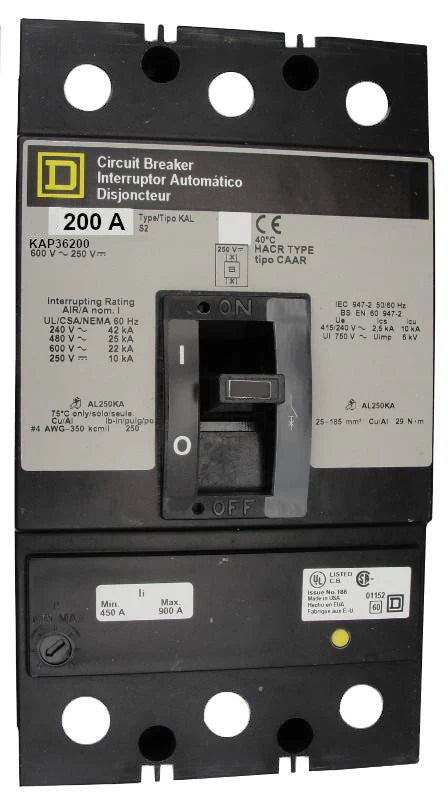

This product image is provided for identification purposes only and may represent a base model. Actual breaker configuration may vary depending on selected accessories or application requirements. Accessories ordered together with the breaker can be installed at no additional cost when complete configuration details are provided during checkout.
