Square-D KC342501212 250A 3 Pole Thermal Magnetic MCCB – Plug-In (I-Line) Mount – 600V AC

The Square-D KC342501212 molded case circuit breaker is engineered for reliable circuit protection in industrial and commercial power distribution systems. Built on the KC I-Line frame platform, this breaker features a thermal magnetic non-interchangeable trip unit that delivers dependable overload and short-circuit protection. Rated at 250 amperes with a 3-pole configuration, it is designed for plug-in installation in I-Line panelboards and switchgear systems. The breaker includes a factory-installed 1A-1B auxiliary switch for enhanced monitoring and control functionality, making it suitable for advanced electrical distribution applications.

Product Specification

• Manufacturer: Square-D
• Model: KC342501212
• Frame Type: KC (I-Line)
• Rated Current (Amperage): 250A at 40°C
• Number of Poles: 3
• Mounting Type: Plug-In (I-Line)
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Trip Setting: 1250–2500
• Auxiliary Component: 1A-1B Auxiliary Switch Installed
• Connection Type: Load End Terminals Standard
• Application: Industrial and Commercial Power Distribution

Technical Specification

• Interrupting Capacity:
  • 100 kA @ 240 VAC
  • 65 kA @ 480 VAC
• Protection Type: Overload and Short Circuit Protection
• Operating Mechanism: Thermal Magnetic Trip System
• Lug Type: Standard Load End
• Installation Design: I-Line Plug-In Configuration
• Performance Category: High Interrupting Duty

Voltage and Ratings

• Rated Operational Voltage: 240 / 480 VAC
• Maximum Voltage Rating: 600 VAC
• Frequency: 50/60 Hz
• Short Circuit Breaking Capacity: Up to 100 kA

Product Data

• Frame Size: K Frame
• Connection Type: Plug-In (I-Line)
• Terminal Type: Load End Standard Lugs
• Installation Type: I-Line Panelboard / Switchgear
• Configuration: 3 Pole MCCB
• Included Accessory: 1A-1B Auxiliary Switch
• Warranty: 1 Year (Applicable for new and certified reconditioned products)

Important Note

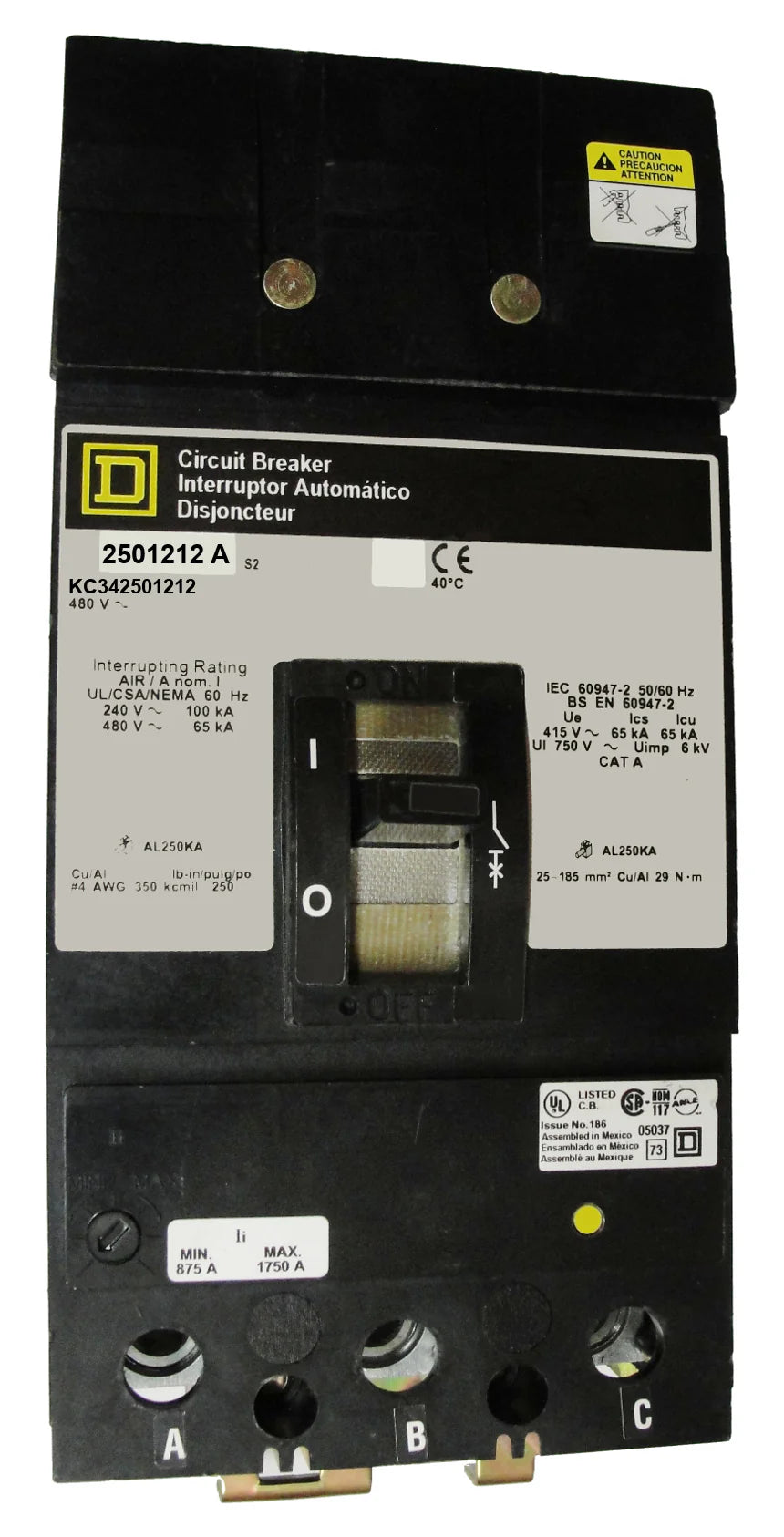

This product image is intended for identification purposes only and may represent a base model. Actual breaker configuration may vary depending on installed accessories or application requirements. Accessories ordered together with the breaker can be installed at no additional cost when complete configuration details are provided during checkout.
