Square D KH36110 110A 3 Pole Molded Case Circuit Breaker – Plug In – 600VAC

The KH36110 by Square D is a K-frame molded case circuit breaker designed for dependable protection in industrial and commercial electrical systems. Equipped with a thermal magnetic non-interchangeable trip unit, this breaker provides reliable overload and short-circuit protection. Its I-Line frame style and plug-in mounting configuration support efficient installation and maintenance, while the high interrupting ratings ensure strong performance in demanding power distribution applications.

Product Specifications

• Brand: Square D
• Model Number: KH36110
• Product Type: Molded Case Circuit Breaker
• Frame Style: KH (I-Line) Frame
• Trip Unit Type: Thermal Magnetic Non-interchangeable
• Connection Type: Plug In
• Mount Type: I-Line / Plug-In Mount
• Number of Poles: 3 Pole
• Amperage Rating: 110 Ampere
• Maximum Voltage Rating: 600 VAC
• Frequency: 50/60 Hz
• Standard Lug Type: Load End Terminals
• Operating Temperature Reference: 40°C
• Warranty: One Year

Technical Specifications

• Thermal magnetic trip mechanism for overload and short-circuit protection
• Non-interchangeable trip unit construction
• K-frame molded case breaker design
• Suitable for industrial and commercial power distribution systems
• Load end terminals supplied as standard
• Compatible with I-Line panelboard applications
• Rugged molded case construction for long-term durability
• Trip setting range: 550–1100

Voltage and Ratings

• 65 kA Interrupting Capacity @ 240 VAC
• 35 kA Interrupting Capacity @ 480 VAC
• 25 kA Interrupting Capacity @ 600 VAC
• 10 kA Interrupting Capacity @ 250 VDC
• Maximum Voltage: 600 VAC
• Current Rating: 110 Ampere
• 3 Pole Configuration

Product Data

• Manufacturer: Square D
• Model: KH36110
• Frame Type: K Frame
• Connection: Plug In
• Terminal Type: Load End Standard Lugs
• Product Category: Molded Case Circuit Breaker
• Warranty Coverage: 1 Year In-House Warranty
• Application: Electrical Power Distribution and Circuit Protection

Important Note

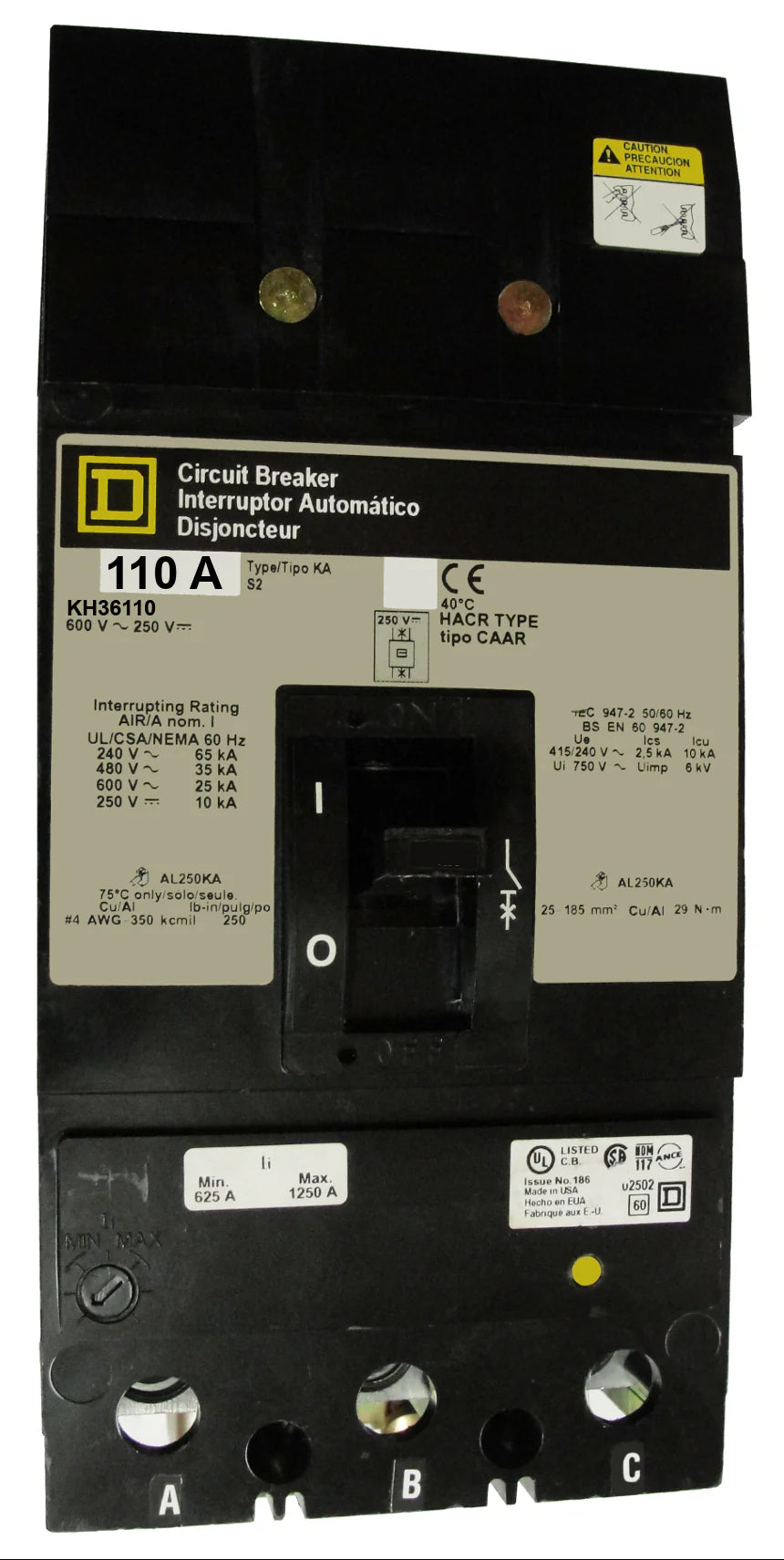

The product image displayed represents a base model and is intended for identification purposes only. Accessories purchased with the breaker can be installed according to your required configuration at no additional cost when details are provided in the order comment section during checkout. The included one-year in-house warranty covers standard shipping, replacement parts, repair labor, and recertification services under normal operating conditions. Damage caused by misuse, improper installation, or normal wear is not covered under warranty.
