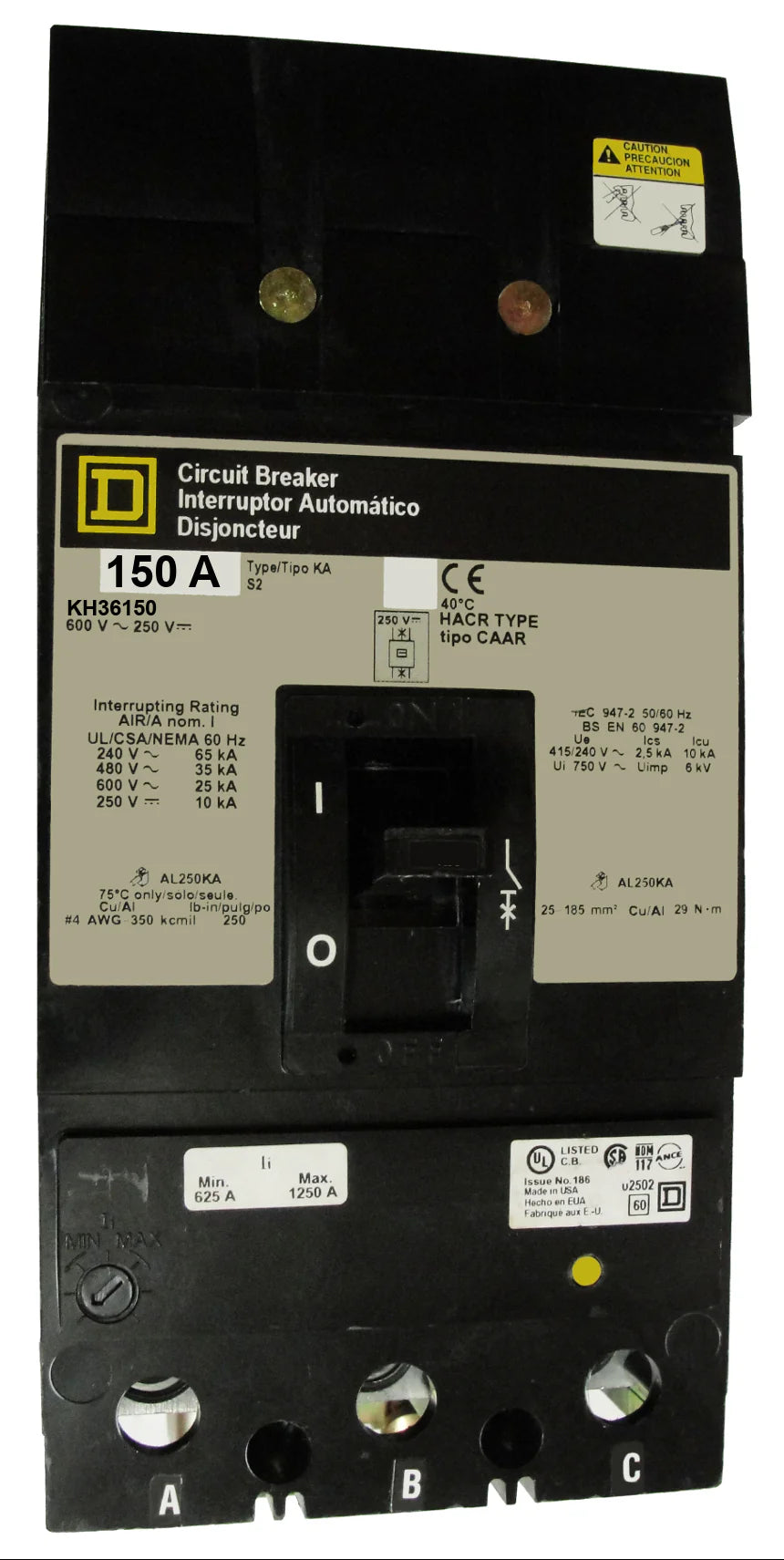

Square D KH36150 150A 3 Pole Molded Case Circuit Breaker – Plug In – 600VAC
Couldn't load pickup availability
Ask an expert
The KH36150 by Square D is a durable K-frame molded case circuit breaker engineered for commercial and industrial electrical distribution systems. Featuring a thermal magnetic non-interchangeable trip unit, this breaker delivers dependable overload and short-circuit protection for critical power applications. Its I-Line frame style and plug-in mounting configuration enable quick installation and simplified maintenance, while high interrupting ratings provide reliable protection in demanding operating environments.
Product Specifications
- Brand: Square D
- Model Number: KH36150
- Product Type: Molded Case Circuit Breaker
- Frame Style: KH (I-Line) Frame
- Trip Unit Type: Thermal Magnetic Non-interchangeable
- Connection Type: Plug In
- Mount Type: I-Line / Plug-In Mount
- Number of Poles: 3 Pole
- Amperage Rating: 150 Ampere
- Maximum Voltage Rating: 600 VAC
- Frequency: 50/60 Hz
- Standard Lug Type: Load End Terminals
- Operating Temperature Reference: 40°C
- Warranty: One Year
Technical Specifications
- Thermal magnetic trip mechanism for overload and short-circuit protection
- Non-interchangeable trip unit design
- K-frame molded case breaker construction
- Designed for industrial and commercial distribution systems
- Load end terminals included as standard
- Compatible with I-Line panelboard installations
- Heavy-duty molded case housing for durability and long service life
- Trip setting range: 750–1500
Voltage and Ratings
- 65 kA Interrupting Capacity @ 240 VAC
- 35 kA Interrupting Capacity @ 480 VAC
- 25 kA Interrupting Capacity @ 600 VAC
- 10 kA Interrupting Capacity @ 250 VDC
- Maximum Voltage: 600 VAC
- Current Rating: 150 Ampere
- 3 Pole Configuration
Product Data
- Manufacturer: Square D
- Model: KH36150
- Frame Type: K Frame
- Connection: Plug In
- Terminal Type: Load End Standard Lugs
- Product Category: Molded Case Circuit Breaker
- Warranty Coverage: 1 Year In-House Warranty
- Application: Electrical Power Distribution and Circuit Protection
Important Note
The product image shown is for identification purposes only and may represent a standard base model. Accessories ordered together with the breaker can be professionally installed according to your requested configuration at no additional cost. Please provide all necessary configuration details in the order comments during checkout. The included one-year in-house warranty covers standard shipping, repair services, replacement parts, and labor required for recertification under normal operating conditions. Warranty coverage does not include damage caused by misuse, improper handling, or normal wear and tear.
