Square D KH36175 175A 3 Pole Molded Case Circuit Breaker – Plug In – 600VAC

The KH36175 by Square D is a K-frame molded case circuit breaker designed to provide dependable protection for industrial and commercial electrical distribution systems. Equipped with a thermal magnetic non-interchangeable trip unit, this breaker offers reliable overload and short-circuit protection. Its I-Line frame style and plug-in mounting design allow for convenient installation and maintenance, while the high interrupting capacity supports safe operation in demanding power applications.

Product Specifications

• Brand: Square D
• Model Number: KH36175
• Product Type: Molded Case Circuit Breaker
• Frame Style: KH (I-Line) Frame
• Trip Unit Type: Thermal Magnetic Non-interchangeable
• Connection Type: Plug In
• Mount Type: I-Line / Plug-In Mount
• Number of Poles: 3 Pole
• Amperage Rating: 175 Ampere
• Maximum Voltage Rating: 600 VAC
• Frequency: 50/60 Hz
• Standard Lug Type: Load End Terminals
• Operating Temperature Reference: 40°C
• Warranty: One Year

Technical Specifications

• Thermal magnetic trip mechanism for overload and short-circuit protection
• Non-interchangeable trip unit construction
• K-frame molded case breaker design
• Suitable for commercial and industrial power distribution systems
• Standard load end terminal configuration
• Compatible with I-Line panelboard applications
• Durable molded case housing for long-term performance
• Trip setting range: 875–1750

Voltage and Ratings

• 65 kA Interrupting Capacity @ 240 VAC
• 35 kA Interrupting Capacity @ 480 VAC
• 25 kA Interrupting Capacity @ 600 VAC
• 10 kA Interrupting Capacity @ 250 VDC
• Maximum Voltage: 600 VAC
• Current Rating: 175 Ampere
• 3 Pole Configuration

Product Data

• Manufacturer: Square D
• Model: KH36175
• Frame Type: K Frame
• Connection: Plug In
• Terminal Type: Load End Standard Lugs
• Product Category: Molded Case Circuit Breaker
• Warranty Coverage: 1 Year In-House Warranty
• Application: Electrical Power Distribution and Circuit Protection

Important Note

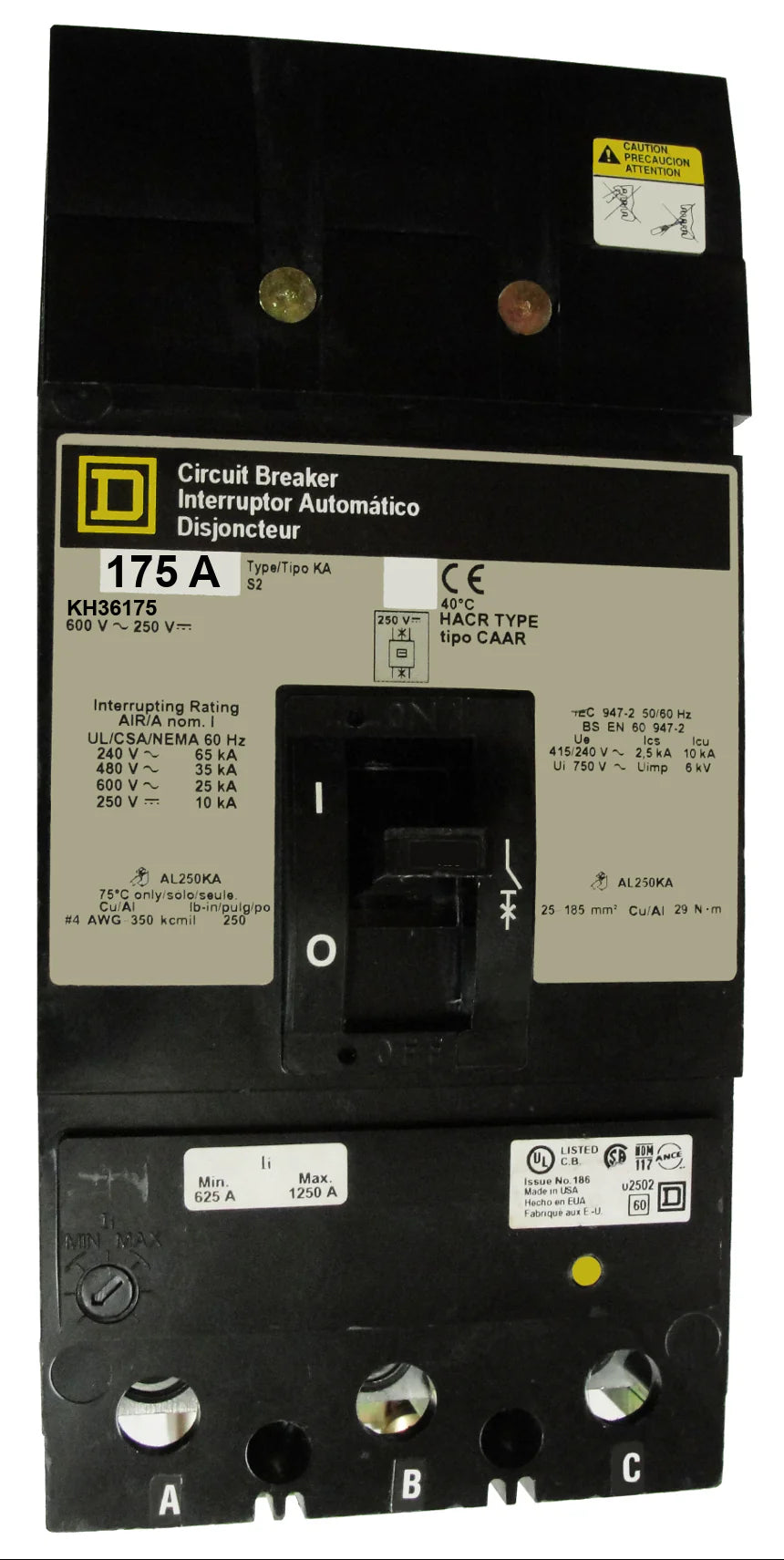

The product image displayed is for identification purposes only and may represent a standard base model. Accessories purchased with the breaker can be installed according to your specified configuration at no additional charge when details are included in the order comments during checkout. The included one-year in-house warranty covers standard shipping, repair services, labor, and replacement parts required for recertification under normal operating conditions. Damage resulting from misuse, improper installation, or normal wear is not covered under warranty.
