Square D KHL36100 100A 3 Pole Molded Case Circuit Breaker – Bolt On – 600VAC
Couldn't load pickup availability
Ask an expert
The KHL36100 by Square D is a KHL-frame molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. It utilizes a thermal magnetic non-interchangeable trip unit to deliver consistent protection against overload and short-circuit conditions. The bolt-on mounting configuration ensures a secure and stable installation, while its high interrupting capacity supports dependable operation in demanding electrical environments.
Product Specifications
- Brand: Square D
- Model Number: KHL36100
- Product Type: Molded Case Circuit Breaker
- Frame Style: KHL Frame
- Trip Unit Type: Thermal Magnetic Non-interchangeable
- Connection Type: Bolt On
- Mount Type: Bolt-On Panel Mount
- Number of Poles: 3 Pole
- Amperage Rating: 100 Ampere
- Maximum Voltage Rating: 600 VAC
- Frequency: 50/60 Hz
- Standard Lug Type: Line and Load End Terminals
- Operating Temperature Reference: 40°C
- Warranty: One Year
Technical Specifications
- Thermal magnetic trip mechanism for overload and short-circuit protection
- Non-interchangeable trip unit design
- Heavy-duty KHL-frame molded case construction
- Suitable for industrial and commercial distribution systems
- Line and load end terminals included as standard
- Bolt-on mounting for secure installation
- Durable molded case housing for long service life
- Trip setting range: 500–1000
Voltage and Ratings
- 65 kA Interrupting Capacity @ 240 VAC
- 35 kA Interrupting Capacity @ 480 VAC
- 25 kA Interrupting Capacity @ 600 VAC
- 10 kA Interrupting Capacity @ 250 VDC
- Maximum Voltage: 600 VAC
- Current Rating: 100 Ampere
- 3 Pole Configuration
Product Data
- Manufacturer: Square D
- Model: KHL36100
- Frame Type: KHL Frame
- Connection: Bolt On
- Terminal Type: Line and Load End Standard Lugs
- Product Category: Molded Case Circuit Breaker
- Warranty Coverage: 1 Year In-House Warranty
- Application: Electrical Power Distribution and Circuit Protection
Important Note

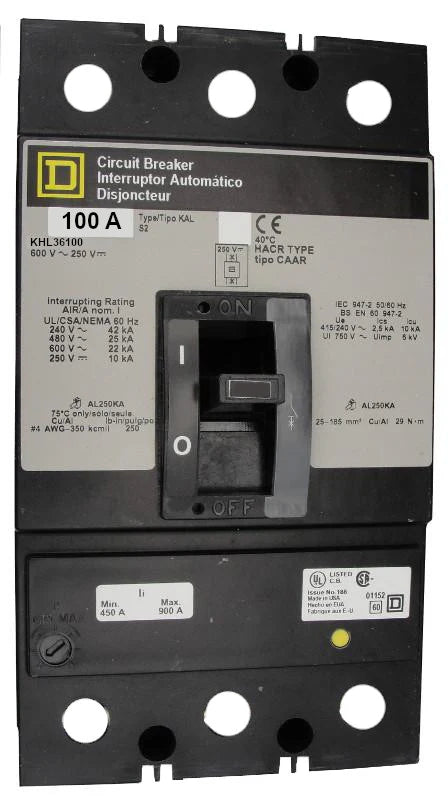

The product image shown is for identification purposes only and may represent a base model. Accessories ordered with the breaker can be installed according to your specified configuration at no additional cost when details are provided in the order comments during checkout. The included one-year in-house warranty covers standard shipping, repair services, replacement parts, and labor required for recertification under normal operating conditions. Damage caused by misuse, improper installation, or normal wear is not covered under warranty.
