Square D KHP36110 110A 3 Pole Molded Case Circuit Breaker – Panel Mounted – 600VAC
Couldn't load pickup availability
Ask an expert
The KHP36110 by Square D is a KHP-frame molded case circuit breaker designed for dependable protection in industrial and commercial electrical distribution systems. It incorporates a thermal magnetic non-interchangeable trip unit that ensures reliable performance against overloads and short-circuit faults. The panel-mounted configuration allows secure installation in electrical enclosures, while its high interrupting capacity supports stable operation in demanding power applications.
Product Specifications
- Brand: Square D
- Model Number: KHP36110
- Product Type: Molded Case Circuit Breaker
- Frame Style: KHP Frame
- Trip Unit Type: Thermal Magnetic Non-interchangeable
- Connection Type: Panel Mounted
- Mount Type: Panel Mount
- Number of Poles: 3 Pole
- Amperage Rating: 110 Ampere
- Maximum Voltage Rating: 600 VAC
- Frequency: 50/60 Hz
- Standard Lug Type: Load End Terminals
- Operating Temperature Reference: 40°C
- Warranty: One Year
Technical Specifications
- Thermal magnetic trip mechanism for overload and short-circuit protection
- Non-interchangeable trip unit design
- Heavy-duty KHP-frame molded case construction
- Suitable for industrial and commercial distribution systems
- Load end terminals included as standard
- Panel-mounted configuration for secure enclosure installation
- Durable molded case housing for long service life
- Trip setting range: 550–1100
Voltage and Ratings
- 65 kA Interrupting Capacity @ 240 VAC
- 35 kA Interrupting Capacity @ 480 VAC
- 25 kA Interrupting Capacity @ 600 VAC
- 10 kA Interrupting Capacity @ 250 VDC
- Maximum Voltage: 600 VAC
- Current Rating: 110 Ampere
- 3 Pole Configuration
Product Data
- Manufacturer: Square D
- Model: KHP36110
- Frame Type: KHP Frame
- Connection: Panel Mounted
- Terminal Type: Load End Standard Lugs
- Product Category: Molded Case Circuit Breaker
- Warranty Coverage: 1 Year In-House Warranty
- Application: Electrical Power Distribution and Circuit Protection
Important Note

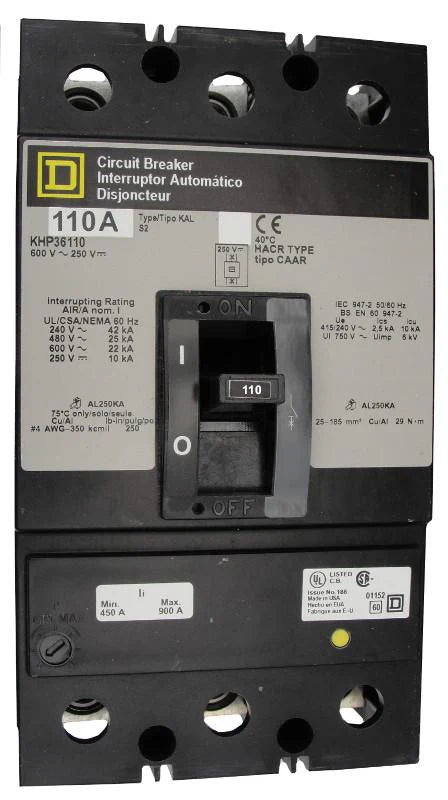

The product image shown is for identification purposes only and may represent a base model. Accessories ordered with the breaker can be installed according to your specified configuration at no additional cost when details are provided in the order comments during checkout. The included one-year in-house warranty covers standard shipping, repair services, replacement parts, and labor required for recertification under normal operating conditions. Damage caused by misuse, improper installation, or normal wear is not covered under warranty.
