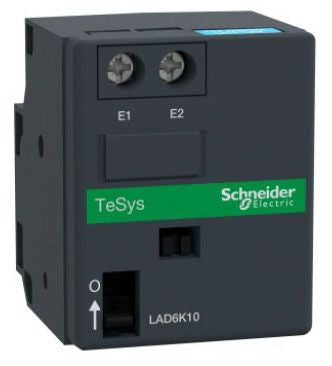

Square D LAD6K10M Contactor Mechanical Latch Contact Block – IEC – 220/240 VDC Front Mount – LAD Series

The Square D LAD6K10M mechanical latch contact block is a front-mounted accessory designed for use with Schneider Electric IEC contactors, specifically LC1D09 to LC1D38 and LC1DT20 to LC1DT60 AC/DC models. It provides a reliable mechanical latching function for contactor control circuits operating at 220/240 VDC. Engineered for industrial motor control applications, this accessory enhances operational stability by maintaining contactor state without continuous coil energization. It is UL and CSA approved and designed for dependable integration into control systems.

Voltage and Electrical Ratings

• Operating Voltage: 220/240 VDC
• Control Type: Mechanical Latching (Front Mount)
• Application: Contactor control accessory

Compatibility

• Compatible with:
  • LC1D09 to LC1D38 AC/DC contactors
  • LC1DT20 to LC1DT60 AC/DC contactors
• IEC motor control systems

Function and Operation

• Function: Mechanical latch for contactor holding
• Front-mount design for direct integration
• Maintains contactor position without continuous coil power

Configuration and Mounting

• Mounting Style: Front Mount
• Model Series: LAD
• Device Type: Mechanical Latch Block

Standards and Certifications

• UL Listed
• CSA Approved

Features

• LAD series mechanical latch contact block
• Designed for IEC contactor accessories
• Reduces coil energy consumption by maintaining mechanical state
• Enhances reliability in control circuit applications
• Compact front-mount design for easy installation
• Suitable for industrial automation and motor control systems
• Manufactured by Schneider Electric for consistent performance and durability
