The Square D LAP36125 molded case circuit breaker is a compact and reliable protection device designed for commercial and industrial electrical distribution systems. Built on the LAP frame style with a thermal magnetic non-interchangeable trip unit, this breaker provides dependable overload and short-circuit protection for lower to mid-range current applications. Its panel-mounted configuration, rugged molded case construction, and load-end-only terminal design ensure secure installation, stable performance, and long service life in electrical distribution panels requiring consistent circuit protection.

Product Specifications

• Brand: Square D
• Model: LAP36125
• Frame Style: LAP
• Product Type: Molded Case Circuit Breaker
• Breaker Type: Thermal Magnetic
• Trip Unit: Non-Interchangeable
• Amperage Rating: 125 Ampere
• Number of Poles: 3 Pole
• Mounting Type: Panel Mounted
• Maximum Voltage Rating: 600V
• Standard Lug Type: Load End Only
• Operating Temperature Reference: 40°C
• Warranty: One Year

Technical Specifications

• Thermal magnetic trip mechanism for overload and short-circuit protection
• Non-interchangeable trip unit for fixed and stable protection settings
• Heavy-duty molded case construction for industrial durability
• Panel-mounted design for direct integration into electrical panels
• Load-end-only terminal configuration for simplified installation
• Suitable for commercial and industrial power distribution systems
• Reliable interruption performance under varying load conditions
• Long service life with robust internal components

Voltage and Ratings

• Rated Current: 125A
• Interrupting Capacity: 42kA @ 240 VAC
• Interrupting Capacity: 30kA @ 480 VAC
• Interrupting Capacity: 22kA @ 600 VAC
• Interrupting Capacity: 10kA @ 250 VDC
• Trip Setting Range: 625–1250
• Frequency Rating: 50/60Hz
• Maximum Voltage Rating: 600V

Product Data

• Manufacturer: Square D
• Product Category: Molded Case Circuit Breaker
• Series: LAP Frame
• Connection Type: Panel Mounted
• Frame Type: L
• Pole Configuration: 3 Pole
• Lug Configuration: Load End Only
• Protection Type: Thermal Magnetic Protection
• Condition Support: Certified Reconditioned and New Surplus
• Included Warranty Coverage: Shipping, repairs, parts, and labor for recertification
• Application: Commercial and Industrial Electrical Distribution Systems

Important Note

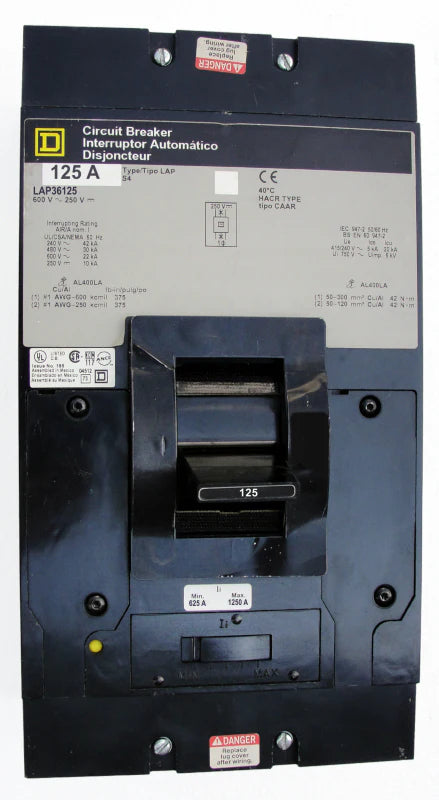

The product image shown represents a base model and is intended for identification purposes only. Accessories purchased together with the breaker can be installed at no additional cost according to customer configuration requirements when installation instructions are provided during checkout. Installation, operation, and maintenance must be performed by qualified electrical personnel in accordance with applicable electrical standards and manufacturer guidelines. Warranty coverage excludes damage caused by misuse, improper installation, or normal wear and tear.
