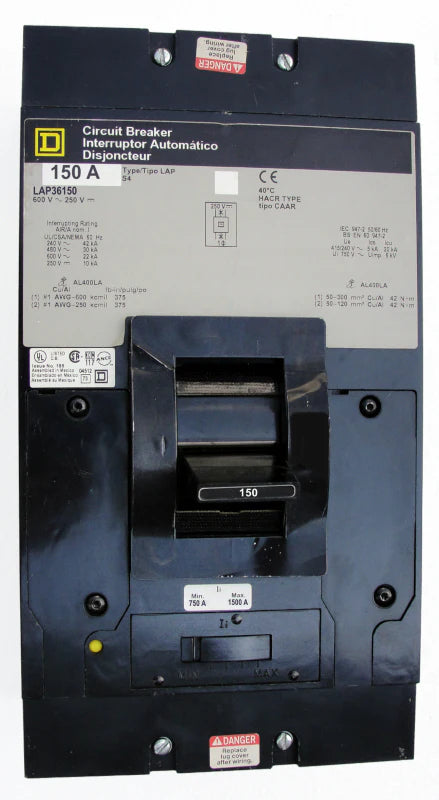

Square-D LAP36150 150A 3P MCCB – Panel Mounted – 600V

In stock
SKU: LAP36150-NS
$2,999.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square-D LAP36150 is a molded case circuit breaker designed for reliable protection of electrical distribution systems in industrial and commercial applications. It features a 150A thermal magnetic non-interchangeable trip unit and is built on the LAP frame platform, ensuring robust performance under fault conditions. With a 3-pole configuration and panel-mounted design, it provides dependable circuit isolation and protection against overloads and short circuits. Its high interrupting capacity makes it suitable for demanding environments where electrical fault levels are significant.

Product Specification

  • Frame type: LAP Frame (Type L)
  • Rated current: 150 Ampere at 40°C
  • Number of poles: 3 Pole
  • Trip unit type: Thermal Magnetic Non-interchangeable
  • Mounting type: Panel Mounted
  • Terminal configuration: Load End Terminals Only
  • Manufacturer: Square-D
  • Warranty: 1 Year In-house

Technical Specification

  • Trip range: 750–1500 (adjustable setting range)
  • Protection functions: Overload and Short Circuit Protection
  • Operating mechanism: Thermal Magnetic
  • Lug type: Standard Load End Only
  • Application: Industrial and commercial power distribution
  • Mechanical durability: Designed for high fault endurance in MCCB systems

Voltage and Ratings

  • Rated operational voltage: 240 / 480 / 600 VAC
  • DC rating: 250 VDC
  • Frequency: 50/60 Hz
  • Interrupting capacity:
    • 42 kA @ 240 VAC
    • 30 kA @ 480 VAC
    • 22 kA @ 600 VAC
    • 10 kA @ 250 VDC
  • Insulation class: Industrial-grade MCCB standard

Product Data

  • Product model: LAP36150
  • Brand: Square-D
  • Frame size: LAP Frame
  • Amperage: 150A
  • Poles: 3 Pole
  • Connection type: Panel Mounted
  • Application type: Distribution circuit protection
  • Accessories: Compatible (installed as per order requirement)

Important Note

This product represents a base configuration model. Actual installation setup, accessories, and final configuration may vary depending on project requirements. Accessories can be installed at no additional cost when ordered with the breaker, subject to customer instructions provided during purchase. Always confirm technical compatibility before installation or system integration.
