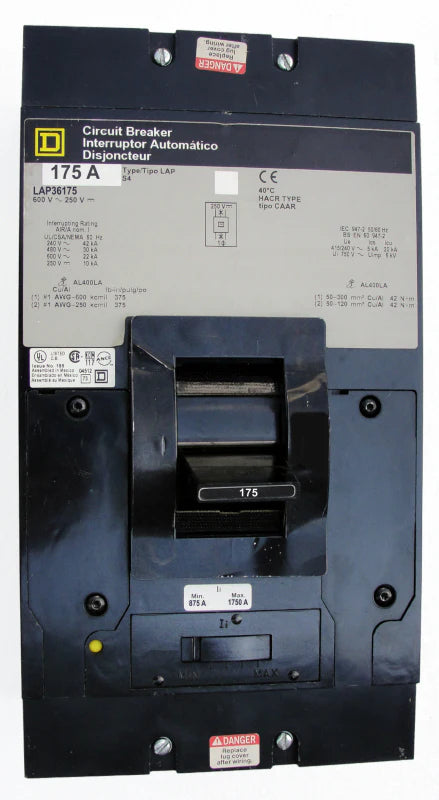

Square-D LAP36175 175A 3P MCCB – Panel Mounted – 600V

The Square-D LAP36175 is a molded case circuit breaker engineered for dependable protection in low and medium voltage power distribution systems. It features a 175A thermal magnetic non-interchangeable trip unit, providing reliable protection against overloads and short circuit faults. Built on the LAP frame platform, this breaker is designed for industrial-grade performance with high interrupting capacity, making it suitable for demanding electrical environments. Its 3-pole configuration and panel-mounted design ensure stable integration into switchboards and distribution panels.

Product Specification

• Frame type: LAP Frame (Type L)
• Rated current: 175 Ampere at 40°C
• Number of poles: 3 Pole
• Trip unit type: Thermal Magnetic Non-interchangeable
• Mounting type: Panel Mounted
• Terminal configuration: Load End Terminals Only
• Manufacturer: Square-D
• Warranty: 1 Year In-house

Technical Specification

• Trip range: 875–1750
• Protection functions: Overload and Short Circuit Protection
• Operating mechanism: Thermal Magnetic
• Lug type: Standard Load End Only
• Application: Industrial and commercial electrical distribution systems
• Mechanical design: High durability MCCB frame construction

Voltage and Ratings

• Rated operational voltage: 240 / 480 / 600 VAC
• DC rating: 250 VDC
• Frequency: 50/60 Hz
• Interrupting capacity:
  • 42 kA @ 240 VAC
  • 30 kA @ 480 VAC
  • 22 kA @ 600 VAC
  • 10 kA @ 250 VDC
• Insulation level: Industrial MCCB standard

Product Data

• Product model: LAP36175
• Brand: Square-D
• Frame size: LAP Frame
• Amperage: 175A
• Poles: 3 Pole
• Connection type: Panel Mounted
• Application type: Power distribution protection
• Accessories compatibility: Supported (installed per order instructions)

Important Note

This product is supplied as a base configuration model. Final assembly, accessory installation, and configuration may vary depending on system requirements and customer specifications. Accessories can be installed at no additional cost when ordered together with the breaker, provided installation instructions are clearly specified at the time of purchase. Always verify technical suitability before commissioning.
