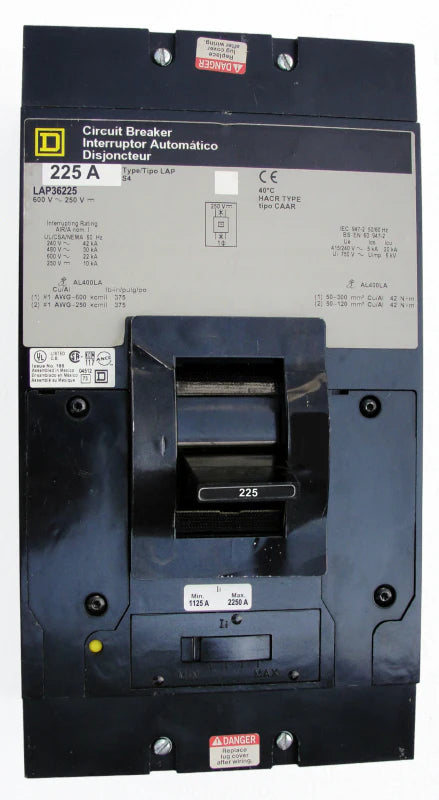

Square-D LAP36225 225A 3P MCCB – Panel Mounted – 600V

The Square-D LAP36225 is a molded case circuit breaker engineered for reliable protection of electrical distribution systems in industrial and commercial applications. It features a 225A thermal magnetic non-interchangeable trip unit, providing effective safeguarding against overloads and short-circuit conditions. Built on the LAP frame platform, this breaker delivers high interrupting performance and stable operation under fault conditions. Its 3-pole, panel-mounted configuration allows seamless integration into switchgear and distribution panels for efficient power management and protection.

Product Specification

• Frame type: LAP Frame (Type L)
• Rated current: 225 Ampere at 40°C
• Number of poles: 3 Pole
• Trip unit type: Thermal Magnetic Non-interchangeable
• Mounting type: Panel Mounted
• Terminal configuration: Load End Terminals Only
• Manufacturer: Square-D
• Warranty: 1 Year In-house

Technical Specification

• Trip range: 1125–2250
• Protection functions: Overload and Short Circuit Protection
• Operating mechanism: Thermal Magnetic
• Lug type: Standard Load End Only
• Application: Industrial and commercial power distribution systems
• Mechanical design: High-strength MCCB construction for fault endurance

Voltage and Ratings

• Rated operational voltage: 240 / 480 / 600 VAC
• DC rating: 250 VDC
• Frequency: 50/60 Hz
• Interrupting capacity:
  • 42 kA @ 240 VAC
  • 30 kA @ 480 VAC
  • 22 kA @ 600 VAC
  • 10 kA @ 250 VDC
• Insulation level: Industrial MCCB standard

Product Data

• Product model: LAP36225
• Brand: Square-D
• Frame size: LAP Frame
• Amperage: 225A
• Poles: 3 Pole
• Connection type: Panel Mounted
• Application type: Power distribution protection
• Accessories compatibility: Supported and installable per order request

Important Note

This product is supplied as a base configuration model. Final assembly, accessories, and configuration may vary depending on system requirements and customer specifications. Accessories can be installed at no additional cost when ordered together with the breaker, provided installation instructions are clearly specified at the time of purchase. Always verify technical compatibility before installation or commissioning.
