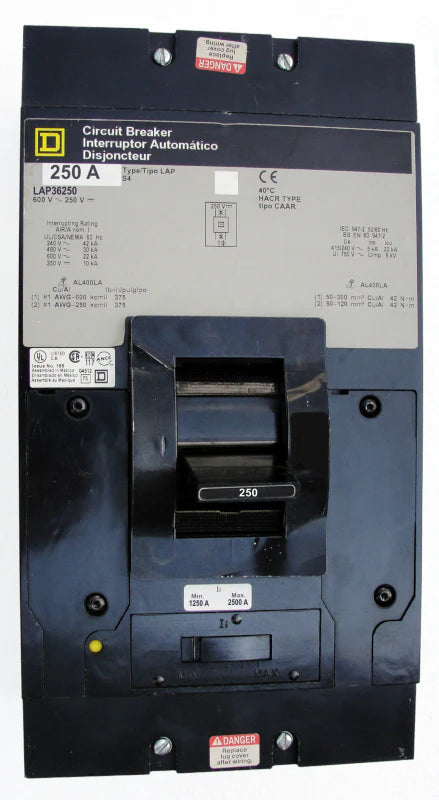

Square-D LAP36250 250A 3P MCCB – Panel Mounted – 600V

In stock
SKU: LAP36250-NS GTIN/UPC: 785901423973
$3,099.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square-D LAP36250 is a molded case circuit breaker designed for robust protection of electrical distribution systems in industrial and commercial installations. It features a 250A thermal magnetic non-interchangeable trip unit that ensures reliable protection against overload and short-circuit conditions. Built on the LAP frame platform, it delivers high interrupting performance and stable operation in demanding electrical environments. Its 3-pole, panel-mounted configuration allows straightforward integration into switchboards and power distribution panels.

Product Specification

  • Frame type: LAP Frame (Type L)
  • Rated current: 250 Ampere at 40°C
  • Number of poles: 3 Pole
  • Trip unit type: Thermal Magnetic Non-interchangeable
  • Mounting type: Panel Mounted
  • Terminal configuration: Load End Terminals Only
  • Manufacturer: Square-D
  • Warranty: 1 Year In-house

Technical Specification

  • Trip range: 1250–2500
  • Protection functions: Overload and Short Circuit Protection
  • Operating mechanism: Thermal Magnetic
  • Lug type: Standard Load End Only
  • Application: Industrial and commercial power distribution systems
  • Mechanical durability: High-strength MCCB design for fault endurance and reliability

Voltage and Ratings

  • Rated operational voltage: 240 / 480 / 600 VAC
  • DC rating: 250 VDC
  • Frequency: 50/60 Hz
  • Interrupting capacity:
    • 42 kA @ 240 VAC
    • 30 kA @ 480 VAC
    • 22 kA @ 600 VAC
    • 10 kA @ 250 VDC
  • Insulation level: Industrial-grade MCCB standard

Product Data

  • Product model: LAP36250
  • Brand: Square-D
  • Frame size: LAP Frame
  • Amperage: 250A
  • Poles: 3 Pole
  • Connection type: Panel Mounted
  • Application type: Electrical distribution protection
  • Accessories compatibility: Supported and configurable per order requirements

Important Note

This product is supplied as a standard base model configuration. Final assembly, accessories, and installation setup may vary depending on application requirements and customer specifications. Accessories can be installed at no additional cost when ordered together with the breaker, provided that installation instructions are clearly specified at the time of purchase. Always ensure technical compatibility before installation or system commissioning.
