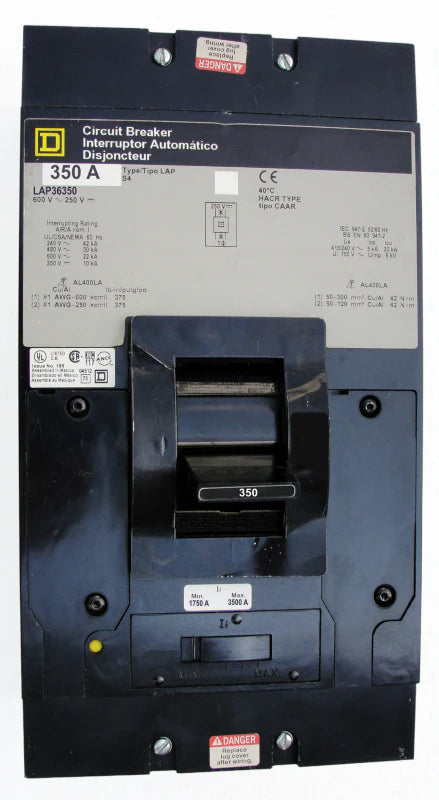

Square-D LAP36350 350A 3P MCCB – Panel Mounted – 600V

In stock
SKU: LAP36350-NS GTIN/UPC: 785901423997
$2,999.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square-D LAP36350 is a molded case circuit breaker designed for reliable protection of low and medium voltage electrical distribution systems in industrial and commercial environments. It is equipped with a 350A thermal magnetic non-interchangeable trip unit that ensures dependable protection against overloads and short-circuit faults. Built on the LAP frame platform, this breaker offers high interrupting capacity and stable performance under demanding fault conditions. Its 3-pole, panel-mounted configuration allows seamless integration into switchgear and distribution panels.

Product Specification

  • Frame type: LAP Frame (Type L)
  • Rated current: 350 Ampere at 40°C
  • Number of poles: 3 Pole
  • Trip unit type: Thermal Magnetic Non-interchangeable
  • Mounting type: Panel Mounted
  • Terminal configuration: Load End Terminals Only
  • Manufacturer: Square-D
  • Warranty: 1 Year In-house

Technical Specification

  • Trip range: 1750–3500
  • Protection functions: Overload and Short Circuit Protection
  • Operating mechanism: Thermal Magnetic
  • Lug type: Standard Load End Only
  • Application: Industrial and commercial power distribution systems
  • Mechanical construction: High-strength MCCB design for fault endurance and reliability

Voltage and Ratings

  • Rated operational voltage: 240 / 480 / 600 VAC
  • DC rating: 250 VDC
  • Frequency: 50/60 Hz
  • Interrupting capacity:
    • 42 kA @ 240 VAC
    • 30 kA @ 480 VAC
    • 22 kA @ 600 VAC
    • 10 kA @ 250 VDC
  • Insulation level: Industrial MCCB standard

Product Data

  • Product model: LAP36350
  • Brand: Square-D
  • Frame size: LAP Frame
  • Amperage: 350A
  • Poles: 3 Pole
  • Connection type: Panel Mounted
  • Application type: Electrical distribution protection
  • Accessories compatibility: Supported and configurable per order requirements

Important Note

This product is supplied as a standard base configuration model. Final assembly, accessory installation, and configuration may vary depending on system requirements and customer specifications. Accessories can be installed at no additional cost when ordered together with the breaker, provided installation instructions are clearly specified at the time of purchase. Always confirm technical suitability before installation or commissioning.
