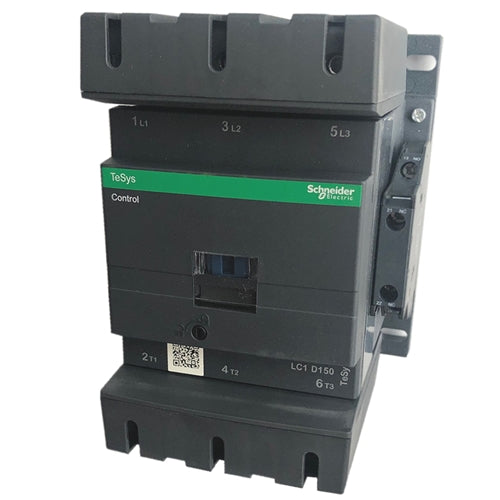

Square D LC1D150M7 Magnetic Contactor – 3 Pole – 150A – 220V AC Coil – 100 HP @ 460V – IEC LC Series

The Square D LC1D150M7 is a heavy-duty IEC magnetic contactor designed for industrial motor control and power switching applications. Manufactured by Schneider Electric, this LC series contactor is built for reliable operation in motor starters, automation systems, and power distribution panels. It provides robust switching performance for three-phase loads and is commonly used in demanding industrial environments requiring frequent motor control operations.

Electrical Ratings

• Current Rating: 150 Amps
• Coil Voltage: 220V AC (50/60 Hz)
• Motor Power Rating: 100 HP @ 460V, 3-phase
• Phase: 3 Phase
• Voltage Rating: up to IEC-rated industrial control voltages

Configuration and Function

• Device Type: Magnetic Contactor
• Series: LC1D
• Poles: 3 Pole
• Auxiliary Contacts: 1 NO + 1 NC (base mounted)
• Operation: Electromagnetic coil-actuated switching

Mechanical and Physical Characteristics

• Compact industrial-grade construction
• Panel-mounted design for control systems
• Designed for high mechanical and electrical endurance

Standards and Certifications

• IEC compliant
• CSA approved (as specified by manufacturer listings)
• Suitable for UL-rated industrial control assemblies depending on configuration

Features

• LC1D series heavy-duty industrial contactor
• 150A high-current switching capability
• Integrated auxiliary contacts (1 NO + 1 NC) for control feedback
• Reliable coil-operated switching for motor control applications
• Designed for 3-phase motor starting and stopping operations
• Suitable for motor starters and automation control panels
• High durability for frequent switching cycles
• Manufactured by Schneider Electric for industrial reliability and long service life
