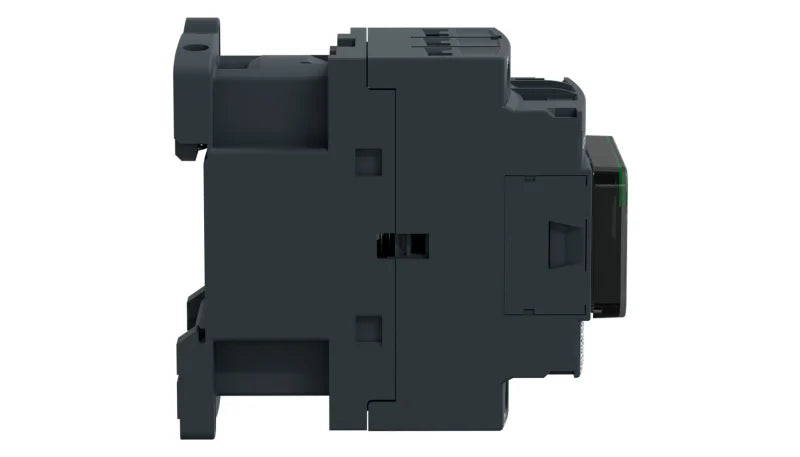

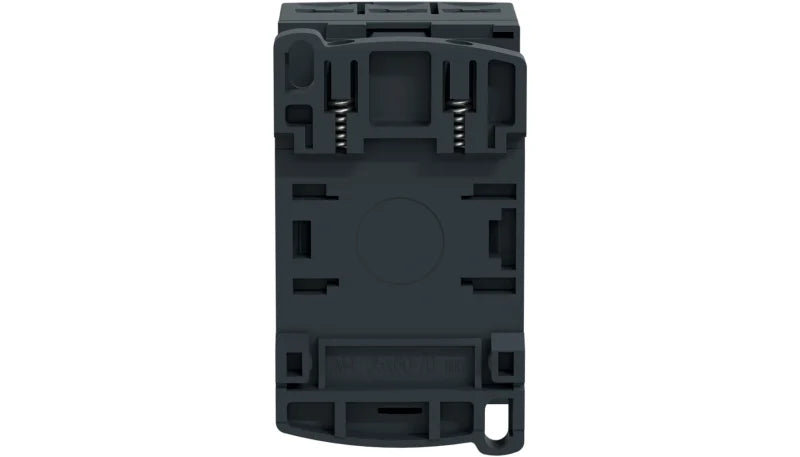

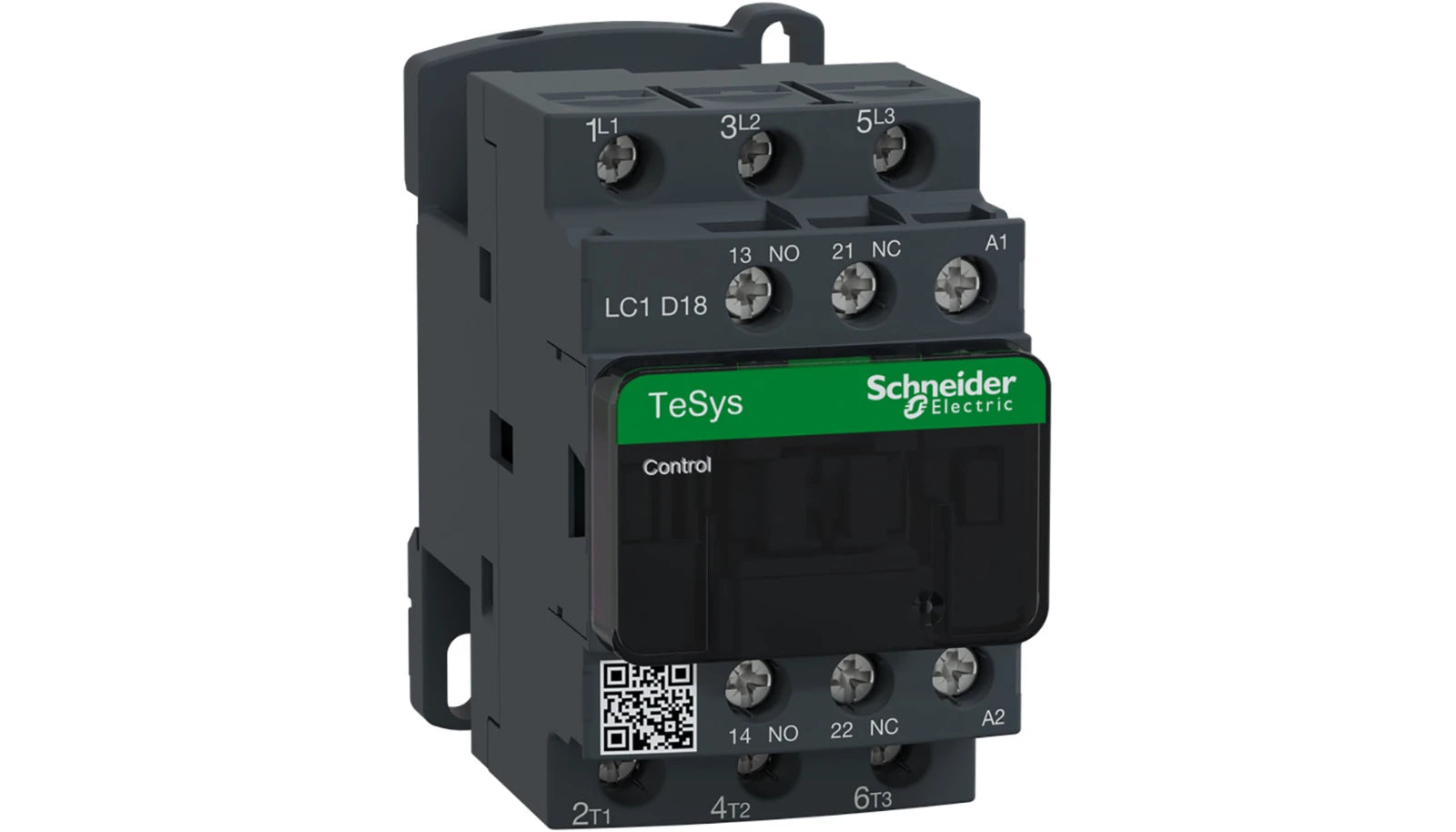

Square D LC1D18B7 IEC Contactor – 3 Pole – 18A – 24V Coil – TeSys Deca Series – 10 kW / 15 HP

The Square D LC1D18B7 is an IEC-rated magnetic contactor from the Schneider Electric TeSys Deca series, designed for reliable motor control and power switching in industrial and commercial applications. With a compact footprint and robust construction, it is widely used in motor starters, automation systems, HVAC control, and industrial control panels requiring dependable switching of three-phase loads.

Electrical Ratings

• Contact Current Rating: 18 A
• Coil Control Voltage: 24 V AC/DC (as specified)
• Voltage Rating: up to 600 V
• Motor Power Rating: 10 kW / 15 HP
• Phase: 3 Phase

Configuration and Function

• Device Type: IEC Contactor
• Series: TeSys Deca (LC1D Series)
• Poles: 3 Pole
• Primary Function: Motor control / power switching
• Operation: Electromagnetic coil-actuated contactor

Mechanical and Physical Characteristics

• Dimensions (H × W × D): 3.03 × 1.77 × 3.39 in
• Size: 77 × 45 × 86 mm
• Terminal Type: Box clamp
• Enclosure Protection: IP2x
• Operating Temperature Range: -5 °C to 60 °C

Standards and Certifications

• IEC Contactor standard design
• UL/CSA compliance depending on installation configuration
• UNSPSC: 39120000

Features

• TeSys Deca series compact industrial contactor
• 18A switching capacity for motor and load control
• 24V control coil for low-voltage control circuits
• Designed for long electrical and mechanical life cycles
• Suitable for motor starters and automation systems
• Compact size for control panel integration
• Reliable performance in industrial environments
• Manufactured by Schneider Electric for consistent global industrial standards
