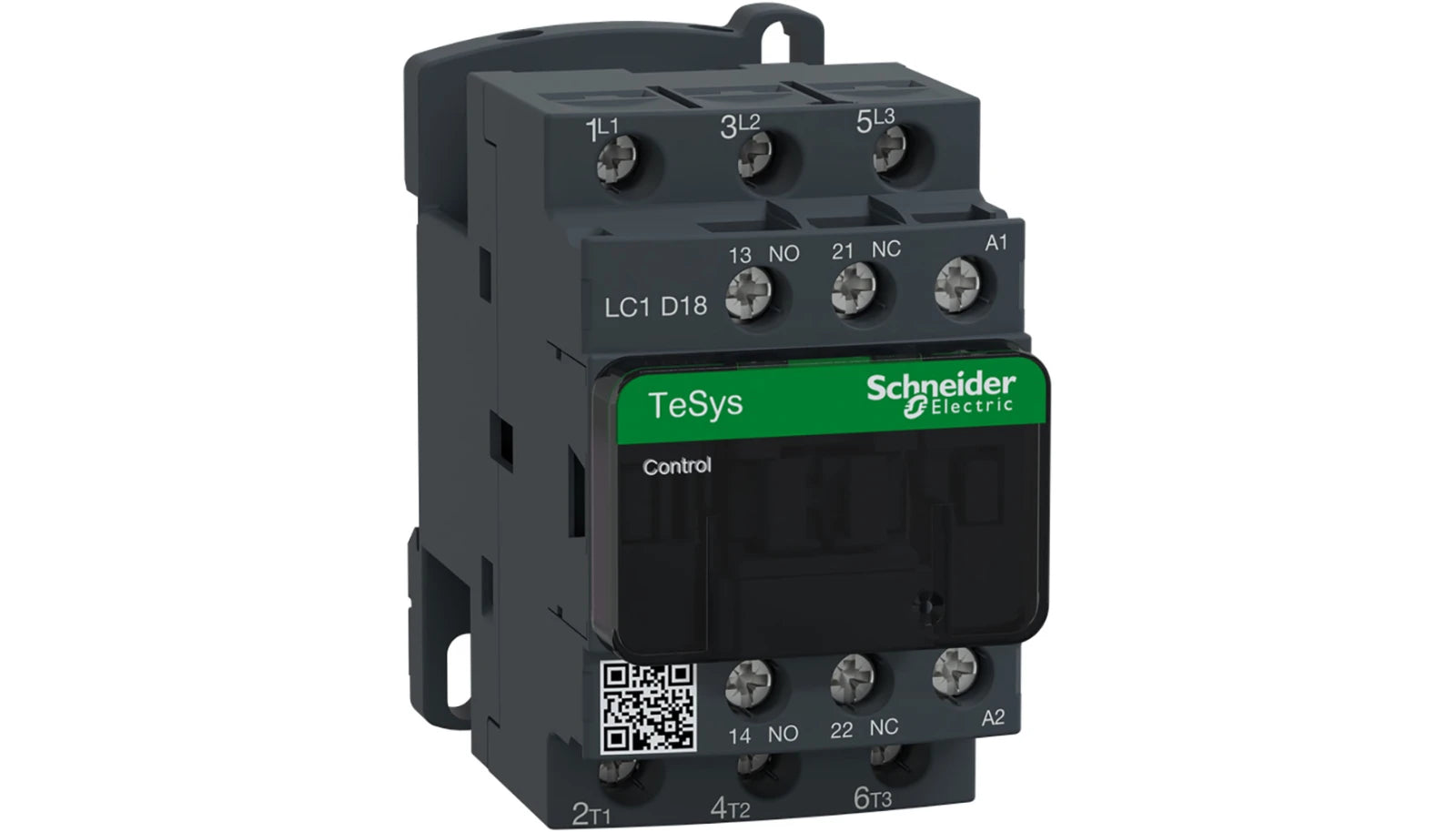

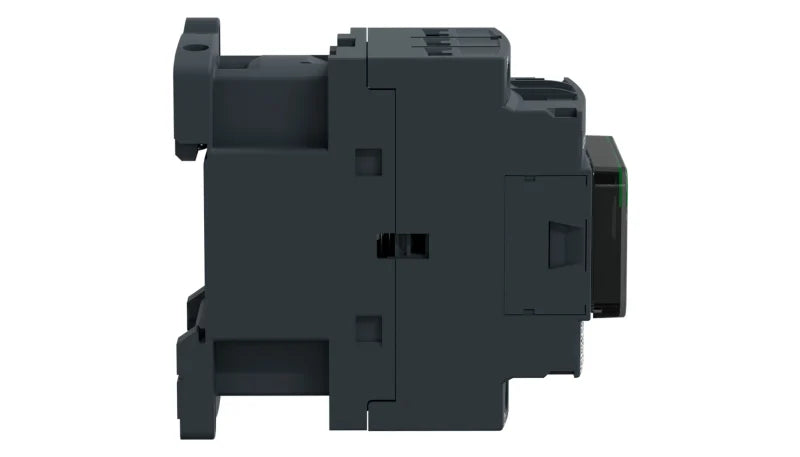

Square D LC1D18BD IEC Contactor – 3 Pole – 18A – 24V Coil – TeSys Deca Series – DIN Rail/Panel Mount – 10 kW / 15 HP

The Square D LC1D18BD is an IEC-rated magnetic contactor from the Schneider Electric TeSys Deca series, designed for reliable switching and control of three-phase motors and industrial loads. Built for automation systems, motor starters, and control panels, it provides dependable performance in compact installations requiring efficient DIN rail or panel mounting.

Electrical Ratings

• Contact Current Rating: 18 A
• Control Voltage: 24 V AC/DC
• Voltage Rating: up to 600 V
• Motor Power Rating: 10 kW / 15 HP
• Phase: 3 Phase

Configuration and Function

• Device Type: IEC Contactor
• Series: TeSys Deca (LC1D Series)
• Poles: 3 Pole
• Contact Configuration: 3 NO (Normally Open)
• Primary Function: Motor control and load switching
• Operation: Electromagnetic coil-driven switching

Mechanical and Physical Characteristics

• Dimensions (L × H × D): 3.03 × 77 × 95 mm (series-dependent listing format)

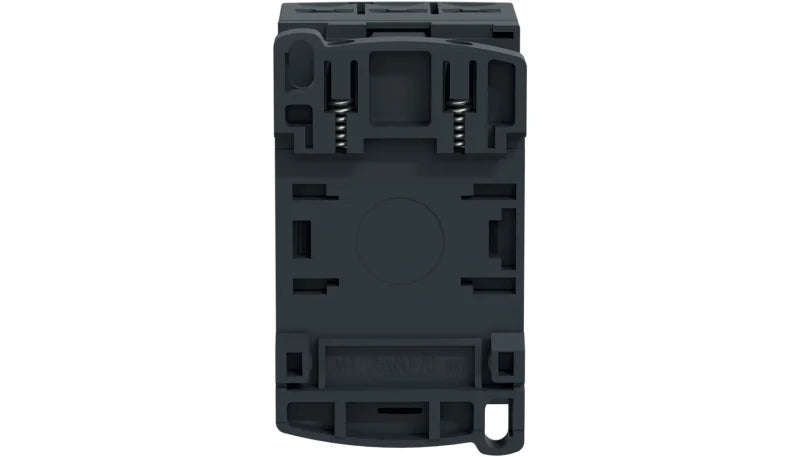

• Mounting Type: DIN Rail / Panel Mount
• Terminal Type: Box clamp
• Enclosure Type: IP2x
• Operating Temperature Range: -5 °C to 60 °C

Standards and Certifications

• IEC Contactor standard design
• UNSPSC: 39120000
• UL/CSA compliant depending on installation configuration

Features

• TeSys Deca compact industrial contactor
• 18A switching capacity for motor and load control applications
• 24V control coil for low-voltage automation systems
• 3 NO contact configuration for switching control circuits
• DIN rail or panel mounting flexibility
• Designed for high durability and long mechanical life
• Suitable for motor starters, HVAC systems, and industrial automation
• Compact footprint for space-saving control panel design
• Manufactured by Schneider Electric for reliable global industrial performance
