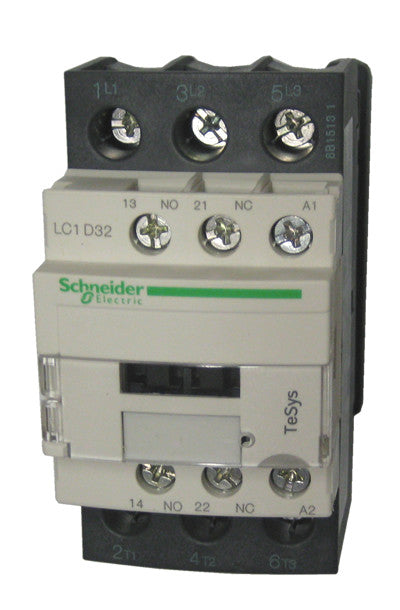

Square D LC1D32P7 IEC Contactor – 3 Pole – 32A – 230V AC Coil – TeSys D Series – AC-3 Motor Contactor – 10 HP (230V) / 20 HP (460V) – DIN Rail/Panel Mount

The Square D LC1D32P7 is a 3-phase IEC-rated magnetic contactor from the Schneider Electric TeSys D (LC1D) series, designed for reliable motor control and industrial load switching. It is commonly used in motor starters, HVAC systems, pumps, compressors, and automation control panels, providing strong performance, compact design, and long service life with a 230V AC coil.

Electrical Ratings

• Contact Current Rating (AC-3): 32 A
• AC-1 Rated Current: 50 A
• Control Coil Voltage: 230 V AC (50/60 Hz)
• Voltage Rating: up to 690 V AC
• Motor Power Rating:
  • 10 HP at 230 V (3-phase)
  • 20 HP at 460 V (3-phase)
• Frequency: 50/60 Hz
• Utilization Category: AC-3 / AC-1

Configuration and Function

• Device Type: IEC Magnetic Contactor
• Series: TeSys D (LC1D Series)
• Poles: 3 Pole (3 NO main contacts)
• Auxiliary Contacts: 1 NO + 1 NC (built-in)
• Primary Function: Motor control and power switching
• Operation: Electromagnetic coil-driven switching
• Type: Non-reversing contactor

Mechanical and Physical Characteristics

• Mounting Type: DIN Rail / Panel Mount
• Terminal Type: Screw terminals
• Compact TeSys D modular frame design
• Enclosure Protection: IP2X (front face)
• Operating Temperature Range: -5 °C to 60 °C
• High mechanical and electrical durability

Standards and Certifications

• IEC 60947-4-1 compliant
• UL / CSA / CE certified (depending on configuration)
• UNSPSC: 39121500
• Manufacturer: Schneider Electric / Square D

Features

• 32A AC-3 motor switching capacity
• 230V AC coil for standard industrial control circuits
• Built-in 1NO + 1NC auxiliary contacts
• High endurance for frequent switching operations
• Compact modular TeSys D design for control panels
• Suitable for HVAC, pumps, compressors, conveyors, and automation systems
• Long electrical and mechanical lifespan
• Reliable industrial-grade construction by Schneider Electric
• Easy DIN rail or panel mounting installation
