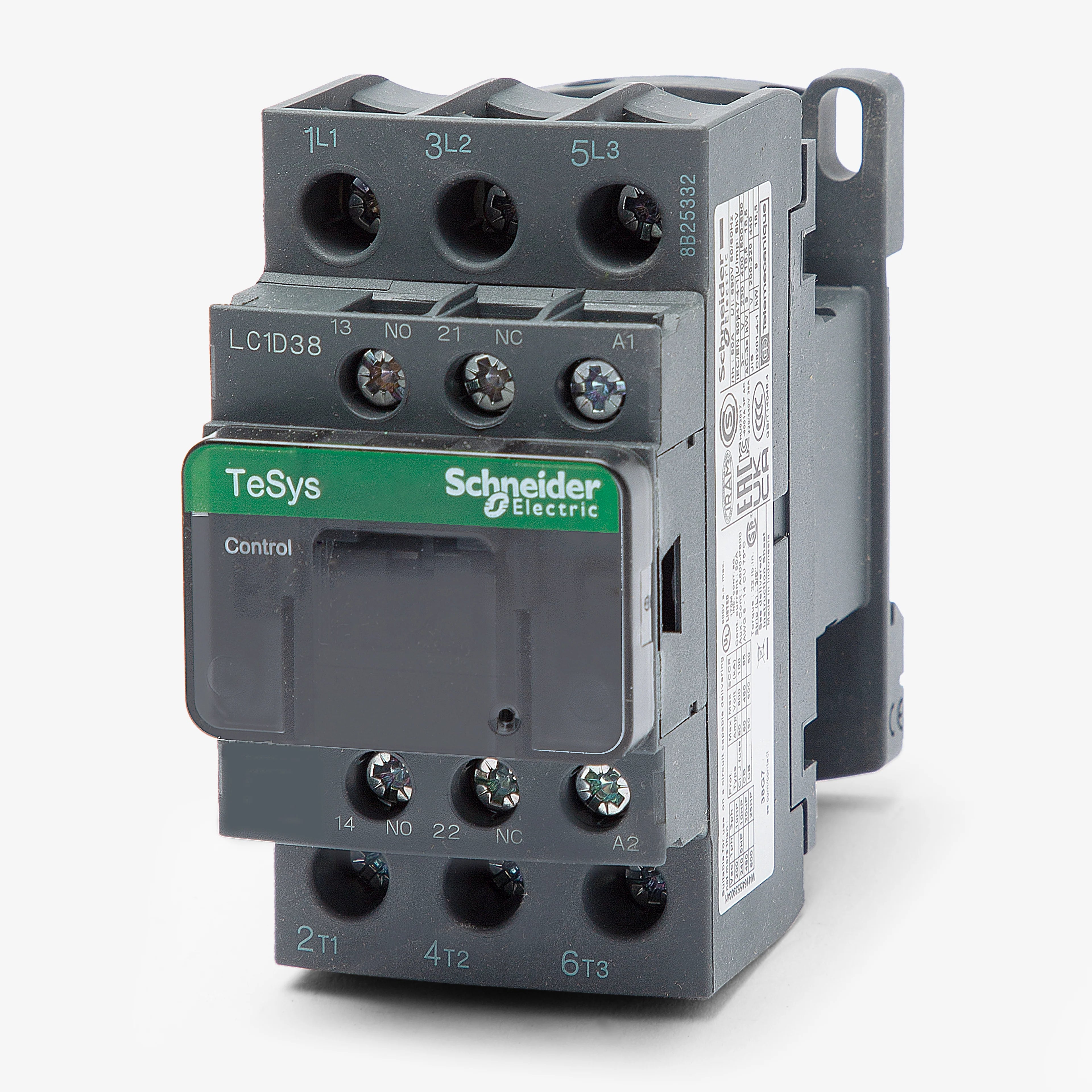

Square D LC1D38G7 IEC Contactor – 3 Pole – 38A – 120V AC Coil – TeSys D Series – Rail/Plate Mount – Motor & Resistive Load Contactor – DIN Mount

The Square D LC1D38G7 is a 3-phase IEC-rated magnetic contactor from the TeSys D (LC1D) series, designed for reliable switching of motor and resistive loads in industrial control systems. It is commonly used in motor starters, HVAC systems, compressors, pumps, and automation panels, offering strong switching performance, high durability, and flexible mounting options.

Electrical Ratings

• Contact Current Rating: 38 A (AC-3)
• Voltage Rating: up to 690 V AC / 300 V DC
• Control Coil Voltage: 120 V AC (50/60 Hz)
• Frequency: 50/60 Hz
• Utilization Category: AC-3 / AC-1 (application dependent)

Configuration and Function

• Device Type: IEC Magnetic Contactor
• Series: TeSys D (LC1D Series)
• Poles: 3 Pole
• Main Contacts: 3 NO (Normally Open)
• Primary Function: Motor control and resistive load switching
• Operation: Electromagnetic coil-driven switching
• Action: Non-reversing contactor

Mechanical and Physical Characteristics

• Mounting Type: Rail / Plate (DIN rail & panel compatible)
• Terminal Type: Screw clamp terminals
• Frame Type: LC1D compact industrial frame
• Operating Temperature Range: -40 °C to 80 °C
• High mechanical strength for industrial environments
• Compact modular design for control panels

Standards and Certifications

• IEC / UL / CSA / EN compliant
• Certified: BV, DNV, RINA, LROS, GOST, CCC, GL
• RoHS compliant
• Manufacturer: Schneider Electric / Square D
• MPN: LC1D38G7
• UPC: 785901489016

Features

• 38A heavy-duty motor and resistive load switching capability
• 120V AC coil for industrial control circuits
• High reliability for frequent switching operations
• Flexible rail or plate mounting options
• Compact TeSys D modular design for control panels
• Suitable for HVAC, pumps, compressors, and automation systems
• Wide industrial certification coverage for global applications
• Screw clamp terminals for secure wiring
• Designed for long mechanical and electrical lifespan
