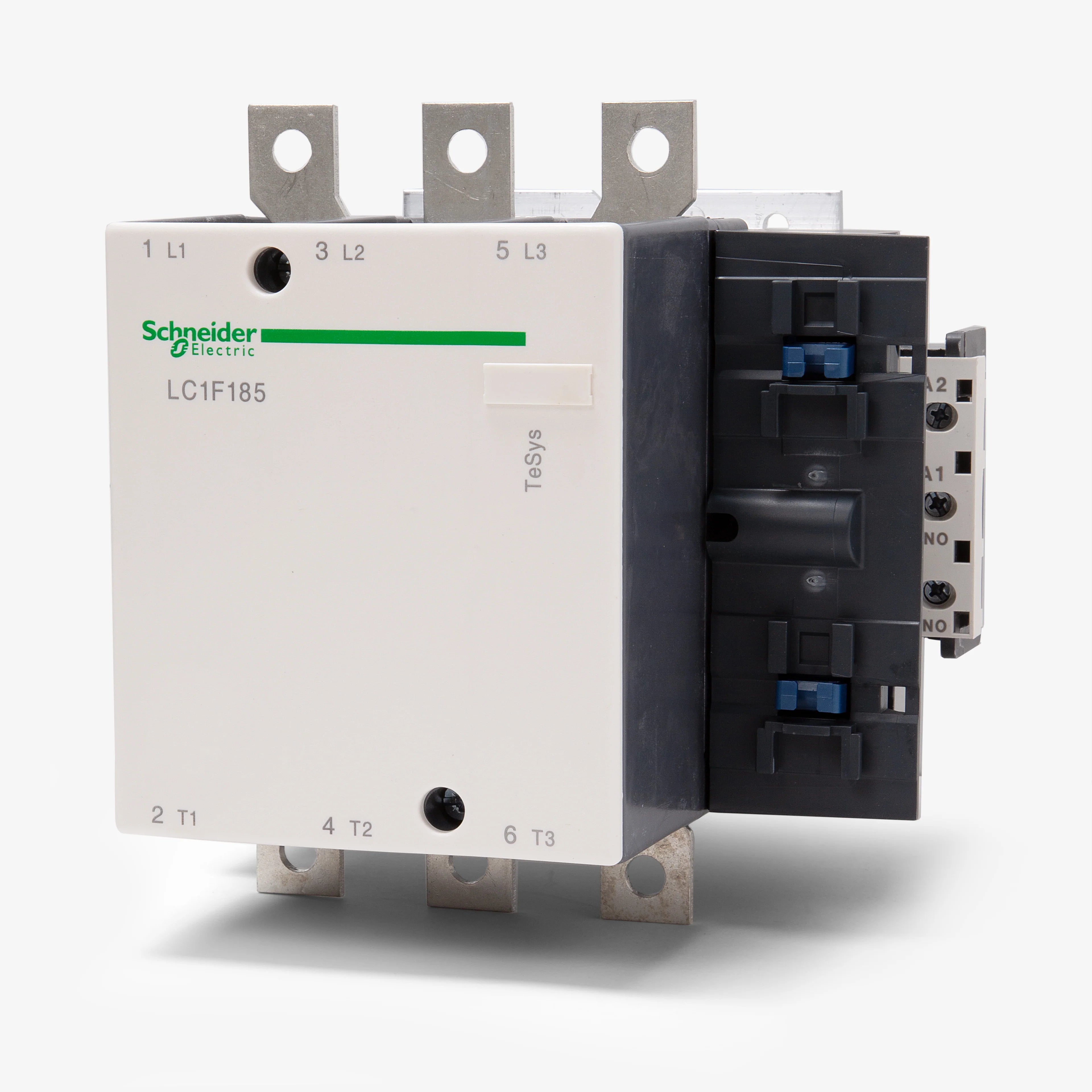

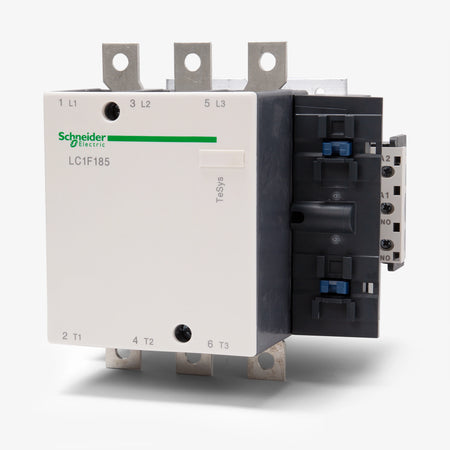

Square D LC1F185G7 IEC Contactor – 3 Pole – 185A – 120V AC Coil – TeSys F Series – NEMA Size 4 – Heavy Duty Motor Contactor – DIN Rail/Panel Mount

In stock
SKU: LC1F185G7 GTIN/UPC: 785901297864
$1,071.90
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D LC1F185G7 is a high-power 3-phase IEC-rated magnetic contactor from the TeSys F series, designed for heavy-duty motor control applications. It is widely used in industrial motor starters, large HVAC systems, compressors, pumps, and high-load automation systems where high current capacity and robust switching performance are required.

Electrical Ratings

  • Contact Current Rating (AC-3): 185 A
  • Voltage Rating: up to 600 V AC
  • Control Coil Voltage: 120 V AC (50/60 Hz)
  • Frequency: 50/60 Hz
  • Utilization Category: AC-3 / AC-1 (application dependent)
  • NEMA Size: 4
  • Application Type: Heavy-duty motor control systems

Configuration and Function

  • Device Type: IEC Magnetic Contactor
  • Series: TeSys F (LC1F Series)
  • Poles: 3 Pole
  • Main Contacts: 3 NO (Normally Open)
  • Primary Function: Motor control and high-power load switching
  • Operation: Electromagnetic coil-driven switching
  • Action: Non-reversing contactor
  • Contact Configuration: 3 NO

Mechanical and Physical Characteristics

  • Mounting Type: DIN Rail or Panel Mount
  • Terminal Type: Screw clamp terminals
  • Frame Type: LC1F heavy-duty industrial frame
  • Operating Temperature Range: -5 °C to 55 °C
  • High mechanical strength for industrial environments
  • Designed for large motor control assemblies

Standards and Certifications

  • IEC / UL / CSA / CCC / EAC compliant
  • Marine approvals: BV, DNV, ABS, RINA, LROS
  • RoHS / REACh compliant
  • Manufacturer: Schneider Electric / Square D
  • MPN: LC1F185G7
  • GTIN: 3389110351507

Features

  • Very high 185A AC-3 motor switching capability
  • 120V AC control coil for industrial control systems
  • Designed for large motor loads and heavy industrial applications
  • 3-pole high-power contact switching
  • NEMA Size 4 industrial rating for robust performance
  • Suitable for HVAC chillers, large pumps, compressors, and industrial drives
  • Strong mechanical durability and long service life
  • Flexible DIN rail or panel mounting options
  • Wide global certification coverage for industrial use
  • Reliable Schneider Electric TeSys F construction for heavy-duty environments
  • Type Contactor
  • Vendor Square D
  • Brand Square D
