Square D

Square-D LCL36350 350A 3P MCCB – Plug-In Mount – 600VAC

In stock
SKU: LCL36350-NS
$4,299.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square-D LCL36350 is a high-performance molded case circuit breaker designed for dependable protection in industrial and commercial power distribution systems. Equipped with a 350A thermal magnetic non-interchangeable trip unit, this breaker provides reliable overload and short-circuit protection for demanding electrical applications. Built on the LCL frame platform, it features a plug-in mounting configuration for convenient installation and maintenance. With high interrupting capacity ratings and a durable 3-pole construction, the breaker is well suited for applications requiring enhanced fault current protection and operational reliability.

Product Specification

  • Frame type: LCL Frame (Type L)
  • Rated current: 350 Ampere at 40°C
  • Number of poles: 3 Pole
  • Trip unit type: Thermal Magnetic Non-interchangeable
  • Mounting type: Plug-In
  • Terminal configuration: Line and Load End Terminals Standard
  • Manufacturer: Square-D
  • Warranty: 1 Year In-house

Technical Specification

  • Trip range: 1750–3200
  • Protection functions: Overload and Short Circuit Protection
  • Operating mechanism: Thermal Magnetic
  • Lug type: Standard Line and Load End
  • Application: Industrial and commercial electrical distribution systems
  • Mechanical construction: Heavy-duty MCCB design for high fault current endurance

Voltage and Ratings

  • Rated operational voltage: 240 / 480 / 600 VAC
  • Maximum voltage: 600 VAC
  • Frequency: 50/60 Hz
  • Interrupting capacity:
    • 100 kA @ 240 VAC
    • 65 kA @ 480 VAC
    • 35 kA @ 600 VAC
  • Insulation level: Industrial-grade MCCB standard

Product Data

  • Product model: LCL36350
  • Brand: Square-D
  • Frame size: LCL Frame
  • Amperage: 350A
  • Poles: 3 Pole
  • Connection type: Plug-In
  • Application type: Power distribution and circuit protection
  • Accessories compatibility: Supported and configurable per customer requirements

Important Note

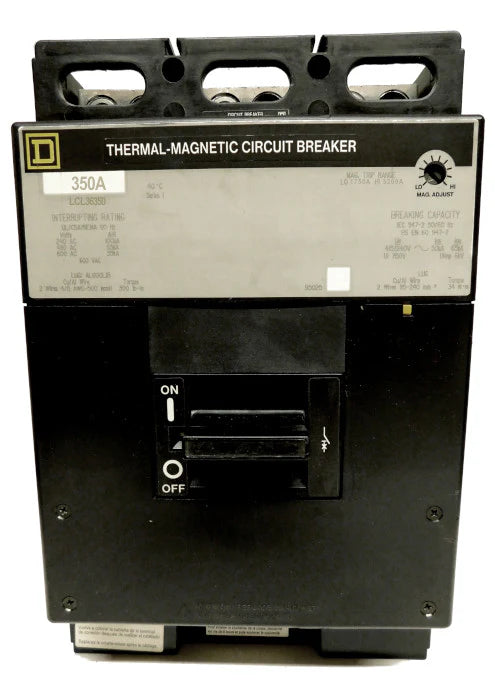

This product image represents a standard base model and is intended for identification purposes only. Actual product configuration, accessories, and installation setup may vary based on customer requirements and application specifications. Accessories ordered together with the breaker can be installed at no additional cost when installation details are provided during checkout. Always verify technical compatibility and application requirements prior to installation or commissioning.
