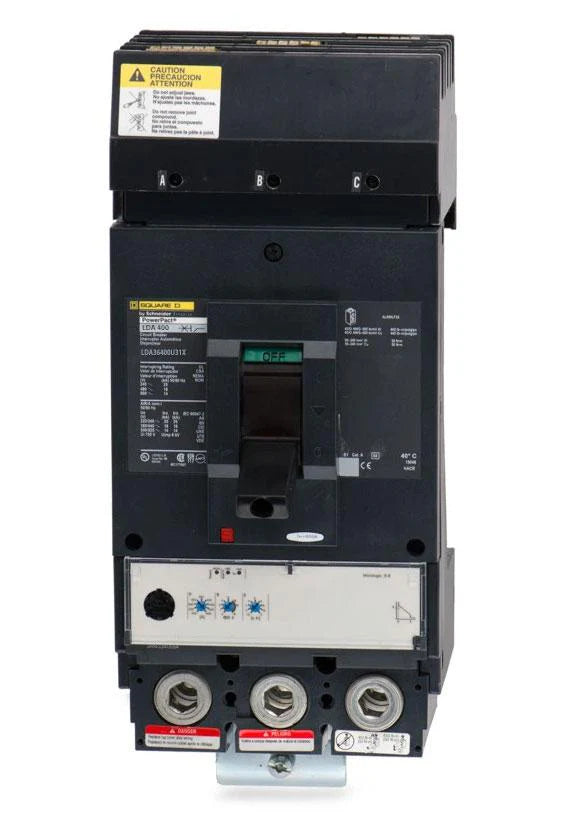

Square D LGA36400U44X PowerPact MCCB – 3 Pole – 400A – I-Line Plug-In – Electronic Trip Unit (MicroLogic 6.3A LSIG) – Molded Case Circuit Breaker with Ground Fault Protection

The Schneider Electric / Square D LGA36400U44X is a PowerPact L-Frame molded case circuit breaker (MCCB) designed for advanced protection of industrial electrical distribution systems. It provides reliable overload, short-circuit, instantaneous, and ground fault protection using a solid-state MicroLogic electronic trip unit, making it ideal for critical power systems, switchboards, and industrial control panels.

Electrical Ratings

• Frame / Rated Current: 400 A
• Voltage Rating: up to 600 V AC
• Phase: 3 Phase
• Poles: 3 Pole
• Interrupting Capacity: 35 kA @ 480 V AC
• Utilization: Industrial power distribution and feeder protection
• Can be used for 2-pole applications (configuration dependent)

Protection and Trip Functions

• Trip Unit Technology: Electronic (Solid State)
• Trip Unit Model: MicroLogic 6.3A
• Protection Functions (LSIG):
  • Long-Time Protection (Overload)
  • Short-Time Protection
  • Instantaneous Protection
  • Ground Fault Protection
• Protection Type: Solid-state electronic
• Advanced metering capability (ammeter-based trip unit variant)
• Adjustable protection settings for system coordination

Configuration and Function

• Device Type: Molded Case Circuit Breaker (MCCB)
• Series: PowerPact L-Frame (LGA Series)
• Mounting Type: I-Line Style Plug-In
• Electrical Connection: I-Line line terminals / plug-in system
• Application Type: Switchboards, enclosures, and industrial distribution systems
• Frame Type: L-Frame heavy-duty construction

Mechanical and Physical Characteristics

• Dimensions (H × W × D): 4.33 × 5.51 × 13.39 in
• Weight: 13.67 lb
• Compact industrial MCCB design
• Plug-in installation for fast maintenance and replacement
• High mechanical durability for harsh industrial environments

Standards and Certifications

• UL Listed
• CSA Approved
• IEC compliant design
• Manufacturer: Schneider Electric / Square D
• Series: PowerPact L-Frame

Features

• High-capacity 400A industrial MCCB for distribution systems
• Advanced MicroLogic 6.3A electronic LSIG trip unit
• Full protection: overload, short circuit, instantaneous, and ground fault
• 35 kA interrupting capacity at 480V for strong fault protection
• I-Line plug-in system for fast installation and serviceability
• Adjustable protection settings for coordination flexibility
• Solid-state electronic sensing for high accuracy and reliability
• Suitable for critical power systems and industrial switchboards
• Long operational life in demanding environments
• Enhanced safety with ground fault protection capability
