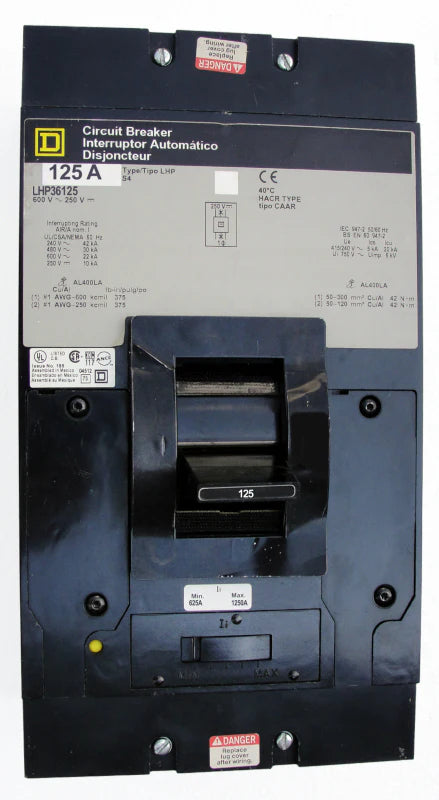

Square-D LHP36125 125A 3P MCCB – Panel Mounted – 600VAC

In stock
SKU: LHP36125-NS
$3,999.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square-D LHP36125 is a molded case circuit breaker designed to provide dependable circuit protection in industrial and commercial electrical distribution systems. Equipped with a 125A thermal magnetic non-interchangeable trip unit, this breaker offers reliable overload and short-circuit protection for demanding applications. Built on the LHP frame platform, it features a panel-mounted configuration for secure installation in switchboards and distribution equipment. Its durable 3-pole construction and high interrupting capacity ensure reliable performance and long-term operational stability.

Product Specification

  • Frame type: LHP Frame (Type L)
  • Rated current: 125 Ampere at 40°C
  • Number of poles: 3 Pole
  • Trip unit type: Thermal Magnetic Non-interchangeable
  • Mounting type: Panel Mounted
  • Terminal configuration: Load End Terminals Only
  • Manufacturer: Square-D
  • Warranty: 1 Year In-house

Technical Specification

  • Trip range: 625–1250
  • Protection functions: Overload and Short Circuit Protection
  • Operating mechanism: Thermal Magnetic
  • Lug type: Standard Load End Only
  • Application: Industrial and commercial electrical distribution systems
  • Mechanical construction: Heavy-duty MCCB design for enhanced durability and fault endurance

Voltage and Ratings

  • Rated operational voltage: 120 / 240 / 480 / 600 VAC
  • Maximum voltage: 600 VAC
  • Frequency: 50/60 Hz
  • Interrupting capacity:
    • 65 kA @ 120 VAC
    • 65 kA @ 240 VAC
    • 35 kA @ 480 VAC
    • 35 kA @ 600 VAC
  • Insulation level: Industrial-grade MCCB standard

Product Data

  • Product model: LHP36125
  • Brand: Square-D
  • Frame size: LHP Frame
  • Amperage: 125A
  • Poles: 3 Pole
  • Connection type: Panel Mounted
  • Application type: Power distribution and circuit protection
  • Accessories compatibility: Supported and configurable per customer requirements

Important Note

This product image represents a standard base model and is intended for identification purposes only. Actual product configuration, accessories, and installation setup may vary depending on customer requirements and application specifications. Accessories ordered together with the breaker can be installed at no additional cost when installation details are provided during checkout. Always verify technical compatibility and application suitability before installation or commissioning.
