Square-D LHP36200 200A 3P MCCB – Panel Mounted – 600VAC

The Square-D LHP36200 is a molded case circuit breaker designed to provide dependable protection for industrial and commercial power distribution systems. It incorporates a 200A thermal magnetic non-interchangeable trip unit, ensuring reliable protection against overload and short-circuit conditions. Built on the LHP frame platform, this breaker is engineered for panel-mounted applications, allowing secure and efficient integration into switchboards and electrical distribution panels. Its rugged 3-pole construction and high interrupting capacity make it suitable for demanding electrical environments requiring stable and continuous operation.

Product Specification

• Frame type: LHP Frame (Type L)
• Rated current: 200 Ampere at 40°C
• Number of poles: 3 Pole
• Trip unit type: Thermal Magnetic Non-interchangeable
• Mounting type: Panel Mounted
• Terminal configuration: Load End Terminals Only
• Manufacturer: Square-D
• Warranty: 1 Year In-house

Technical Specification

• Trip range: 1000–2000
• Protection functions: Overload and Short Circuit Protection
• Operating mechanism: Thermal Magnetic
• Lug type: Standard Load End Only
• Application: Industrial and commercial electrical distribution systems
• Mechanical construction: Heavy-duty MCCB design for enhanced durability and fault endurance

Voltage and Ratings

• Rated operational voltage: 120 / 240 / 480 / 600 VAC
• Maximum voltage: 600 VAC
• Frequency: 50/60 Hz
• Interrupting capacity:
  • 65 kA @ 120 VAC
  • 65 kA @ 240 VAC
  • 35 kA @ 480 VAC
  • 35 kA @ 600 VAC
• Insulation level: Industrial-grade MCCB standard

Product Data

• Product model: LHP36200
• Brand: Square-D
• Frame size: LHP Frame
• Amperage: 200A
• Poles: 3 Pole
• Connection type: Panel Mounted
• Application type: Power distribution and circuit protection
• Accessories compatibility: Supported and configurable per customer requirements

Important Note

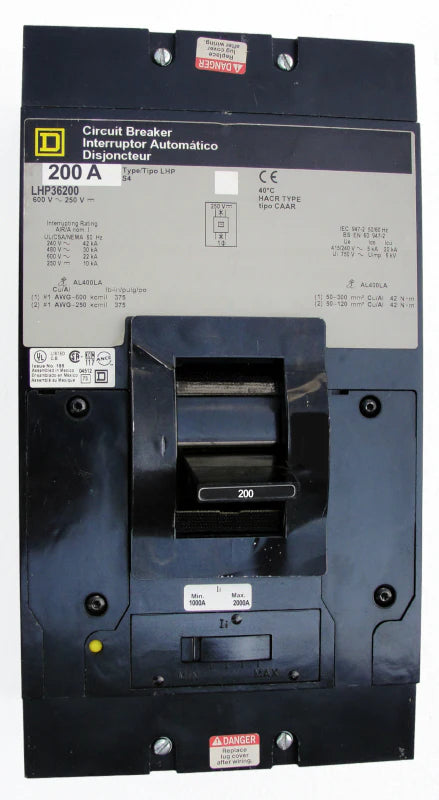

This product image represents a standard base model and is intended for identification purposes only. Actual product configuration, accessories, and installation setup may vary depending on customer requirements and application specifications. Accessories ordered together with the breaker can be installed at no additional cost when installation details are provided during checkout. Always verify technical compatibility and application suitability before installation or commissioning.
