Square D LX1D8G7 Magnetic Coil – TeSys D Series – 120V AC Coil – Replacement Coil for 115A–150A Contactors
Couldn't load pickup availability
Ask an expert

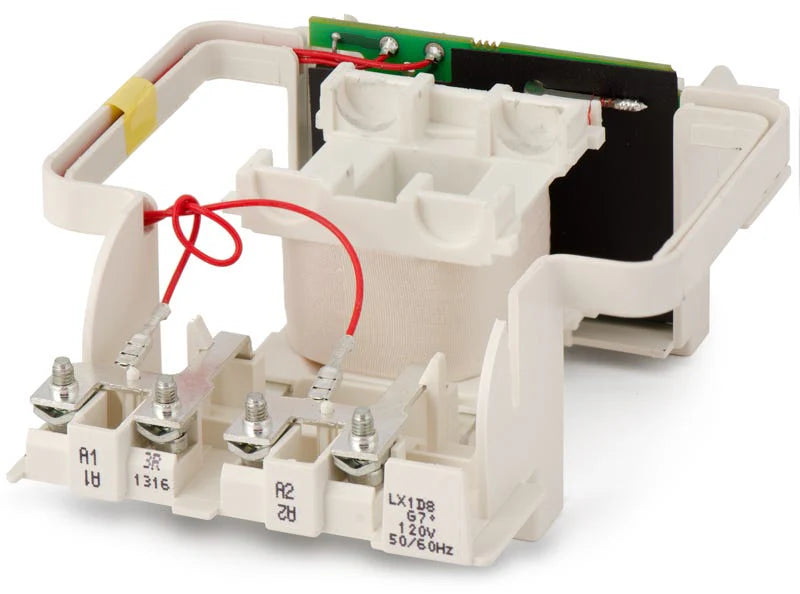

The Square D LX1D8G7 is a replacement magnetic coil from the TeSys D series designed to operate Schneider Electric 115A and 150A contactors. It provides the electromagnetic force required to open and close contactor main contacts reliably in industrial motor control and power switching applications.
Electrical Ratings
- Coil Voltage: 120 V AC
- Frequency: 50/60 Hz
- Phase: Single-phase coil control
- Application Type: Contactor actuation coil
- Operating Function: Electromagnetic switching
Configuration and Function
- Device Type: Magnetic Contactor Coil
- Series: TeSys D
- Primary Function: Energizing and de-energizing contactor mechanism
- Operation: Electromagnetic induction coil
- Compatibility: Designed for 115A and 150A TeSys D contactors
Compatibility
- For Use With:
- 115A TeSys D contactors
- 150A TeSys D contactors
- System Type: Industrial motor control contactors
- Application: Motor starters, industrial switching systems
Mechanical and Physical Characteristics
- Operating Temperature Range: -5 °C to 60 °C
- Compact coil assembly design
- Designed for easy field replacement
- High durability for repeated switching cycles
- Industrial-grade insulation and winding construction
Standards and Certifications
- IEC compliant
- Manufacturer: Schneider Electric / Square D
- Series: TeSys D
- MPN: LX1D8G7
- UPC / GTIN: 785901301622
- Type Magnetic Coil
- Vendor Square D
- Brand Square D
