Square-D LX36100G 100A 3P MCCB – Plug-In Mount – 600VAC

The Square-D LX36100G is a high-performance molded case circuit breaker designed for advanced protection in industrial and commercial electrical distribution systems. Built on the LX (I-Line) frame platform, this breaker features a 600 Amp maximum frame with a 100A electronic non-interchangeable trip unit. It incorporates LSIG trip functions, providing comprehensive protection against long-time overloads, short-time faults, instantaneous short circuits, and ground faults. Its plug-in mounting configuration enables convenient installation and maintenance, while the high interrupting capacity ensures dependable operation in demanding electrical environments.

Product Specification

• Frame type: LX (I-Line) Frame
• Maximum frame size: 600 Amp
• Rated current: 100 Ampere at 40°C
• Number of poles: 3 Pole
• Trip unit type: Electronic Non-interchangeable
• Protection functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
• Mounting type: Plug-In
• Rating plug installed: ARP040 Standard
• Terminal configuration: Load End Terminals Standard
• Manufacturer: Square-D
• Warranty: 1 Year In-house

Technical Specification

• Electronic trip technology for precise protection performance
• Integrated LSIG protection functionality
• Operating mechanism: Electronic trip MCCB system
• Lug type: Standard Load End
• Application: Industrial and commercial power distribution systems
• Mechanical construction: Heavy-duty molded case design for high fault endurance
• Suitable for I-Line distribution systems and switchboards

Voltage and Ratings

• Rated operational voltage: 240 / 480 / 600 VAC
• Maximum voltage: 600 VAC
• Frequency: 50/60 Hz
• Interrupting capacity:
  • 100 kA @ 240 VAC
  • 65 kA @ 480 VAC
  • 35 kA @ 600 VAC
• Insulation level: Industrial-grade MCCB standard

Product Data

• Product model: LX36100G
• Brand: Square-D
• Frame size: LX (I-Line) 600A Frame
• Amperage: 100A
• Poles: 3 Pole
• Connection type: Plug-In
• Rating plug: ARP040 Installed Standard
• Application type: Advanced power distribution and circuit protection
• Accessories compatibility: Supported and configurable per customer requirements

Important Note

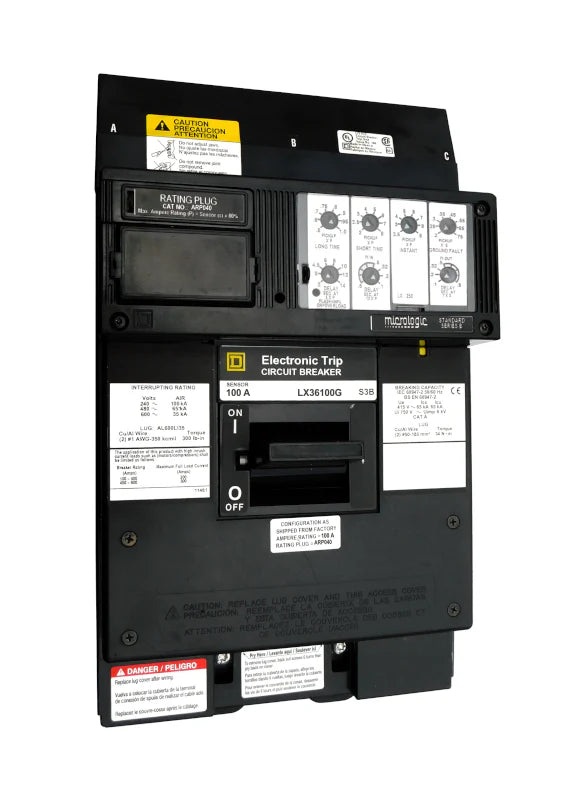

This product image represents a standard base model and is intended for identification purposes only. Actual product configuration, accessories, trip settings, and installation setup may vary depending on customer requirements and application specifications. Accessories ordered together with the breaker can be installed at no additional cost when installation details are provided during checkout. Always verify technical compatibility, trip configuration, and application suitability before installation or commissioning.
