Square D LX36175 175A 3 Pole Molded Case Circuit Breaker – Plug In Mount – 600VAC

The LX36175 by Square D is an LX (I-Line) molded case circuit breaker designed to provide dependable overcurrent protection for industrial and commercial electrical distribution systems. This breaker features an electronic non-interchangeable trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection functions for accurate fault response and improved system coordination. Rated at 175 amperes and housed in a 600 amp maximum frame, the breaker operates at up to 600VAC and includes a factory-installed ARP070 rating plug. The plug-in mounting configuration and standard load-end terminals provide easy installation and reliable operation in demanding applications.

Product Specifications

• Manufacturer: Square D
• Model Number: LX36175
• Product Type: Molded Case Circuit Breaker
• Frame Style: LX (I-Line)
• Mounting Type: Plug In
• Trip Unit Type: Electronic Non-Interchangeable
• Trip Functions: LSI (Long-Time, Short-Time, Instantaneous)
• Rated Current: 175 Ampere
• Number of Poles: 3 Pole
• Maximum Frame Capacity: 600 Amp
• Standard Lug Type: Load End
• Rating Plug Included: ARP070
• Warranty: 1 Year

Technical Specifications

• Calibrated for operation at 40°C ambient temperature
• Electronic trip system for precision protection
• Non-interchangeable trip unit design
• Suitable for I-Line distribution systems
• High interrupting capacity performance
• Plug-in connection for efficient installation
• Standard load-end terminals factory installed
• Designed for industrial and commercial applications

Voltage and Ratings

• Maximum Operating Voltage: 600 VAC
• Interrupting Rating at 240 VAC: 100 kA
• Interrupting Rating at 480 VAC: 65 kA
• Interrupting Rating at 600 VAC: 35 kA
• Frequency Rating: 50/60 Hz
• Current Rating: 175 Ampere

Product Data

• Brand: Square D
• Series: LX (I-Line)
• Model: LX36175
• Frame Type: L Frame
• Connection Type: Plug In
• Pole Configuration: 3 Pole
• Protection Type: LSI Electronic Trip
• Included Accessory: ARP070 Rating Plug
• Application: Power distribution and circuit protection

Important Note

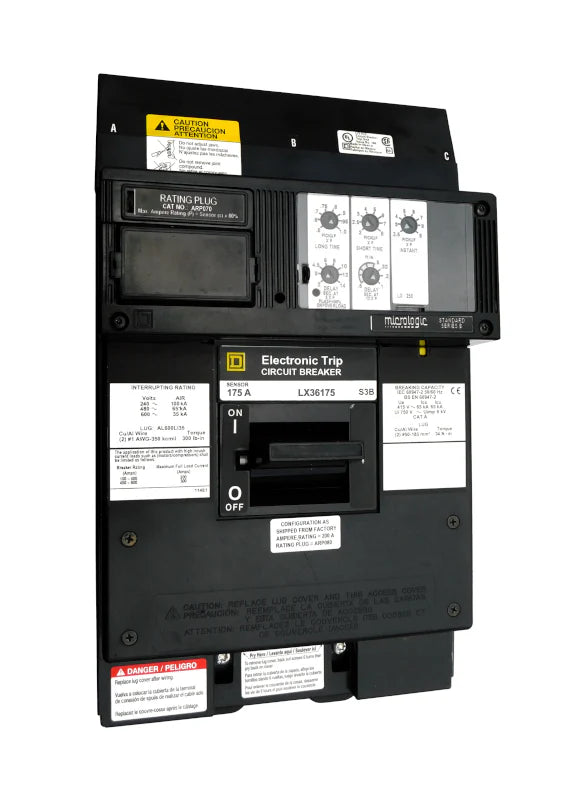

The product image shown is for identification purposes only and may not represent the exact product configuration. Accessories ordered with the breaker can be professionally installed according to customer specifications at no additional charge. This breaker includes a one-year in-house warranty covering shipping, repairs, labor, and replacement parts required for recertification. Warranty coverage excludes damage caused by misuse, mishandling, or normal operational wear and tear.
