Square D LX36175G 175A 3 Pole Molded Case Circuit Breaker – Plug In Mount – 600VAC

The LX36175G by Square D is a high-performance LX (I-Line) molded case circuit breaker engineered for advanced protection in commercial and industrial electrical distribution systems. Equipped with an electronic non-interchangeable trip unit featuring LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) protection functions, this breaker delivers precise fault response and enhanced system coordination. Rated at 175 amperes with a 600 amp maximum frame capacity, the breaker operates up to 600VAC and includes a factory-installed ARP070 rating plug. Its plug-in mounting design and standard load-end terminals provide efficient installation and dependable operation in demanding environments.

Product Specifications

• Manufacturer: Square D
• Model Number: LX36175G
• Product Type: Molded Case Circuit Breaker
• Frame Style: LX (I-Line)
• Mounting Type: Plug In
• Trip Unit Type: Electronic Non-Interchangeable
• Trip Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
• Rated Current: 175 Ampere
• Number of Poles: 3 Pole
• Maximum Frame Capacity: 600 Amp
• Standard Lug Type: Load End
• Rating Plug Included: ARP070
• Warranty: 1 Year

Technical Specifications

• Calibrated for operation at 40°C ambient temperature
• Electronic trip protection system
• Integrated ground fault protection capability
• Non-interchangeable trip unit construction
• Designed for I-Line distribution systems
• High interrupting capacity performance
• Plug-in mounting for easy installation
• Standard load-end terminals factory installed

Voltage and Ratings

• Maximum Operating Voltage: 600 VAC
• Interrupting Rating at 240 VAC: 100 kA
• Interrupting Rating at 480 VAC: 65 kA
• Interrupting Rating at 600 VAC: 35 kA
• Frequency Rating: 50/60 Hz
• Current Rating: 175 Ampere

Product Data

• Brand: Square D
• Series: LX (I-Line)
• Model: LX36175G
• Frame Type: L Frame
• Connection Type: Plug In
• Pole Configuration: 3 Pole
• Protection Type: LSIG Electronic Trip
• Included Accessory: ARP070 Rating Plug
• Application: Circuit protection and power distribution

Important Note

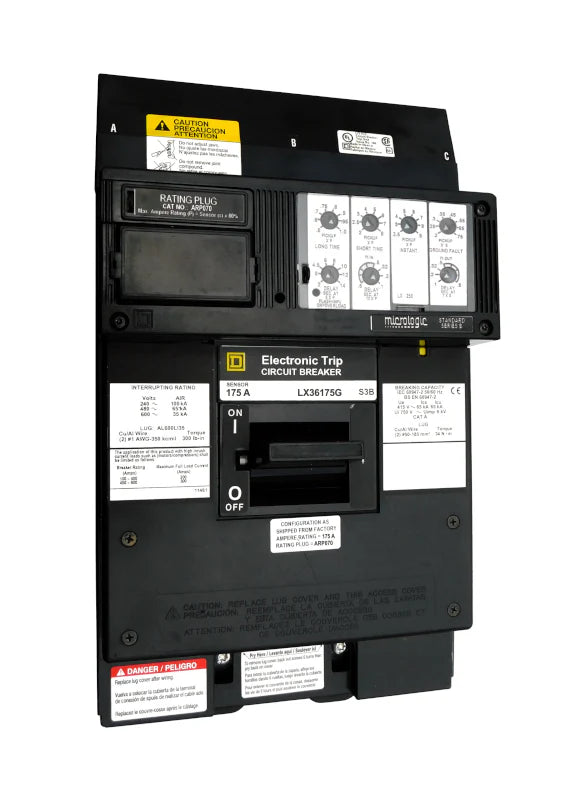

The product image displayed is for identification purposes only and may not represent the exact breaker configuration. Accessories purchased with the breaker can be professionally installed to meet customer-specific configuration requirements at no additional cost. This breaker includes a one-year in-house warranty covering shipping, repair services, replacement parts, and labor necessary for recertification. Warranty coverage excludes damage caused by misuse, improper handling, or normal operational wear and tear.
