Square D LX36350G 350A 3 Pole Molded Case Circuit Breaker – Plug In Mount – 600VAC

The LX36350G by Square D is a high-capacity LX (I-Line) molded case circuit breaker designed for advanced protection in industrial and commercial electrical systems. Equipped with an electronic non-interchangeable trip unit featuring LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) protection functions, this breaker provides precise fault detection, selective coordination, and enhanced ground fault protection. Rated at 350 amperes and built on a 600 amp maximum frame platform, the breaker operates up to 600VAC and includes a factory-installed ARP088 rating plug. Its plug-in mounting configuration and standard load-end terminals ensure dependable installation and reliable long-term operation.

Product Specifications

• Manufacturer: Square D
• Model Number: LX36350G
• Product Type: Molded Case Circuit Breaker
• Frame Style: LX (I-Line)
• Mounting Type: Plug In
• Trip Unit Type: Electronic Non-Interchangeable
• Trip Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
• Rated Current: 350 Ampere
• Number of Poles: 3 Pole
• Maximum Frame Capacity: 600 Amp
• Standard Lug Type: Load End
• Rating Plug Included: ARP088
• Warranty: 1 Year

Technical Specifications

• Calibrated for operation at 40°C ambient temperature
• Electronic trip protection system for precise fault response
• Integrated ground fault protection capability
• Non-interchangeable trip unit construction
• Designed for I-Line electrical distribution systems
• Plug-in mounting configuration for simplified installation
• High interrupting capacity performance
• Factory-installed load-end terminals

Voltage and Ratings

• Maximum Operating Voltage: 600 VAC
• Interrupting Rating at 240 VAC: 100 kA
• Interrupting Rating at 480 VAC: 65 kA
• Interrupting Rating at 600 VAC: 35 kA
• Frequency Rating: 50/60 Hz
• Current Rating: 350 Ampere

Product Data

• Brand: Square D
• Series: LX (I-Line)
• Model: LX36350G
• Frame Type: L Frame
• Connection Type: Plug In
• Pole Configuration: 3 Pole
• Protection Type: LSIG Electronic Trip
• Included Accessory: ARP088 Rating Plug
• Application: Industrial and commercial circuit protection

Important Note

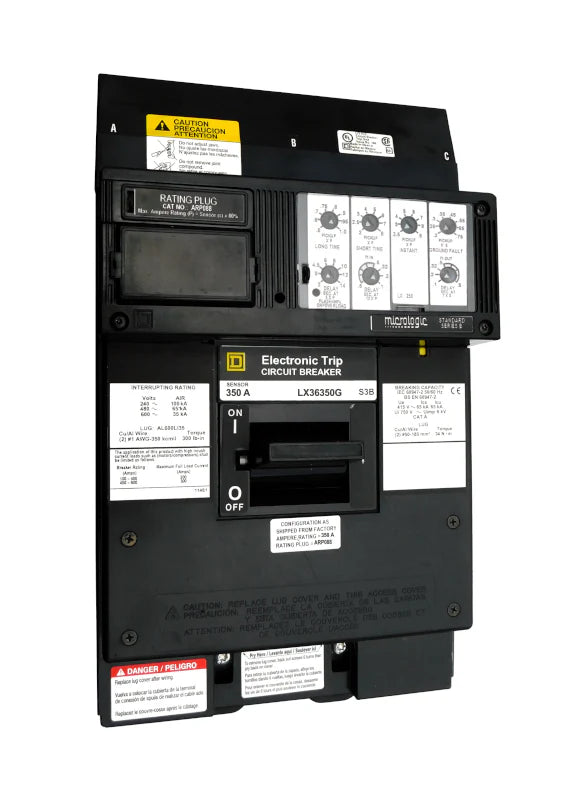

The product image shown is for identification purposes only and may not represent the exact breaker configuration supplied. Accessories purchased together with the breaker can be professionally installed according to customer-specific requirements at no additional charge. This breaker includes a one-year in-house warranty covering shipping, repair services, replacement parts, and labor required for recertification. Warranty coverage excludes damage caused by misuse, improper handling, incorrect installation, or normal operational wear and tear.
