Square D LXI36100G 100A 3 Pole Molded Case Circuit Breaker – Plug In Mount – 600VAC

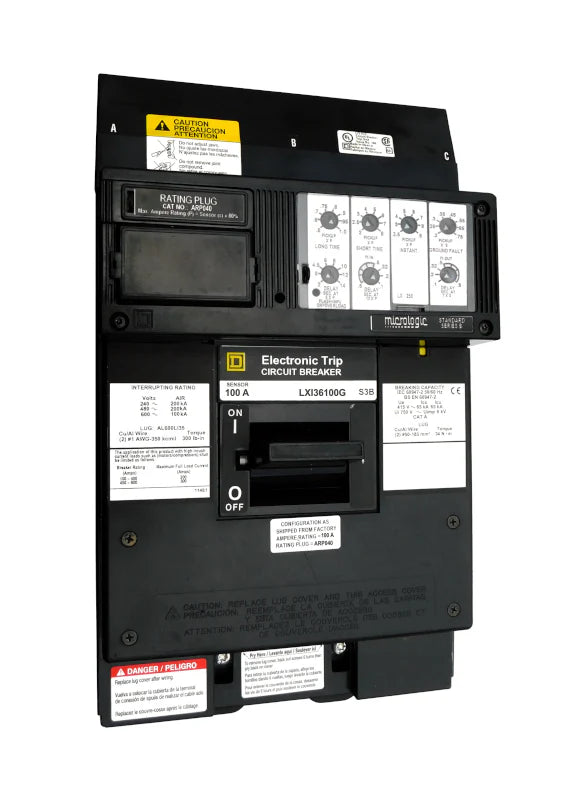

The LXI36100G by Square D is a current-limiting, 100% rated LX (I-Line) molded case circuit breaker designed for high-performance protection in demanding industrial and commercial power distribution systems. It features an electronic non-interchangeable trip unit with LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) protection functions, providing precise fault detection, enhanced coordination, and improved system safety. Rated at 100 amperes with a 600 amp maximum frame capacity, this breaker operates up to 600VAC and delivers high interrupting performance suitable for critical applications. Its plug-in mounting configuration and standard load-end terminals ensure efficient installation and reliable operation.

Product Specifications

• Manufacturer: Square D
• Model Number: LXI36100G
• Product Type: Molded Case Circuit Breaker
• Frame Style: LXI (I-Line)
• Mounting Type: Plug In
• Trip Unit Type: Electronic Non-Interchangeable
• Trip Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
• Rated Current: 100 Ampere
• Number of Poles: 3 Pole
• Maximum Frame Capacity: 600 Amp
• Rated Design: 100% Rated, Current Limiting
• Standard Lug Type: Load End
• Rating Plug Included: ARP040
• Warranty: 1 Year

Technical Specifications

• Calibrated for operation at 40°C ambient temperature
• Current-limiting breaker design for enhanced protection performance
• Electronic trip system for accurate fault response
• Integrated ground fault protection capability
• Non-interchangeable trip unit construction
• Designed for I-Line electrical distribution systems
• Plug-in mounting for simplified installation
• High interrupting capacity construction
• Factory-installed load-end terminals

Voltage and Ratings

• Maximum Operating Voltage: 600 VAC
• Interrupting Rating at 240 VAC: 200 kA
• Interrupting Rating at 480 VAC: 200 kA
• Interrupting Rating at 600 VAC: 100 kA
• Frequency Rating: 50/60 Hz
• Current Rating: 100 Ampere

Product Data

• Brand: Square D
• Series: LXI (I-Line)
• Model: LXI36100G
• Frame Type: L Frame
• Connection Type: Plug In
• Pole Configuration: 3 Pole
• Protection Type: LSIG Electronic Trip
• Application: High-performance industrial and commercial circuit protection

Important Note

The product image displayed is for identification purposes only and may not represent the exact configuration supplied. Accessories ordered with the breaker can be installed according to customer-specific requirements at no additional cost. This breaker includes a one-year in-house warranty covering shipping, repair services, labor, and replacement parts required for recertification. Warranty coverage excludes damage caused by misuse, improper installation, or normal operational wear and tear.
