Square D LXI36125 125A 3 Pole Molded Case Circuit Breaker – Plug In Mount – 600VAC

The LXI36125 by Square D is a current-limiting, 100% rated LXI (I-Line) molded case circuit breaker designed for high-performance protection in industrial and commercial electrical distribution systems. It features an electronic non-interchangeable trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection functions, ensuring precise fault interruption and reliable system coordination. Rated at 125 amperes with a 600 amp maximum frame, the breaker operates up to 600VAC and delivers high interrupting capacity suitable for demanding applications. Its plug-in mounting configuration and standard load-end terminals provide efficient installation and dependable operation.

Product Specifications

• Manufacturer: Square D
• Model Number: LXI36125
• Product Type: Molded Case Circuit Breaker
• Frame Style: LXI (I-Line)
• Mounting Type: Plug In
• Trip Unit Type: Electronic Non-Interchangeable
• Trip Functions: LSI (Long-Time, Short-Time, Instantaneous)
• Rated Current: 125 Ampere
• Number of Poles: 3 Pole
• Maximum Frame Capacity: 600 Amp
• Rated Design: 100% Rated, Current Limiting
• Standard Lug Type: Load End
• Rating Plug Included: ARP050
• Warranty: 1 Year

Technical Specifications

• Calibrated for operation at 40°C ambient temperature
• Current-limiting breaker design for enhanced protection performance
• Electronic trip system for precise fault response
• Non-interchangeable trip unit construction
• Designed for I-Line distribution systems
• Plug-in mounting configuration for simplified installation
• High interrupting capacity construction
• Factory-installed load-end terminals

Voltage and Ratings

• Maximum Operating Voltage: 600 VAC
• Interrupting Rating at 240 VAC: 200 kA
• Interrupting Rating at 480 VAC: 200 kA
• Interrupting Rating at 600 VAC: 100 kA
• Frequency Rating: 50/60 Hz
• Current Rating: 125 Ampere

Product Data

• Brand: Square D
• Series: LXI (I-Line)
• Model: LXI36125
• Frame Type: L Frame
• Connection Type: Plug In
• Pole Configuration: 3 Pole
• Protection Type: LSI Electronic Trip
• Application: Industrial and commercial circuit protection with high interrupting capacity

Important Note

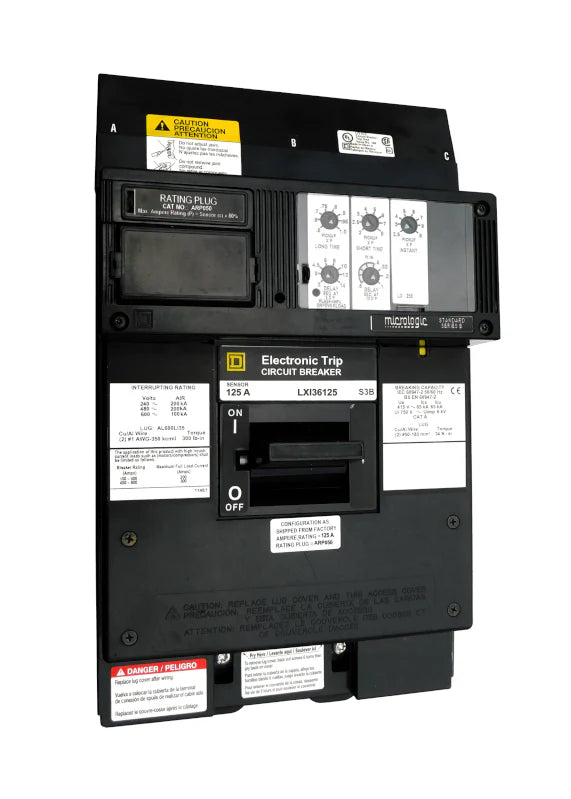

The product image shown is for identification purposes only and may not represent the exact breaker configuration supplied. Accessories purchased with the breaker can be installed according to customer-specific requirements at no additional cost. This breaker includes a one-year in-house warranty covering shipping, repair services, labor, and replacement parts required for recertification. Warranty coverage excludes damage caused by misuse, improper installation, or normal operational wear and tear.
