Square-D LXIL36100 100A 3 Pole Current Limiting MCCB – Bolt-On Mount – 600V AC

In stock
SKU: LXIL36100-NS
$3,599.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square-D LXIL36100 is a high-performance molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. It features a current-limiting LXIL frame with a 100% rated construction and a 250A sensor size, offering precise protection through an electronic non-interchangeable trip unit with LSI functions. This breaker is engineered to handle demanding electrical environments while ensuring system safety against overloads, short circuits, and fault conditions. With high interrupting capacity ratings up to 200 kA at 240V and 480V, it delivers strong fault-clearing performance in critical applications.

Product Specification

  • Manufacturer: Square-D
  • Model: LXIL36100
  • Frame Type: LXIL
  • Rated Current (Amperage): 100A (at 40°C)
  • Sensor Size: 250A
  • Number of Poles: 3
  • Mounting Type: Bolt-On
  • Trip Unit Type: Electronic Non-Interchangeable (LSI Functions)
  • Connection Type: Line and Load Terminals Standard
  • Application: Industrial / Commercial Power Distribution

Technical Specification

  • Interrupting Capacity:
    • 200 kA @ 240 VAC
    • 200 kA @ 480 VAC
    • 100 kA @ 600 VAC
  • Frame Rating: Current Limiting Type
  • Trip Functions: Long Time, Short Time, Instantaneous (LSI)
  • Plug Rating: ARP040 Rating Plug Installed Standard
  • Insulation System: High-durability industrial grade
  • Operating Performance: High fault-clearing capability

Voltage and Ratings

  • Rated Operational Voltage: 240 / 480 / 600 VAC
  • Maximum Voltage Rating: 600 VAC
  • Short Circuit Breaking Capacity: Up to 200 kA
  • Frequency: 50/60 Hz
  • Rated Current Temperature Base: 40°C

Product Data

  • Frame Size: L Frame
  • Connection Type: Bolt-On
  • Terminal Type: Line and Load Standard Lugs
  • Installation Type: Panel / Switchboard Mounting
  • Accessories Compatibility: Supports factory-installed accessories configuration
  • Warranty: 1 Year (In-house service for new and reconditioned units)

Important Note

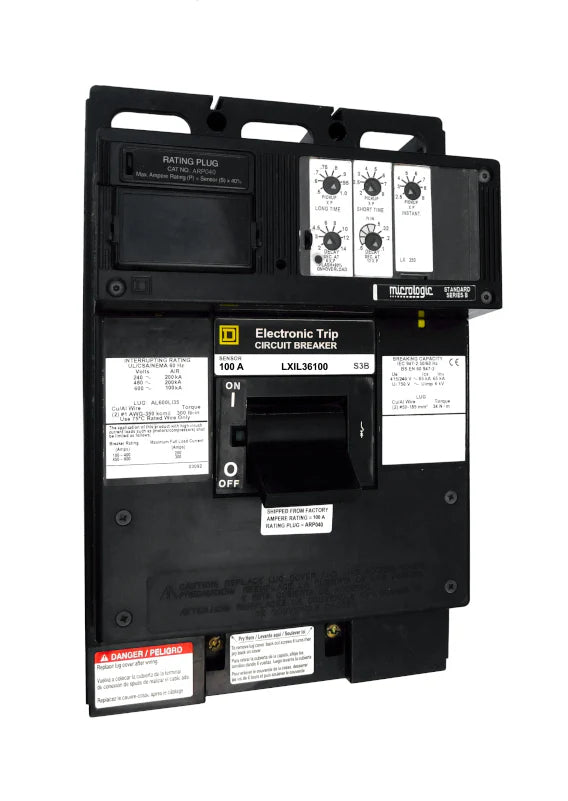

This product image represents a base model and is for identification purposes only. Actual configuration may vary depending on selected accessories or application requirements. Accessories can be installed at no additional cost when ordered together; customers should provide configuration details during checkout to ensure proper assembly and setup.
