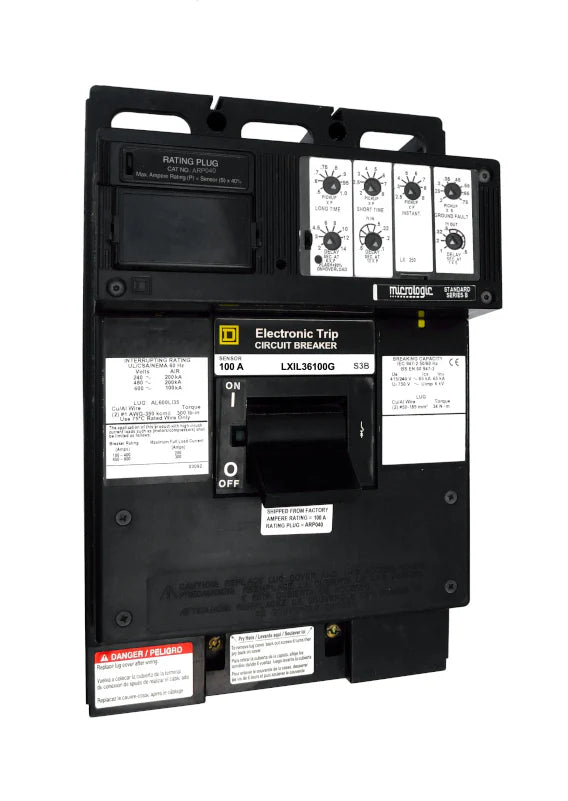

Square-D LXIL36100 100A 3 Pole Current Limiting MCCB – Bolt-On Mount – 600V AC

In stock
SKU: LXIL36100-NS
$3,599.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square-D LXIL36100 molded case circuit breaker is a high-reliability protection device designed for demanding electrical distribution systems. Built on the LXIL frame platform, it delivers current-limiting performance with a 100% rated design and a 250A sensor size for enhanced system coordination. The electronic non-interchangeable trip unit with LSIG functions provides advanced protection including long-time, short-time, instantaneous, and ground fault detection. With a high interrupting capacity of up to 200 kA at 240/480 VAC, this breaker is suitable for critical industrial and commercial applications where system stability and fault protection are essential.

Product Specification

  • Manufacturer: Square-D
  • Model: LXIL36100
  • Frame Type: LXIL
  • Rated Current (Amperage): 100A at 40°C
  • Sensor Size: 250A
  • Number of Poles: 3
  • Mounting Type: Bolt-On
  • Trip Unit Type: Electronic Non-Interchangeable
  • Trip Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
  • Connection Type: Line and Load Terminals Standard
  • Application: Industrial and Commercial Power Distribution

Technical Specification

  • Interrupting Capacity:
    • 200 kA @ 240 VAC
    • 200 kA @ 480 VAC
    • 100 kA @ 600 VAC
  • Frame Type: Current Limiting
  • Protection Functions: LSIG Protection System
  • Rating Plug: ARP040 Installed Standard
  • Performance Type: High Fault Current Withstand Capability
  • Operating System: Electronic Trip Unit

Voltage and Ratings

  • Rated Operational Voltage: 240 / 480 / 600 VAC
  • Maximum Voltage Rating: 600 VAC
  • Frequency: 50/60 Hz
  • Short Circuit Breaking Capacity: Up to 200 kA
  • Rated Current Base Temperature: 40°C

Product Data

  • Frame Size: L Frame
  • Connection Type: Bolt-On
  • Terminal Type: Standard Line and Load
  • Installation Type: Panel/Switchboard Mounted
  • Accessories: Compatible with configured accessory installations
  • Warranty: 1 Year (In-house service for new and certified reconditioned units)

Important Note

This product image is for identification purposes only and may represent a base model. Actual product configuration may vary depending on selected accessories or system requirements. Accessories ordered with the breaker can be installed at no additional cost when proper configuration details are provided at checkout.
