Square-D LXL36100G 100A 3 Pole LSIG MCCB – Bolt-On Mount – 600V AC

The Square-D LXL36100G molded case circuit breaker is engineered for dependable protection in industrial and commercial power distribution systems. Built on the LXL frame platform, it incorporates a 250A sensor size and an advanced electronic non-interchangeable trip unit with LSIG protection functions, offering enhanced safety through long-time, short-time, instantaneous, and ground fault protection. Designed for robust fault interruption, it delivers interrupting capacities up to 100 kA at 240 VAC, 65 kA at 480 VAC, and 35 kA at 600 VAC. This makes it suitable for applications requiring reliable system coordination and comprehensive protection in medium-duty electrical networks.

Product Specification

• Manufacturer: Square-D
• Model: LXL36100G
• Frame Type: LXL
• Rated Current (Amperage): 100A at 40°C
• Sensor Size: 250A
• Number of Poles: 3
• Mounting Type: Bolt-On
• Trip Unit Type: Electronic Non-Interchangeable
• Trip Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
• Connection Type: Line and Load End Terminals Standard
• Application: Industrial and Commercial Power Distribution

Technical Specification

• Interrupting Capacity:
  • 100 kA @ 240 VAC
  • 65 kA @ 480 VAC
  • 35 kA @ 600 VAC
• Frame Type: Current Limiting
• Protection Functions: LSIG Protection System
• Rating Plug: ARP040 Installed Standard
• Operating System: Electronic Trip Unit
• Performance Level: Standard to Enhanced Industrial Duty

Voltage and Ratings

• Rated Operational Voltage: 240 / 480 / 600 VAC
• Maximum Voltage Rating: 600 VAC
• Frequency: 50/60 Hz
• Short Circuit Breaking Capacity: Up to 100 kA
• Rated Current Base Temperature: 40°C

Product Data

• Frame Size: L Frame
• Connection Type: Bolt-On
• Terminal Type: Standard Line and Load
• Installation Type: Panel / Switchboard Mounting
• Accessories Compatibility: Supports configured accessory integration
• Warranty: 1 Year (In-house warranty covering new and certified reconditioned units)

Important Note

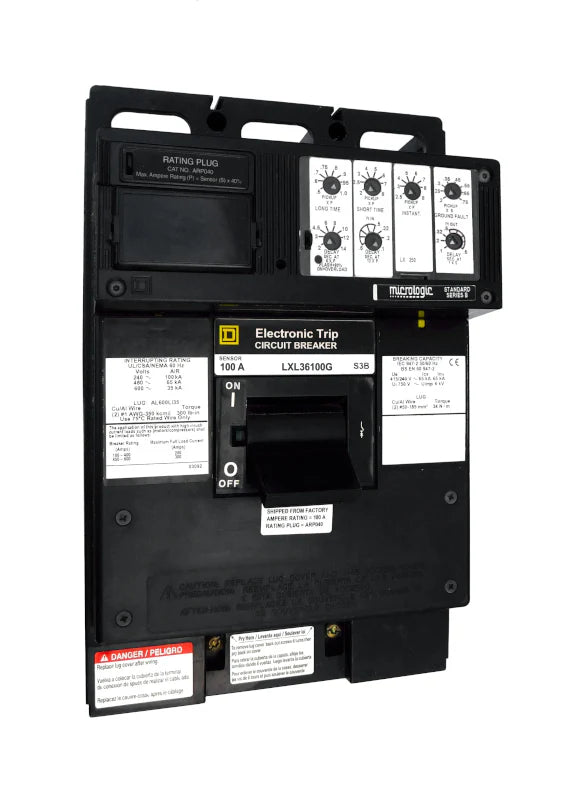

This product image represents a base model and is for identification purposes only. Actual configuration may vary depending on selected accessories or application requirements. Accessories ordered with the breaker can be installed at no additional cost when full configuration details are provided at checkout.
