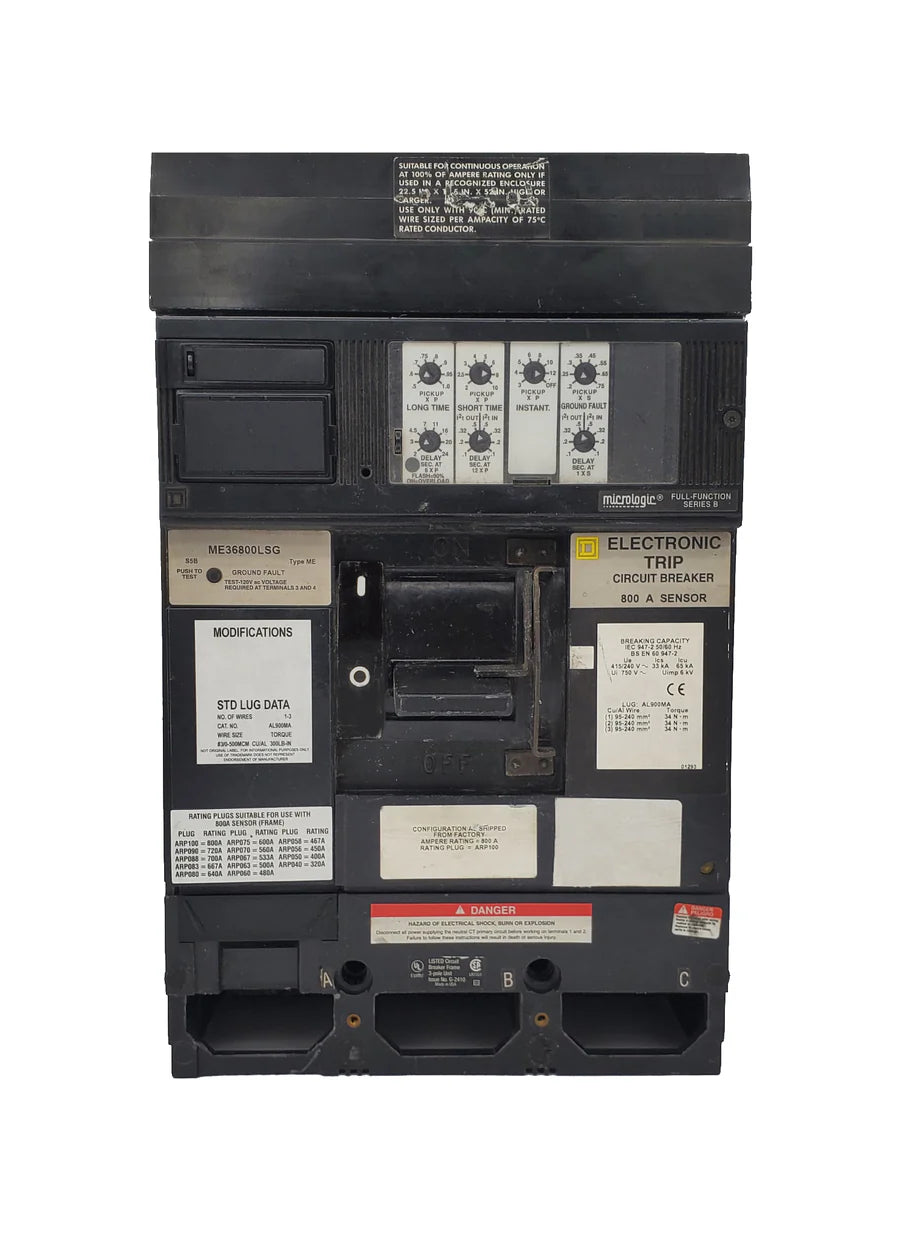

The Square D ME36800LSG 800A 3 Pole Electronic MCCB – I-Line Plug In – 600V is a high-performance molded case circuit breaker engineered for advanced protection in industrial and commercial power distribution systems. Designed with an electronic trip unit and I-Line plug-in configuration, this breaker delivers precise overload, short-circuit, and ground fault protection for critical electrical applications. The LSG trip functions provide adjustable long delay, short delay, and ground fault protection, ensuring enhanced coordination and system reliability. With a 100% rated design and high interrupting capacity, this breaker is ideal for demanding environments requiring dependable protection and operational stability.

Product Specifications

• Brand: Square D
• Model: ME36800LSG
• Rated Current: 800 Ampere
• Number of Poles: 3 Pole
• Breaker Type: Electronic Molded Case Circuit Breaker (MCCB)
• Mount Type: I-Line Plug In
• Frame Type: ME Frame
• Maximum Voltage: 600 VAC
• Trip Unit Type: Electronic Trip Unit
• Trip Functions: LSG (Long Delay, Short Delay, Ground Fault)
• Rating Type: 100% Rated
• Standard Lug Type: Load End
• Application: Industrial and Commercial Power Distribution

Technical Specifications

• Interrupting Capacity:
  • 65 kA @ 480 VAC
• Operating Temperature Reference: 40°C
• Connection Type: I-Line Plug In
• Protection Functions:
  • Adjustable Long Delay Pickup
  • Adjustable Short Delay Pickup
  • Adjustable Ground Fault Pickup
• Ground Fault Delay: Adjustable Flat Response
• Short Delay Time: Fixed I²t Response or Adjustable Flat Response
• Terminal Configuration: Load End Terminals Standard
• Electronic Protection Mechanism
• High Interrupting Capacity Design

Voltage and Ratings

• Rated Operational Voltage: Up to 600 VAC
• Current Rating: 800A
• Pole Configuration: 3 Pole
• Interrupting Rating at 480 VAC: 65 kA
• Frequency: 50/60 Hz
• Temperature Calibration: 40°C
• 100% Rated Breaker Design
• Suitable for High-Demand Electrical Distribution Systems

Product Data

• Manufacturer: Square D
• Product Condition: New / Certified Reconditioned (Depending on Availability)
• Warranty: 1 Year In-House Warranty
• Connection Style: I-Line Plug In
• Frame Style: ME Frame
• Suitable For: Switchboards, Panelboards, Industrial Distribution Systems, and Commercial Electrical Installations
• Accessory Installation: Available at No Additional Cost with Breaker Purchase
• Packaging: Standard Industrial Packaging
• Country of Origin: USA
