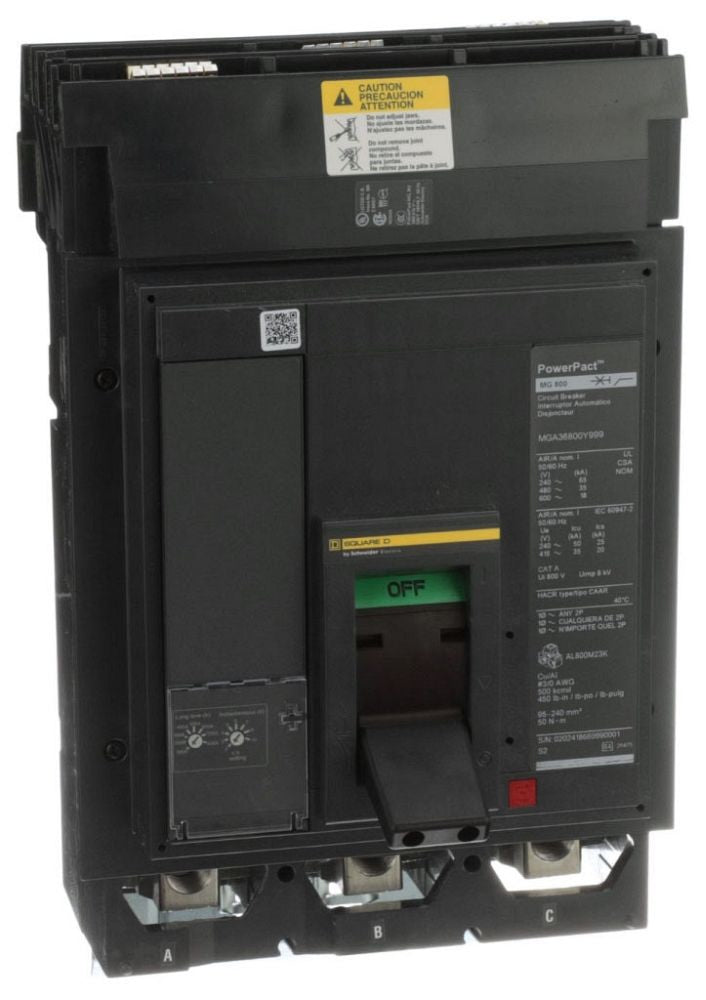

Square D MGA36800E10 PowerPact M-Frame MCCB – 3 Pole – 800A – Interchangeable Trip Unit – Molded Case Circuit Breake

The Square D MGA36800E10 is a PowerPact M-Frame molded case circuit breaker designed for high-capacity industrial power distribution and protection. It is part of Schneider Electric’s EcoStruxure-ready breaker platform and is used in switchboards and panelboards to provide reliable overload and short-circuit protection for large three-phase electrical systems. With an interchangeable trip unit design, it supports flexible system configuration and maintenance.

Electrical Ratings

• Frame / Rated Current: 800 A
• Phase: 3 Phase
• Poles: 3 Pole
• Voltage Rating: (M-Frame standard application range, system dependent)
• Utilization: Industrial power distribution and feeder protection
• Sub-category: Interchangeable trip breaker

Protection and Trip Functions

• Trip Unit Type: Interchangeable electronic trip unit
• Protection Capability: Overload and short-circuit protection (system configurable)
• Application Type: High-capacity feeder and distribution protection
• Trip System: Modular removable trip architecture

Configuration and Function

• Device Type: Molded Case Circuit Breaker (MCCB)
• Series: PowerPact MGA (M-Frame platform)
• Mounting Type: Switchboard / panelboard compatible (M-Frame system)
• Application: Industrial switchboards, power distribution centers, large feeders
• Platform: EcoStruxure Machine / SCADA compatible ecosystem

Mechanical and Physical Characteristics

• Heavy-duty M-Frame industrial construction
• Designed for high-current distribution systems
• Modular trip unit replacement capability
• Suitable for large electrical infrastructure systems
• Engineered for long service life in demanding environments

Standards and Compliance

• UL 489 compliant (typical for PowerPact M-Frame series)
• IEC 60947-2 compliant design
• CSA certified (application dependent)
• Manufacturer: Schneider Electric / Square D
• Platform: EcoStruxure Machine SCADA ecosystem

Features

• High-capacity 800A industrial MCCB
• Interchangeable trip unit design for flexibility and maintenance
• Designed for large-scale electrical distribution systems
• Part of Schneider Electric PowerPact M-Frame family
• EcoStruxure integration capability for smart monitoring systems
• Robust construction for harsh industrial environments
• Suitable for switchboards and major feeder protection
• Modular architecture for upgrade and serviceability
