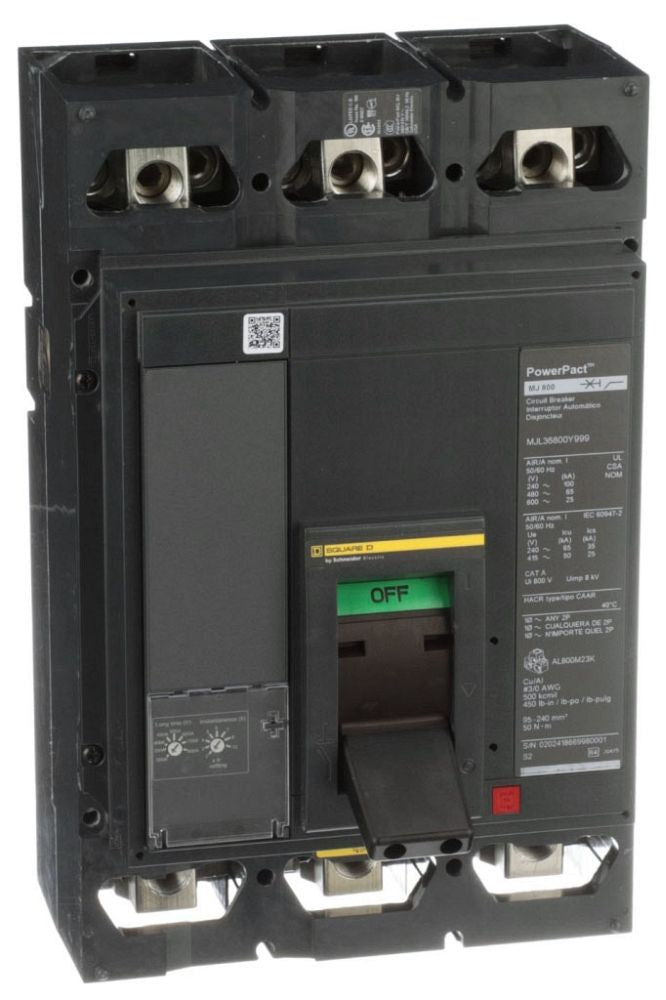

Square D MGL36800E10 PowerPact M-Frame MCCB – 3 Pole – 800A – Interchangeable Trip Unit – Molded Case Circuit Breaker

The Square D MGL36800E10 is a PowerPact M-Frame molded case circuit breaker designed for high-capacity industrial power distribution and protection. It is used in switchboards, panelboards, and large electrical distribution systems to provide reliable overload and short-circuit protection for three-phase power networks. This breaker features an interchangeable trip unit architecture for flexible system configuration and maintenance.

Electrical Ratings

• Frame / Rated Current: 800 A
• Phase: 3 Phase
• Poles: 3 Pole
• Voltage Rating: (M-Frame system dependent, typically up to industrial distribution levels)
• Utilization: Industrial power distribution and feeder protection
• Sub-category: Interchangeable trip breaker

Protection and Trip Functions

• Trip Unit Type: Interchangeable electronic trip system
• Protection Capability: Overload and short-circuit protection (system configurable)
• Trip Architecture: Modular removable trip unit design
• Application Type: Feeder and distribution protection in industrial systems

Configuration and Function

• Device Type: Molded Case Circuit Breaker (MCCB)
• Series: PowerPact M-Frame (MGL Series)
• Mounting Type: Switchboard / panelboard compatible M-Frame system
• Application: Industrial electrical distribution, large feeders, switchboards
• Platform: EcoStruxure Machine / SCADA integrated ecosystem

Mechanical and Physical Characteristics

• Heavy-duty industrial M-Frame construction
• Designed for high-current electrical distribution systems
• Interchangeable trip unit for serviceability and upgrades
• Suitable for critical power infrastructure applications
• Built for long operational life in harsh environments

Standards and Compliance

• UL 489 compliant (PowerPact M-Frame platform standard)
• IEC 60947-2 compliant design
• CSA certified (application dependent)
• Manufacturer: Schneider Electric / Square D
• Series: PowerPact M-Frame

Features

• High-capacity 800A molded case circuit breaker
• Interchangeable trip unit system for flexibility and maintenance
• Designed for industrial switchboards and distribution systems
• Robust M-Frame construction for high fault-current environments
• Part of EcoStruxure-enabled Schneider Electric platform
• Suitable for large feeder protection applications
• Modular architecture for easy upgrades and servicing
