The Square D MHL36350 molded case circuit breaker is a reliable electrical protection device designed for commercial and industrial power distribution systems. Built on the MHL frame style with a thermal magnetic non-interchangeable trip unit, this breaker provides consistent overload and short-circuit protection for medium-capacity electrical applications. Its robust molded case construction, high interrupting capacity, and bolt-on mounting configuration ensure secure installation, dependable operation, and long service life in demanding electrical environments.

Product Specifications

• Brand: Square D
• Model: MHL36350
• Frame Style: MHL
• Product Type: Molded Case Circuit Breaker
• Breaker Type: Thermal Magnetic
• Trip Unit: Non-Interchangeable
• Amperage Rating: 350 Ampere
• Number of Poles: 3 Pole
• Mounting Type: Bolt On
• Maximum Voltage Rating: 600V
• Standard Lug Type: Line and Load End
• Operating Temperature Reference: 40°C
• Warranty: One Year

Technical Specifications

• Thermal magnetic trip mechanism for overload and short-circuit protection
• Non-interchangeable trip unit for fixed protection settings
• Heavy-duty molded case construction for industrial-grade reliability
• High interrupting capacity for improved electrical system safety
• Bolt-on connection design for secure and stable installation
• Designed for commercial and industrial distribution systems
• Consistent interruption performance under varying electrical loads
• Durable internal components for long operational lifespan

Voltage and Ratings

• Rated Current: 350A
• Rated Maximum Voltage: 600V
• Interrupting Capacity: 65kA @ 240 VAC
• Interrupting Capacity: 65kA @ 480 VAC
• Interrupting Capacity: 25kA @ 600 VAC
• Interrupting Capacity: 14kA @ 250 VDC
• Trip Setting Range: 1750–3500
• Frequency Rating: 50/60Hz

Product Data

• Manufacturer: Square D
• Product Category: Molded Case Circuit Breaker
• Series: MHL Frame
• Connection Type: Bolt On
• Frame Type: M
• Pole Configuration: 3 Pole
• Lug Configuration: Line and Load End Terminals Standard
• Condition Support: Certified Reconditioned and New Surplus
• Included Warranty Coverage: Shipping, repairs, parts, and labor for recertification
• Application: Commercial and Industrial Electrical Distribution Systems

Important Note

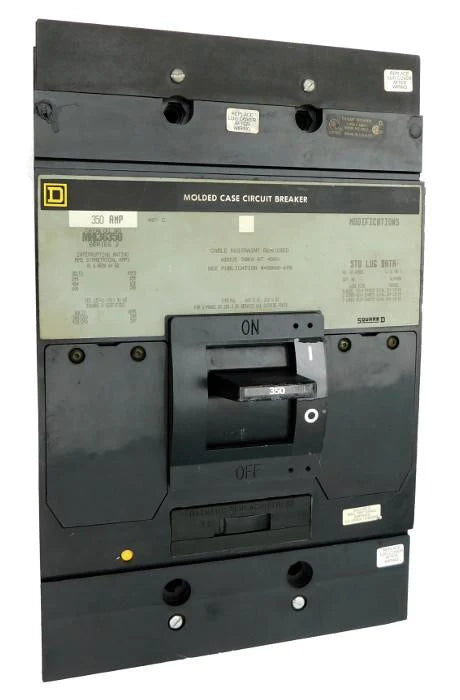

The product image shown represents a base model and is intended for identification purposes only. Accessories purchased together with the breaker can be professionally installed according to customer configuration requirements at no additional cost when installation instructions are provided during checkout. Installation and servicing should only be performed by qualified electrical personnel in accordance with applicable electrical codes and manufacturer guidelines. Warranty coverage excludes damage caused by misuse, improper installation, or normal wear and tear.
