Square D

Square D MHL366001352 600A 3 Poles Thermal Magnetic Molded Case Circuit Breaker – Bolt On – 600V

In stock
SKU: MHL366001352-NS
$6,999.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D MHL366001352 molded case circuit breaker is a high-capacity industrial-grade protection device designed for reliable performance in commercial and industrial electrical distribution systems. Built on the MHL frame style with a thermal magnetic non-interchangeable trip unit, this breaker provides dependable overload and short-circuit protection under demanding electrical conditions. It includes a factory-installed 2A-2B auxiliary contact module, enhancing monitoring and signaling capabilities for system integration. With its rugged molded case construction, high interrupting capacity, and bolt-on mounting configuration, this breaker ensures secure installation, operational reliability, and long service life in critical power applications.

Product Specifications

  • Brand: Square D
  • Model: MHL366001352
  • Frame Style: MHL
  • Product Type: Molded Case Circuit Breaker
  • Breaker Type: Thermal Magnetic
  • Trip Unit: Non-Interchangeable
  • Amperage Rating: 600 Ampere
  • Number of Poles: 3 Pole
  • Mounting Type: Bolt On
  • Maximum Voltage Rating: 600V
  • Standard Lug Type: Line and Load End
  • Auxiliary Contact: 2A-2B Auxiliary Installed
  • Operating Temperature Reference: 40°C
  • Warranty: One Year

Technical Specifications

  • Thermal magnetic trip mechanism for overload and short-circuit protection
  • Non-interchangeable trip unit for fixed protection settings
  • Factory-installed 2A-2B auxiliary contacts for status indication and control integration
  • Heavy-duty molded case construction for industrial-grade durability
  • High interrupting capacity for enhanced electrical system protection
  • Bolt-on mounting design for secure and stable installation
  • Suitable for commercial and industrial power distribution systems
  • Reliable switching and interruption performance under high load conditions

Voltage and Ratings

  • Rated Current: 600A
  • Rated Maximum Voltage: 600V
  • Interrupting Capacity: 65kA @ 240 VAC
  • Interrupting Capacity: 65kA @ 480 VAC
  • Interrupting Capacity: 25kA @ 600 VAC
  • Interrupting Capacity: 14kA @ 250 VDC
  • Trip Setting Range: 3000–6000
  • Frequency Rating: 50/60Hz

Product Data

  • Manufacturer: Square D
  • Product Category: Molded Case Circuit Breaker
  • Series: MHL Frame
  • Connection Type: Bolt On
  • Frame Type: M
  • Pole Configuration: 3 Pole
  • Lug Configuration: Line and Load End Terminals Standard
  • Condition Support: Certified Reconditioned and New Surplus
  • Included Warranty Coverage: Shipping, repairs, parts, and labor for recertification
  • Application: Commercial and Industrial Electrical Distribution Systems

Important Note

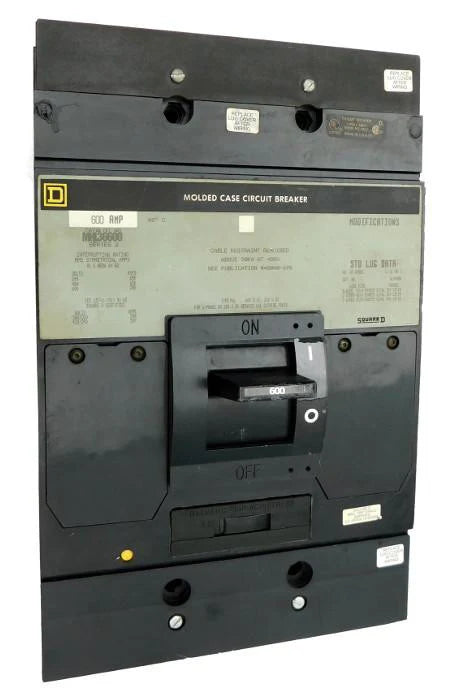

The product image shown represents a base model and is intended for identification purposes only. Accessories purchased together with the breaker can be installed at no additional cost according to customer configuration requirements when installation instructions are provided during checkout. Installation, operation, and maintenance must be performed by qualified electrical personnel in accordance with applicable electrical standards and manufacturer guidelines. Warranty coverage excludes damage caused by misuse, improper installation, or normal wear and tear.
