Square D PAF361200 1200A 3 Pole MCCB – LI Protection – Bolt On Mount – 600V

The Square D PAF361200 is a high-capacity molded case circuit breaker designed for robust industrial and commercial electrical distribution systems. Built on the PAF frame platform, it delivers reliable protection with a 1200 ampere current rating at 40°C and a 3-pole configuration suitable for three-phase applications. Featuring LI (Long-Time and Instantaneous) protection functions, this breaker provides effective safeguarding against overloads and short-circuit faults. Its high interrupting capacity ensures dependable performance in demanding electrical environments where fault current levels can be significant, making it suitable for heavy-duty power distribution applications.

Product Specification

• Manufacturer: Square D
• Model: PAF361200
• Frame Type: PAF Frame (P-Series)
• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 1200 Ampere (at 40°C)
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Protection Functions: LI (Long-Time & Instantaneous)
• Terminal Type: Without standard terminals
• Warranty: 1 Year (In-house warranty support)

Technical Specification

• Frame Style: PAF Heavy-Duty Industrial Frame
• Trip Functions: Long-Time & Instantaneous protection
• Operating System: Three-phase electrical system compatibility
• Connection Type: Bolt-on installation
• Construction: Industrial-grade molded case design
• Application: Power distribution, industrial feeders, and large motor protection
• Configuration: Custom accessory compatibility supported
• Durability: Designed for high fault withstand and continuous operation environments

Voltage and Ratings

• Maximum Voltage Rating: 600 VAC
• Interrupting Capacity:
  • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 42 kA @ 600 VAC
• Current Rating: 1200A
• Poles: 3 Pole
• System Type: Three-phase distribution system

Product Data

• Product Series: PAF Series
• Breaker Family: Square D MCCB
• Installation Type: Fixed bolt-on mounting system
• Lug Configuration: Without standard terminals
• Application Category: Industrial power distribution systems
• Service Type: Field-configurable with accessory installation support
• Warranty Coverage: Repair, parts, and labor included under warranty terms
• Shipping Coverage: Standard shipping included for warranty servicing
• Compliance: Built to Square D industrial-grade standards

Important Note

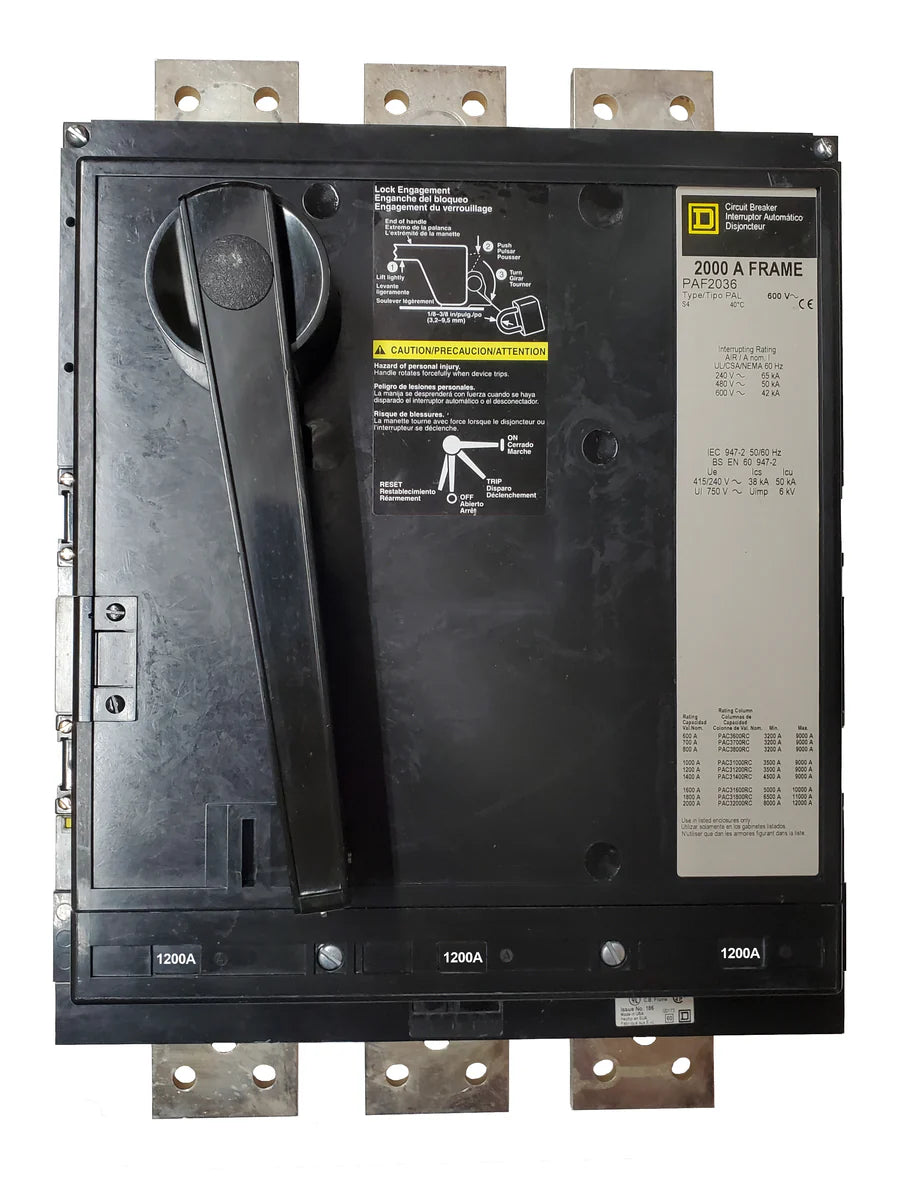

This product image represents a base model and is provided for identification purposes only. Accessories can be installed at no additional cost when ordered together, provided configuration instructions are clearly mentioned during checkout. The breaker includes a 1-year in-house warranty covering repair, parts, labor, and standard shipping, excluding damage caused by misuse or normal operational wear.
