Square D PAF361200G 1200A 3 Pole MCCB – Ground Fault Shunt – Bolt On Mount – 600V

The Square D PAF361200G is a heavy-duty molded case circuit breaker engineered for high-capacity industrial and commercial electrical distribution systems. Designed with a PAF frame structure, this breaker combines reliable circuit protection with integrated ground fault shunt functionality for enhanced operational safety. Rated at 1200 amperes at 40°C and configured with 3 poles for three-phase systems, it features LI (Long-Time and Instantaneous) trip functions to protect against overload and short-circuit conditions. Its high interrupting capacity allows dependable fault clearing performance in demanding electrical environments, making it ideal for critical power applications.

Product Specification

• Manufacturer: Square D
• Model: PAF361200G
• Frame Type: PAF Frame (P-Series)
• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 1200 Ampere (at 40°C)
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Ground Fault Protection: Ground Fault Shunt Included
• Protection Functions: LI (Long-Time & Instantaneous)
• Terminal Type: Without standard terminals
• Warranty: 1 Year (In-house warranty support)

Technical Specification

• Frame Style: PAF Industrial Frame Construction
• Trip Unit Functions: Long-Time and Instantaneous (LI)
• Ground Fault Feature: Integrated ground fault shunt system
• Connection Type: Bolt-on installation
• Operating Configuration: Three-phase electrical system compatible
• Construction Type: Heavy-duty molded case design
• Application: Industrial feeders, commercial distribution systems, and motor protection
• Accessory Compatibility: Supports additional field-installed accessories
• Performance Design: Engineered for high fault withstand capability

Voltage and Ratings

• Maximum Voltage Rating: 600 VAC
• Interrupting Capacity:
  • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 42 kA @ 600 VAC
• Current Rating: 1200A
• Poles: 3 Pole
• System Type: Three-phase electrical distribution systems

Product Data

• Product Series: PAF Series
• Breaker Family: Square D MCCB
• Installation Type: Fixed bolt-on mounting configuration
• Lug Configuration: Without standard terminals
• Special Feature: Ground fault shunt protection
• Application Category: Industrial and commercial power distribution
• Serviceability: Custom accessory installation supported
• Warranty Coverage: Includes repair, parts, labor, and standard shipping
• Compliance: Manufactured to Square D industrial protection standards

Important Note

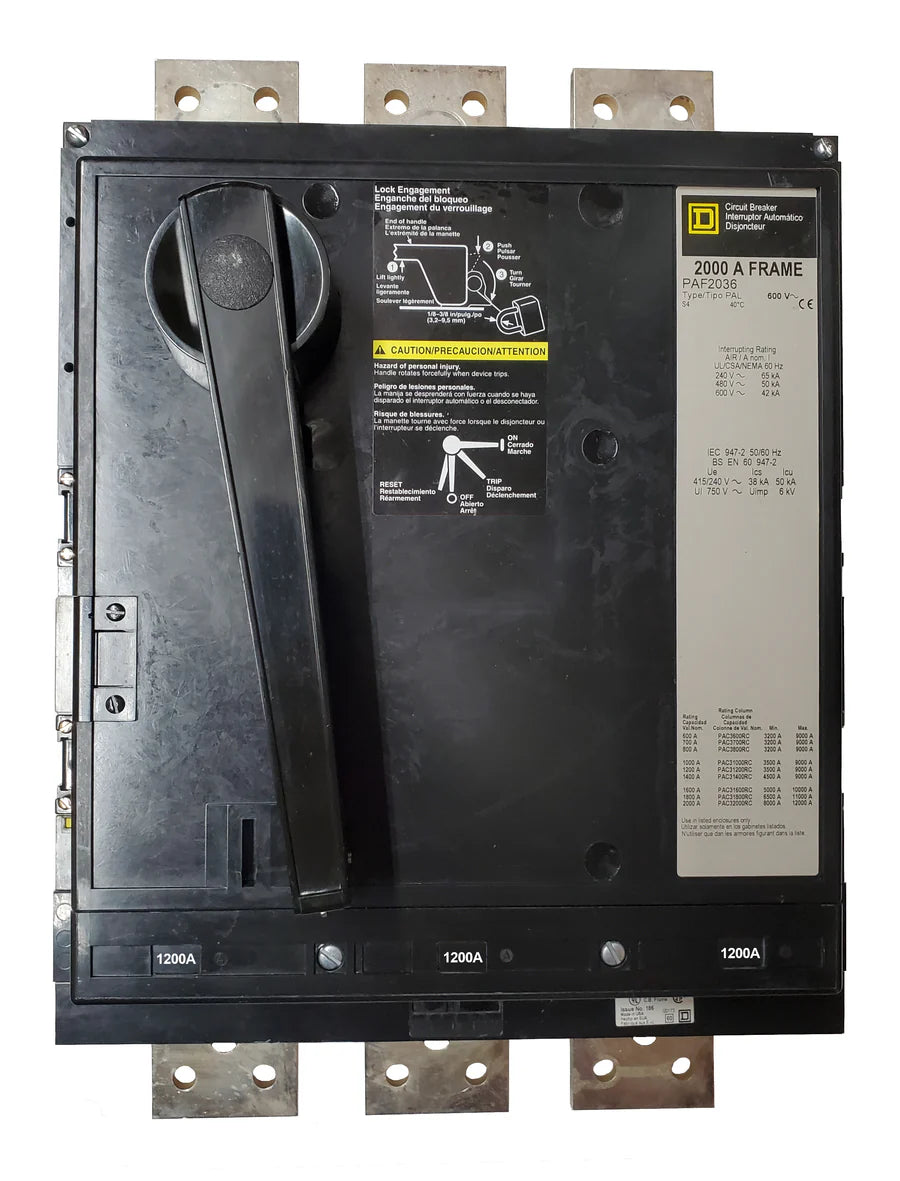

This product image is representative of a base model and is intended for identification purposes only. Accessories ordered together with the breaker can be installed at no additional cost when configuration details are provided during checkout. The product is backed by a 1-year in-house warranty covering repair, replacement parts, labor, and standard shipping charges, excluding damage caused by misuse or normal wear and tear.
