Square D PAF362000G 2000A 3 Pole MCCB – Ground Fault Shunt – Bolt On Mount – 600V

The Square D PAF362000G is a high-capacity molded case circuit breaker engineered for demanding industrial and commercial power distribution systems. Built on the robust PAF frame platform, this breaker provides reliable protection with a 2000 ampere current rating at 40°C and a 3-pole configuration suitable for three-phase electrical networks. It features LI (Long-Time and Instantaneous) protection functions for dependable overload and short-circuit protection. The integrated ground fault shunt enhances system safety by detecting and responding to ground fault conditions, improving overall electrical protection reliability in critical installations. With strong interrupting capacity ratings, this breaker is designed for high-fault, heavy-duty applications.

Product Specification

• Manufacturer: Square D
• Model: PAF362000G
• Frame Type: PAF Frame (P-Series)
• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 2000 Ampere (at 40°C)
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Ground Fault Protection: Ground Fault Shunt Included
• Protection Functions: LI (Long-Time & Instantaneous)
• Terminal Type: Without standard terminals
• Warranty: 1 Year (In-house warranty support)

Technical Specification

• Frame Style: PAF Heavy-Duty Industrial Frame
• Trip Unit Functions: Long-Time and Instantaneous (LI)
• Ground Fault Feature: Integrated ground fault shunt protection
• Connection Type: Bolt-on mounting configuration
• Operating System: Compatible with three-phase electrical systems
• Construction Type: Industrial molded case design
• Application: Main power distribution, industrial feeders, and critical electrical infrastructure
• Accessory Compatibility: Supports field-installed accessories and custom configurations
• Durability: Designed for high-current and high-fault operating conditions

Voltage and Ratings

• Maximum Voltage Rating: 600 VAC
• Interrupting Capacity:
  • 65 kA @ 240 VAC
  • 50 kA @ 480 VAC
  • 42 kA @ 600 VAC
• Current Rating: 2000A
• Poles: 3 Pole
• System Type: Three-phase electrical distribution systems

Product Data

• Product Series: PAF Series
• Breaker Family: Square D MCCB
• Installation Type: Fixed bolt-on mounting
• Lug Configuration: Without standard terminals
• Special Feature: Ground fault shunt protection
• Application Category: Industrial and commercial electrical distribution
• Serviceability: Supports accessory customization and installation
• Warranty Coverage: Includes repair, parts, labor, and standard shipping
• Compliance: Manufactured to Square D industrial safety and performance standards

Important Note

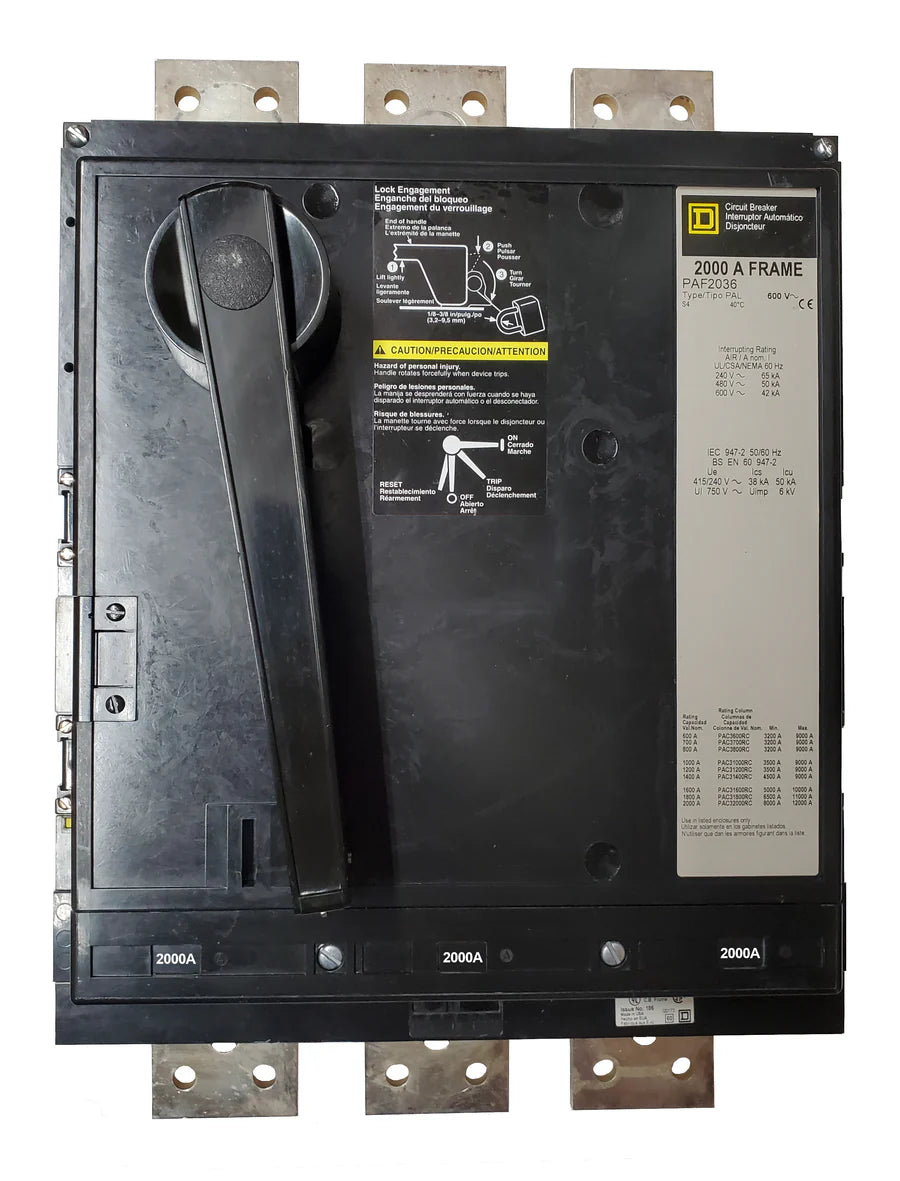

This product image represents a base model and is intended for identification purposes only. Accessories purchased together with the breaker can be installed at no additional cost when configuration details are provided during checkout. The product includes a 1-year in-house warranty covering repairs, replacement parts, labor, and standard shipping charges, excluding damage caused by misuse or normal operational wear and tear.
