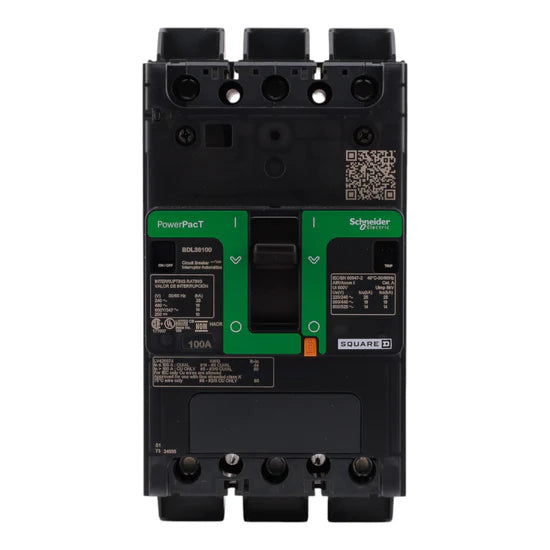

Square D PowerPacT B BDL36100 100A 3-Pole Thermal-Magnetic – DIN/Screw Mount – 600Y/347V
Couldn't load pickup availability
Ask an expert
The Square D PowerPacT BDL36100 by Schneider Electric is a 100 Amp, 3-pole thermal-magnetic molded case circuit breaker designed for commercial and industrial applications. Featuring EverLink lugs for reliable connections and an interrupt rating of 14kA at 600Y/347V AC, this breaker ensures robust protection for branch circuits. It can be mounted on a 35 × 15 mm DIN rail or secured with screws, offering installation flexibility.
Voltage and Rating:
- Current Rating: 100 Amps
- Voltage Rating: 600Y/347 Volts AC
- Interrupting Capacity: 14kA at 600Y/347V AC
Key Specifications:
- Breaker Type: Thermal-Magnetic Molded Case Circuit Breaker
- Number of Poles: 3-Pole
- Mounting Mode: Clip-on 35 × 15 mm DIN rail or screw mount
- Connection Terminals: EverLink lugs (line and load)
- Wire Size: AWG 14–3/0 (rigid/stranded), AWG 6–2/0 (fine stranded)
- Tightening Torque: 44.3 lbf.in (AWG 14–4), 79.7 lbf.in (AWG 3–3/0)
- Application: Commercial/Industrial branch circuit protection
Technical Specifications:
-
- Series: PowerPacT B
- Certifications: UL, CSA, IEC, CCC, EAC, NOM, CE marked
- Dimensions (H × W × D): 5.4 × 3.2 × 3.1 in
- Weight: 2.368 lbs
- UPC: 3606481153227
- Manufacturer: Schneider Electric
- Type Circuit Breakers
- Vendor Square D
- Brand Square D
