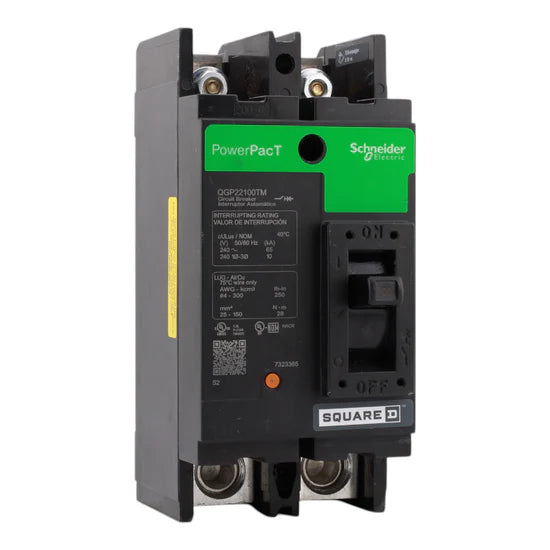

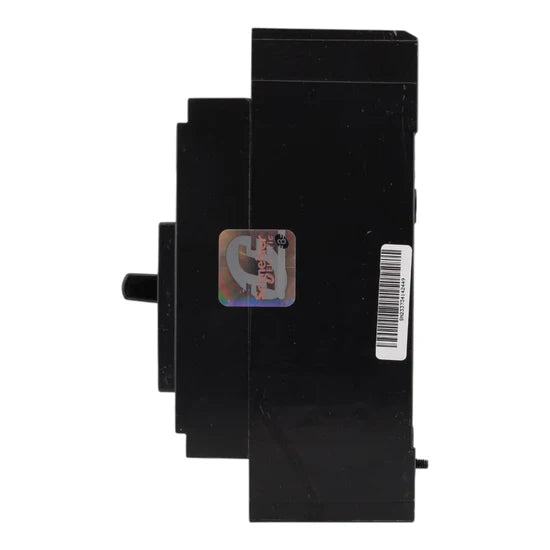

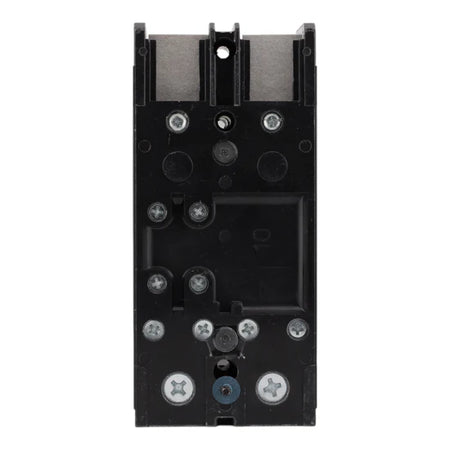

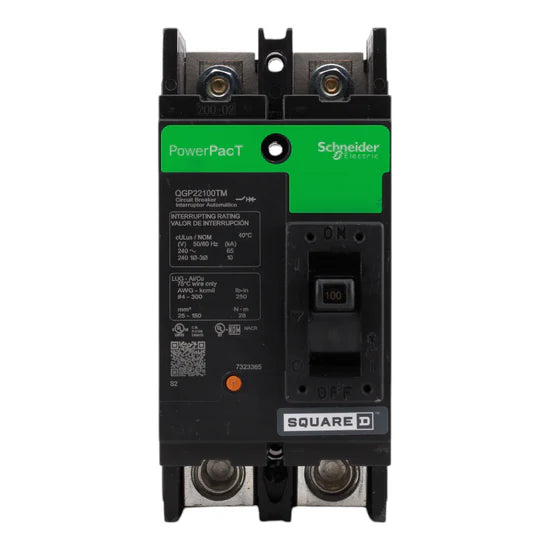

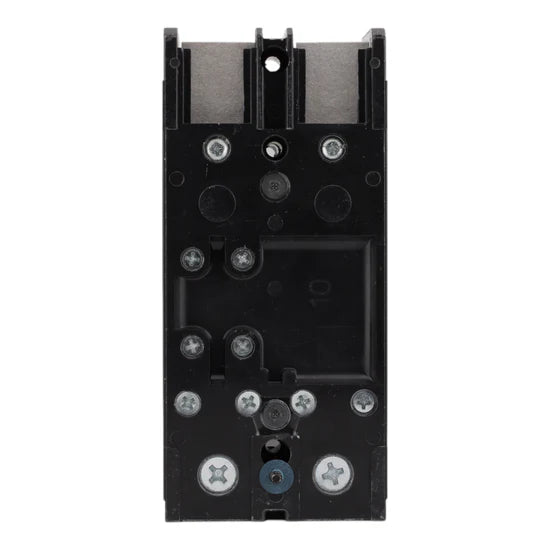

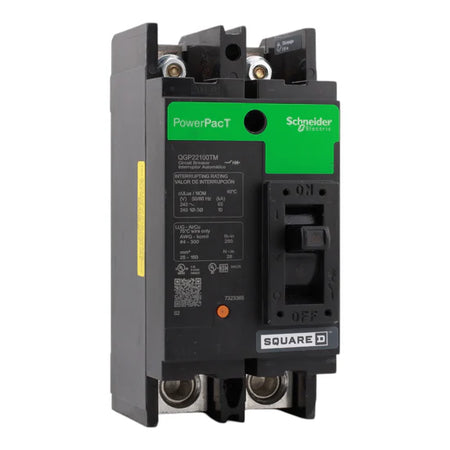

Square D PowerPacT QGP22100TM 100A 2-Pole Thermal Magnetic – Lug-In – 240V AC

The Square D PowerPacT QGP22100TM 100A 2-Pole Thermal Magnetic – Lug-In – 240V AC provides reliable 100 Amp, 2-Pole thermal magnetic protection for 240V AC circuits. Designed for unit-mount installation with lugs on the load side and terminal nuts on the line side, it delivers dependable overcurrent protection for residential, commercial, and light industrial applications, with a robust 65 kA interrupt rating.

Voltage and rating

• Current Rating: 100 Amps
• Voltage Rating: 240 Volts AC
• Interrupting Capacity: 65 kA at 208Y/120VAC and 240VAC
• Continuous Current Rating: 80%

Key Specifications

• Breaker Type: Molded Case Circuit Breaker
• Number of Poles: 2-Pole
• Breaker Technology: Thermal Magnetic

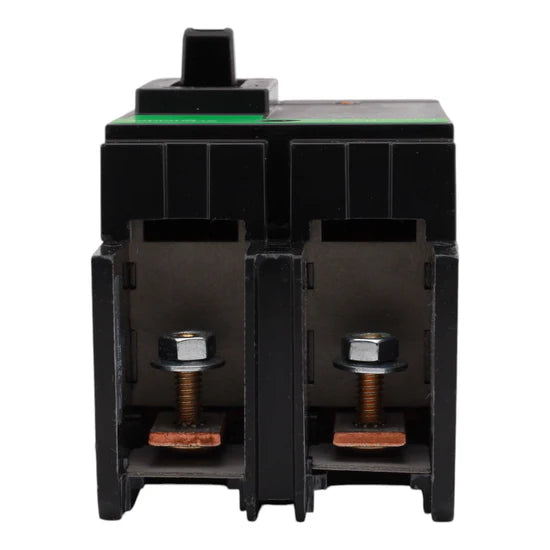

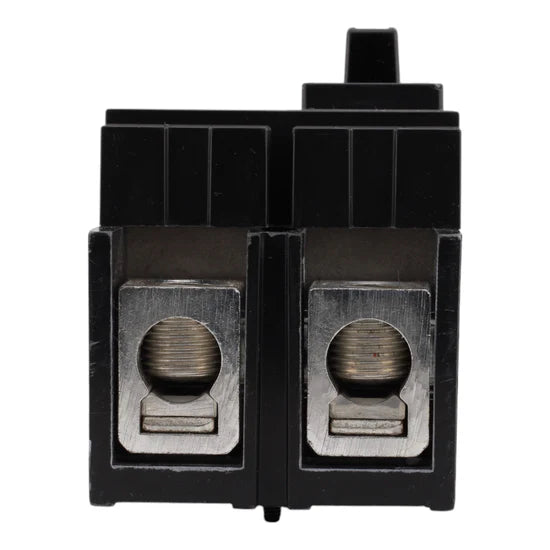

• Mounting Type: Unit Mount (Lugs on Load Side, Terminal Nuts on Line Side)
• Trip Mechanism: Integral Push-to-Trip Button
• Special Features: HACR Rated, Push-to-Trip Button
• Application: Overcurrent protection and switching on 240VAC systems

Technical Specifications

• Operating Mechanism: Thermal-magnetic

• Dimensions:

  • Height: 6.47 in

  • Width: 3 in

  • Depth: 3.93 in

• Weight: 3.241 lbs

• Certifications: UL, CSA, NOM, IEC

• Compact Design: Space-saving for easy installation

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: QGP22100TM
• UPC: 785901546085
• Applications: Residential, Commercial, and Light Industrial
