Square D PXF361400GPL 1400A 3 Pole MCCB – LSIG Electronic Trip – Padlock Attachment – Bolt On Mount – 600V

The Square D PXF361400GPL is a heavy-duty molded case circuit breaker engineered for industrial and commercial electrical distribution systems requiring advanced protection, lockout capability, and high interrupting performance. Built on the durable PXF frame platform, this breaker provides a 1400 ampere current rating at 40°C with a 3-pole configuration suitable for three-phase applications. It incorporates an electronic non-interchangeable trip unit featuring LSIG (Long-Time, Short-Time, Instantaneous, and Ground Fault) protection functions to deliver precise fault management and enhanced system coordination. Equipped with a 1600 amp sensor size, factory-installed ARP088 rating plug, and integrated padlock attachment, the PXF361400GPL ensures improved operational safety, maintenance isolation, and reliable circuit protection in demanding electrical environments.

Product Specification

• Manufacturer: Square D
• Model: PXF361400GPL
• Frame Type: PXF Frame
• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 1400 Ampere (at 40°C)
• Sensor Size: 1600 Ampere
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Trip Unit Type: Electronic Non-interchangeable
• Protection Functions: LSIG (Long-Time, Short-Time, Instantaneous & Ground Fault)
• Rating Plug: ARP088 Installed Standard
• Special Feature: Padlock Attachment Included
• Terminal Type: Without standard terminals
• Warranty: 1 Year (In-house warranty support)

Technical Specification

• Frame Style: PXF Industrial Electronic Frame
• Trip Technology: Electronic non-interchangeable trip system
• Protection Features: Adjustable LSIG protection functions
• Ground Fault Protection: Integrated ground fault sensing and interruption
• Lockout Capability: Padlock attachment for maintenance safety and lockout/tagout procedures
• Connection Type: Bolt-on mounting configuration
• Operating System: Compatible with three-phase electrical systems
• Construction Type: Heavy-duty molded case design
• Application: Industrial feeders, switchgear, and commercial power distribution systems
• Coordination Capability: Advanced selective coordination using electronic trip technology

Voltage and Ratings

• Maximum Voltage Rating: 600 VAC
• Interrupting Capacity:
  • 125 kA @ 240 VAC
  • 100 kA @ 480 VAC
  • 65 kA @ 600 VAC
• Current Rating: 1400A
• Sensor Size: 1600A
• Poles: 3 Pole
• System Type: Three-phase electrical distribution systems

Product Data

• Product Series: PXF Series
• Breaker Family: Square D Electronic MCCB
• Installation Type: Fixed bolt-on mounting
• Lug Configuration: Without standard terminals
• Trip System: Electronic LSIG protection
• Rating Plug Type: ARP088 standard installed
• Safety Feature: Factory-installed padlock attachment
• Application Category: Industrial and commercial circuit protection
• Protection Class: Advanced electronic trip with ground fault protection
• Warranty Coverage: Includes repair, parts, labor, and standard shipping

Important Note

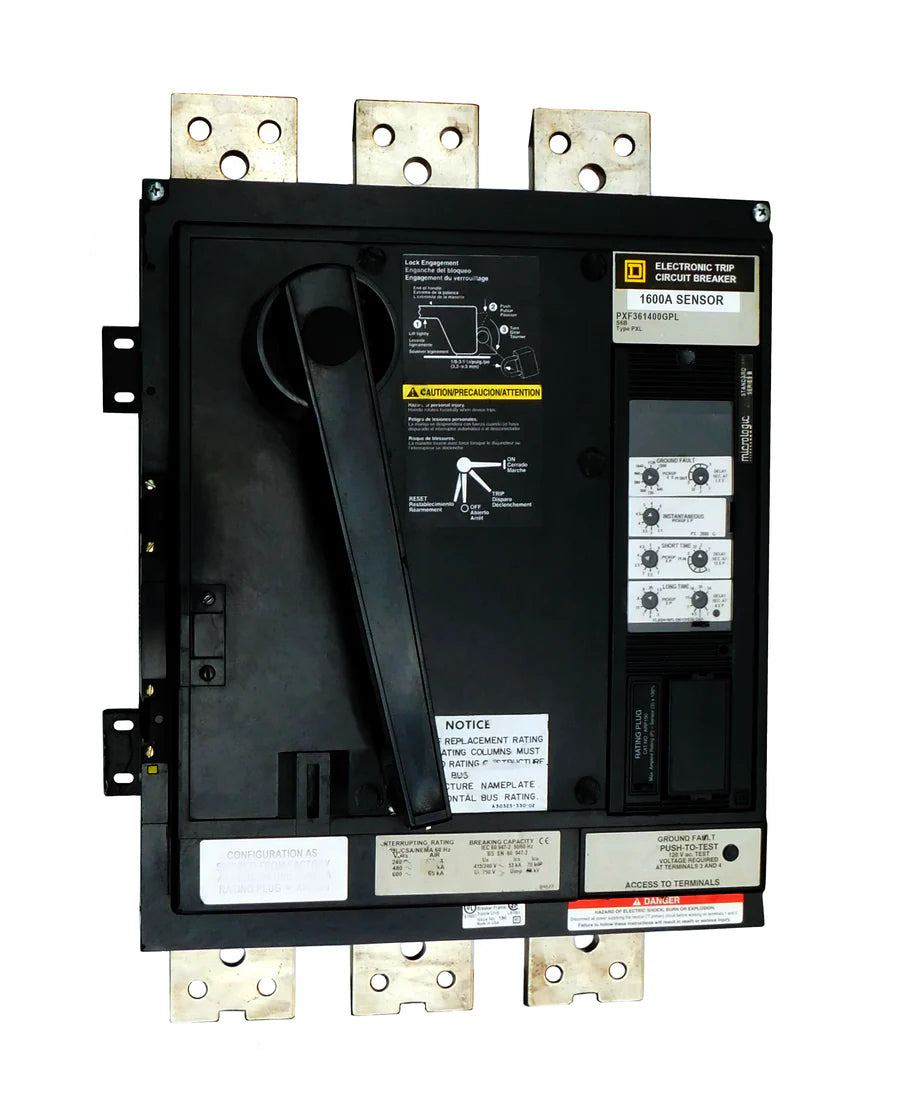

This product image represents a base model and is intended for identification purposes only. Accessories purchased together with the breaker can be installed at no additional cost when configuration details are provided during checkout. The product includes a 1-year in-house warranty covering repair, parts, labor, and standard shipping charges, excluding damage caused by misuse or normal operational wear and tear.
