Square D PXF362000GPL 2000A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC – LSIG – Padlock Attachment

The Square D PXF362000GPL is a high-performance molded case circuit breaker designed for large-scale electrical distribution systems requiring maximum protection, operational security, and advanced fault detection. Built on the PXF frame platform, it integrates a 2000 amp sensor size with an electronic non-interchangeable trip unit featuring LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) protection functions. Rated at 2000 amperes at 40°C, this breaker is engineered for heavy industrial environments where high fault currents and continuous loads demand reliable interruption capability. The integrated padlock attachment enhances operational safety by enabling lockout/tagout control, preventing unauthorized operation during maintenance or servicing.

Product Specifications

• Manufacturer: Square D
• Model Number: PXF362000GPL
• Product Type: Molded Case Circuit Breaker
• Frame Style: PXF Frame
• Trip Unit Type: Electronic Non-Interchangeable
• Trip Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
• Sensor Size: 2000 Amp
• Rated Current: 2000 Ampere
• Number of Poles: 3 Pole
• Mounting Type: Bolt-On
• Standard Lug Type: Without Terminals Standard
• Rating Plug Installed: ARP100
• Padlock Attachment: Included
• Operating Temperature Rating: 40°C
• Warranty: One Year

Technical Specifications

• LSIG electronic trip protection for complete fault coverage including ground fault
• Fixed non-interchangeable trip unit for consistent protection performance
• Padlockable handle improves safety compliance during maintenance
• High interrupting capacity suitable for industrial-grade power systems
• Molded case design provides mechanical durability and thermal stability
• Bolt-on mounting ensures secure installation in switchgear assemblies
• Designed for critical infrastructure and heavy electrical load environments

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Interrupting Rating at 240 VAC: 125 kA
• Interrupting Rating at 480 VAC: 100 kA
• Interrupting Rating at 600 VAC: 65 kA
• Current Rating: 2000 Ampere
• Operating Temperature: 40°C

Product Data

• Frame Series: PXF
• Pole Configuration: 3 Pole
• Sensor Rating: 2000 Amp
• Trip Unit: Electronic LSIG
• Rating Plug: ARP100
• Mounting Type: Bolt-On
• Locking Feature: Padlock Attachment Included
• Terminal Configuration: Without Terminals Standard
• Application: Industrial Power Distribution / Switchgear Protection

Important Note

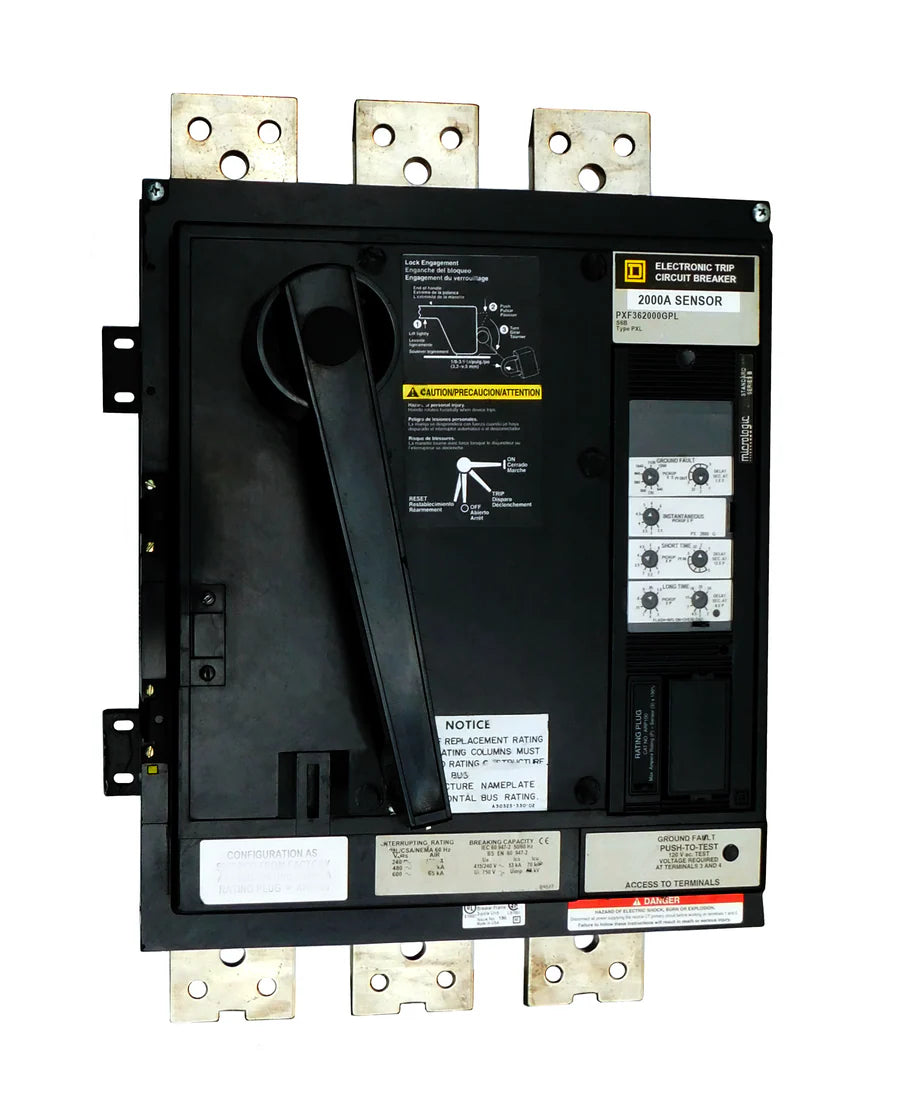

This product image represents a base model and is provided for identification purposes only. Accessories ordered with the breaker can be installed to match your required configuration at no additional cost. The one-year warranty covers standard shipping, repair services, replacement parts, and labor required for recertification under normal operating conditions. Warranty does not cover damage resulting from misuse, improper installation, or normal wear and tear.
