Square D PXF362000GPL 2000A 3-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600VAC – LSIG – Padlock Attachment

The Square D PXF362000GPL is a high-capacity molded case circuit breaker engineered for demanding industrial and commercial power distribution systems requiring full-spectrum protection and enhanced operational security. Built on the PXF frame platform, it features a 2000 amp sensor size and an electronic non-interchangeable trip unit with LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) protection functions for comprehensive fault detection and system reliability. Rated at 2000 amperes at 40°C, this breaker is designed for heavy-duty applications where stable performance under high electrical loads is essential. The integrated padlock attachment provides lockout capability, improving safety during maintenance and servicing by preventing unauthorized operation.

Product Specifications

• Manufacturer: Square D
• Model Number: PXF362000GPL
• Product Type: Molded Case Circuit Breaker
• Frame Style: PXF Frame
• Trip Unit Type: Electronic Non-Interchangeable
• Trip Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
• Sensor Size: 2000 Amp
• Rated Current: 2000 Ampere
• Number of Poles: 3 Pole
• Mounting Type: Bolt-On
• Standard Lug Type: Without Terminals Standard
• Rating Plug Installed: ARP100
• Padlock Attachment: Included
• Operating Temperature Rating: 40°C
• Warranty: One Year

Technical Specifications

• LSIG electronic trip system for full protection including ground fault
• Fixed configuration trip unit for consistent protection settings
• High interrupting capacity suitable for industrial-grade fault conditions
• Padlockable handle for enhanced lockout/tagout safety compliance
• Durable molded case construction for mechanical and thermal reliability
• Bolt-on mounting for secure installation in switchgear systems
• Designed for critical infrastructure and high-load electrical networks

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Interrupting Rating at 240 VAC: 125 kA
• Interrupting Rating at 480 VAC: 100 kA
• Interrupting Rating at 600 VAC: 65 kA
• Current Rating: 2000 Ampere
• Operating Temperature: 40°C

Product Data

• Frame Series: PXF
• Pole Configuration: 3 Pole
• Sensor Rating: 2000 Amp
• Trip Unit: Electronic LSIG
• Rating Plug: ARP100
• Mounting Type: Bolt-On
• Locking Feature: Padlock Attachment Included
• Terminal Configuration: Without Terminals Standard
• Application: Industrial Power Distribution / Switchgear Protection

Important Note

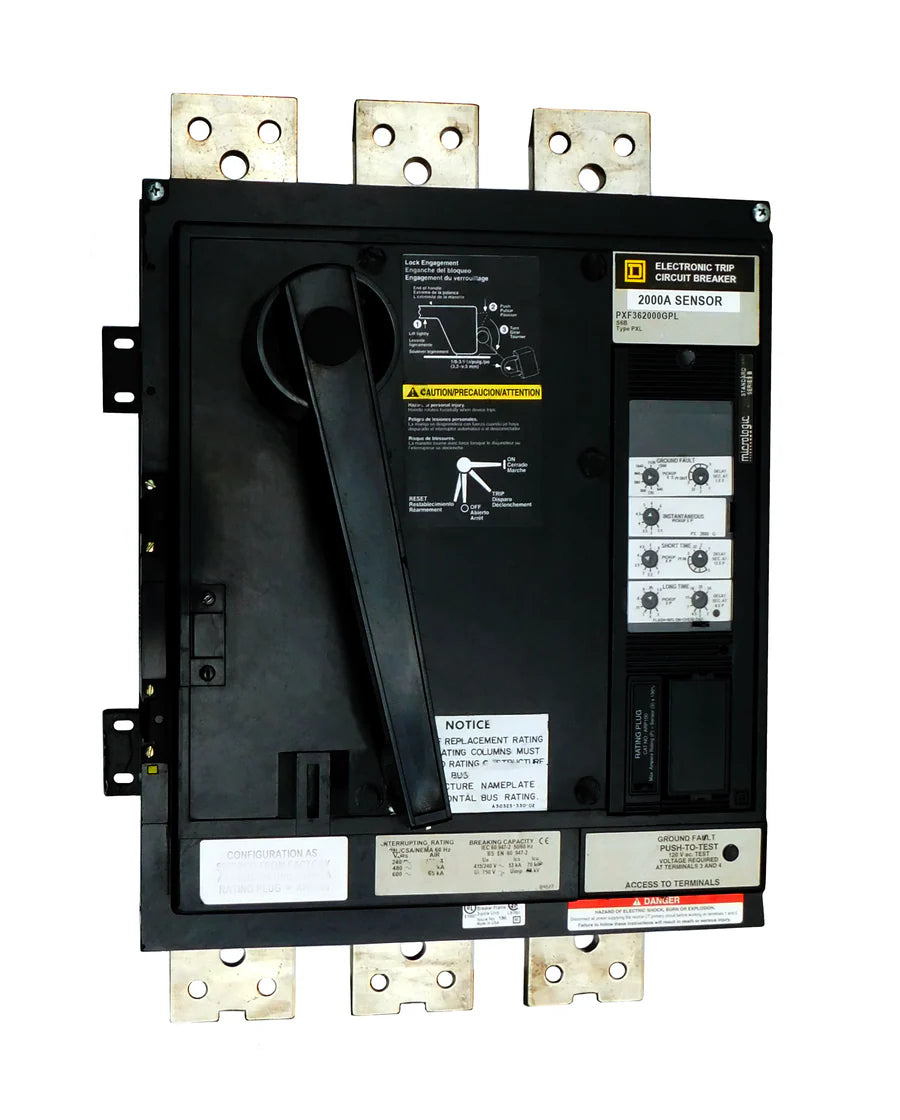

This product image represents a base model and is provided for identification purposes only. Accessories ordered with the breaker can be installed according to your required configuration at no additional cost. The included one-year warranty covers standard shipping, repair work, replacement parts, and labor required for recertification under normal operating conditions. Warranty excludes damage caused by misuse, improper installation, or normal wear and tear.
