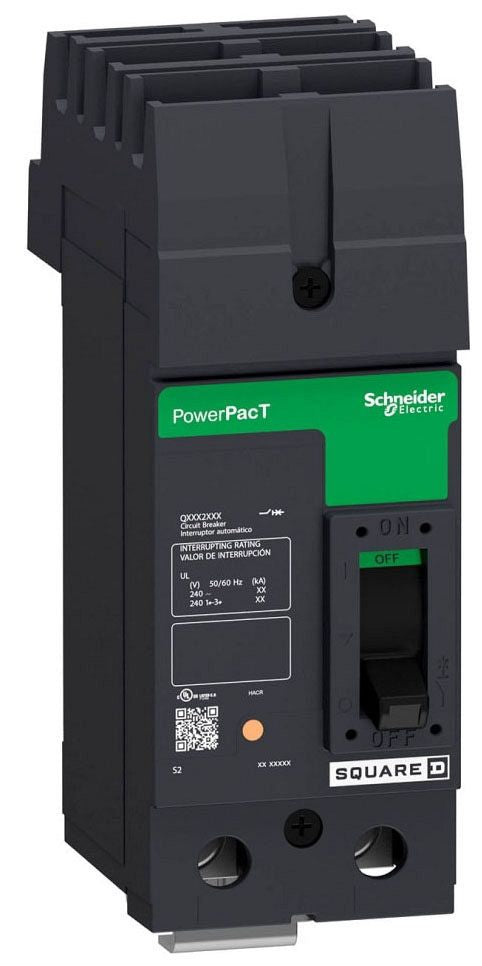

Square D QDA221752 PowerPact Q Molded Case Circuit Breaker – 175A – 2 Pole – Thermal Magnetic – I-Line Plug-On – 240VAC – 25kA

The Square D QDA221752 is a PowerPact Q series molded case circuit breaker designed for I-Line panelboards and switchboards in power distribution applications. It provides reliable overload and short-circuit protection with a 175A current rating and a 25kA interrupting capacity at 240VAC. Built on a compact Q-frame design, it uses a plug-on I-Line mounting system for fast installation and dependable performance in commercial and industrial electrical systems.

Electrical Ratings

• Current Rating: 175 A
• Voltage Rating: 240 VAC, 50/60 Hz
• Number of Poles: 2 Pole
• Phase Connection: AC
• Interrupting Rating:
  • 25 kA at 240 VAC (UL/CSA)
  • 10 kA at 240 VAC (IEC)
• Trip Setting: 1200–2400 A
• Frequency: 50/60 Hz
• Continuous Current Rating: 80%

Protection and Function

• Trip Technology: Thermal Magnetic
• Protection Type:
  • Overload Protection
  • Short-Circuit Protection
• Non-interchangeable trip unit
• Manual operating mechanism
• Designed for panelboard and switchboard protection

Configuration and Function

• Series: PowerPact Q
• Model: QD
• Catalog Number: QDA221752
• Installation Type: Plug-On (I-Line)
• Application: Power Distribution
• Used On:
  • Class 650 I-Line Panelboards
  • Class 734 I-Line Panelboards
  • Class 820 I-Line Switchboards
• Sub-Category: Panelboard Circuit Breaker

Mechanical and Physical Characteristics

• Frame Type: Q
• Dimensions: 3 in (W) × 3.93 in (D) × 6.47 in (H)
• Terminal Wire Size: 4 AWG to 300 kcmil Copper/Aluminum
• Operating Ambient Temperature: 104°F to 158°F (40°C to 70°C)
• Compact molded case construction
• Industrial-grade durability

Standards and Certifications

• UL Listed
• CSA Certified
• IEC Compliant
• NOM Compliant
• Manufacturer: Schneider Electric / Square D
• Brand: PowerPact Q / I-Line
• UNSPSC: 39121601
• RoHS / REACH Compliant
