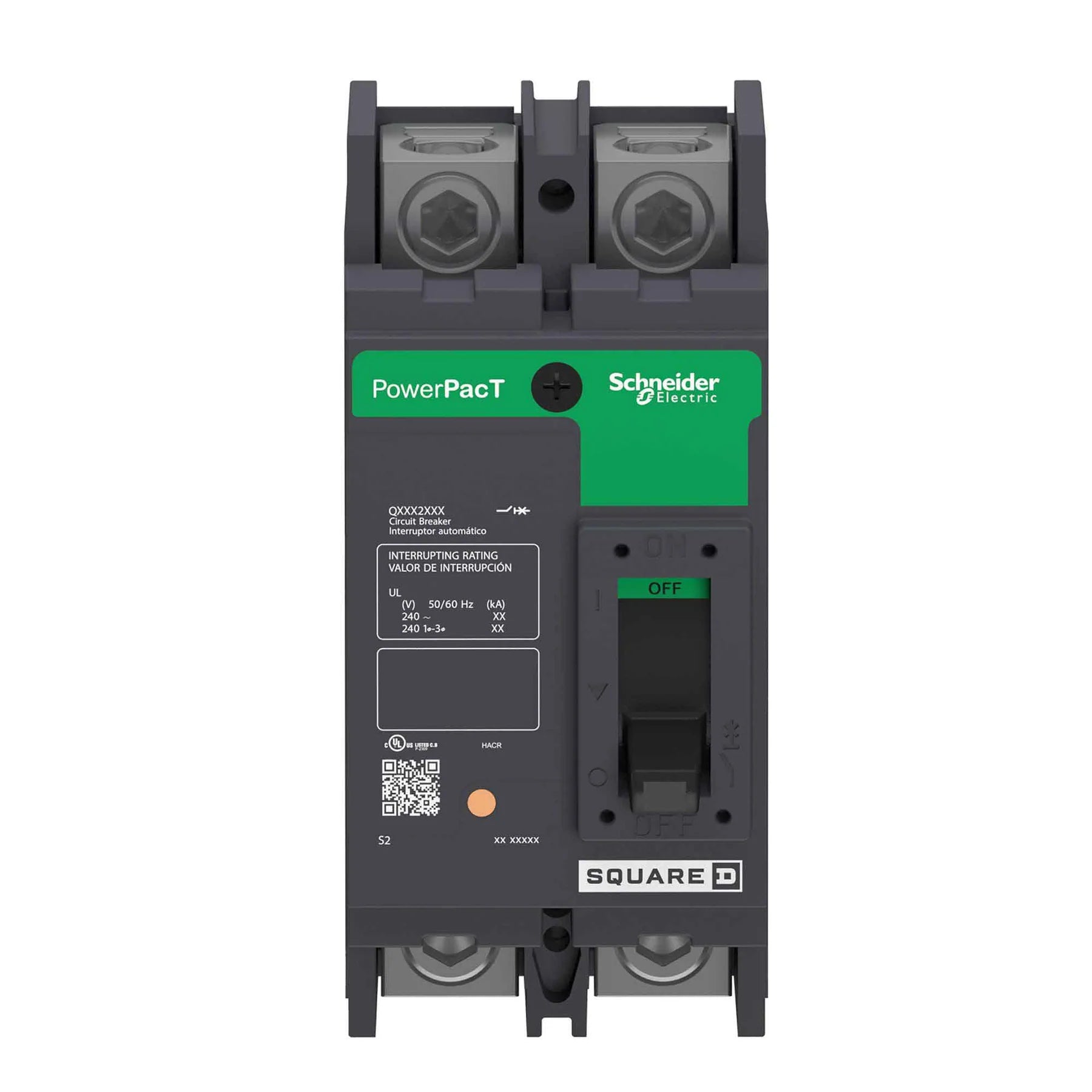

Square D QDP22200TM Meter-Pak Circuit Breaker – 200A – 2 Pole – 25kAIC – Thermal Magnetic – Q-Frame – 240VAC – Main Breaker

The Square D QDP22200TM is a molded case circuit breaker designed for use in metering and service equipment applications. It belongs to the Meter-Pak and PowerPact Q-family systems and provides reliable main circuit protection using thermal magnetic long-time and instantaneous (LI) trip functions. It is engineered for integration in Square D metering assemblies and distribution equipment.

Electrical Ratings

• Current Rating: 200 A
• Voltage Rating: 240 VAC
• Phase: 1 Phase (2-pole configuration)
• Interrupting Rating: 25 kA
• Application: Metering and service entrance equipment

Protection and Function

• Device Type: Molded case circuit breaker (main breaker type)
• Trip Technology: Thermal magnetic
• Trip Function: Long-time and instantaneous (LI)
• Protection Type: Overload and short-circuit protection
• Application Role: Main protective device for metering equipment

Configuration and Function

• Series: Meter-Pak / PowerPact QDP
• Model: QDP22200TM
• Frame Type: Q-frame
• Mounting Style: Bottom-of-panel / metering equipment configuration
• Connection Type: Stud line terminal / lug load terminal
• Used With: Square D Meter-Pak systems
• Sub-category: Main circuit breaker / standard small frame breaker
• Application: Electrical metering and service distribution

Mechanical and Physical Characteristics

• Compact molded case design
• Wire Range: 4 AWG to 300 kcmil (Copper/Aluminum)
• Terminal Type: Stud line and lug load terminals
• Designed for integration into metering equipment assemblies
• Rugged construction for service entrance applications
• Q-frame standardized dimensions for panel compatibility

Standards and Certifications

• UL Listed
• CSA Certified
• CE marked
• Industry compliant for metering equipment applications
